05/11 MN03407008Z-DE/EN
2
mm
1 x (0.5 to 2.5)
2 x (0.5 to 1.0)
2 x (1.0 to 1.5)

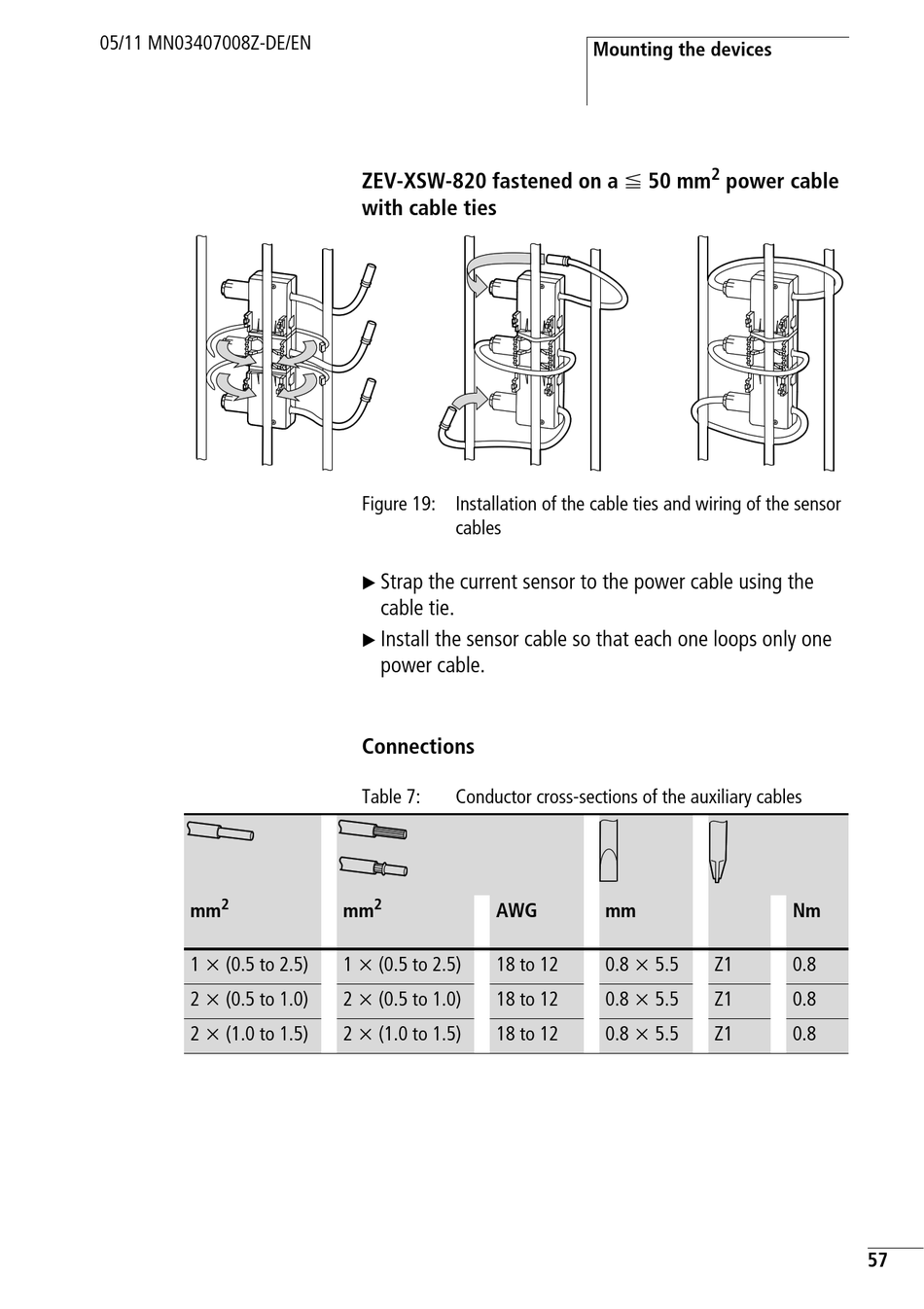

ZEV-XSW-820 fastened on a F 50 mm
with cable ties
Figure 19: Installation of the cable ties and wiring of the sensor
cables
Strap the current sensor to the power cable using the
X
cable tie.
Install the sensor cable so that each one loops only one
X
power cable.

Connections

Table 7: Conductor cross-sections of the auxiliary cables
2
mm AWG
1 x (0.5 to 2.5) 18 to 12
2 x (0.5 to 1.0) 18 to 12
2 x (1.0 to 1.5) 18 to 12
Mounting the devices
2
power cable
mm
0.8 x 5.5 Z1
0.8 x 5.5 Z1
0.8 x 5.5 Z1
Nm
0.8
0.8
0.8
57
