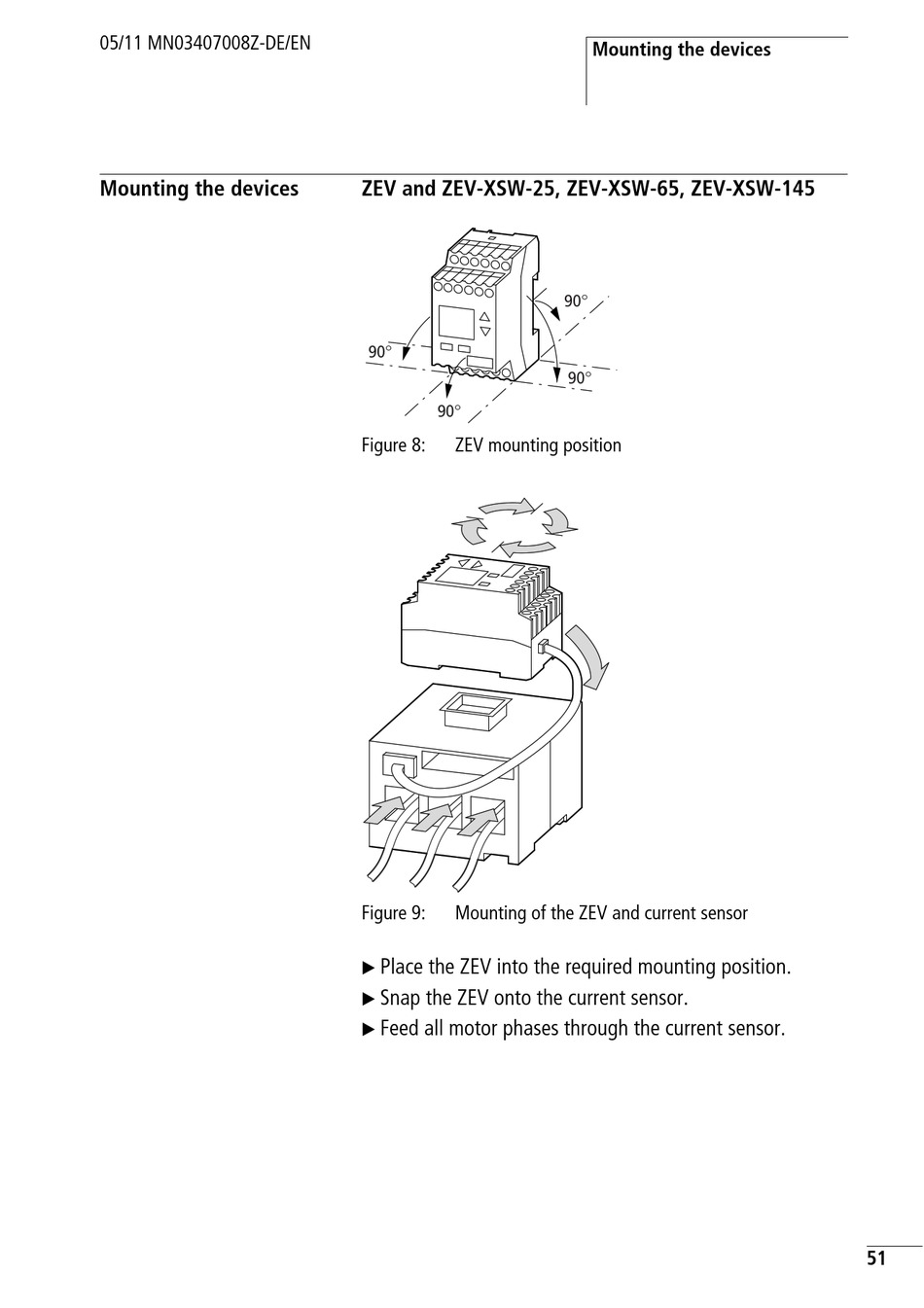

Mounting the devices
ZEV and ZEV-XSW-25, ZEV-XSW-65, ZEV-XSW-145
90°
90°
Figure 8:
ZEV mounting position
Figure 9:
Mounting of the ZEV and current sensor
Place the ZEV into the required mounting position.
X
Snap the ZEV onto the current sensor.
X
Feed all motor phases through the current sensor.
X
Mounting the devices
90°
90°
