Installation
L1
L2
L3
N
PE
Q11
M
3~
50
Fern-Reset
C1 C2
Reset
I µP
T1
T2
>

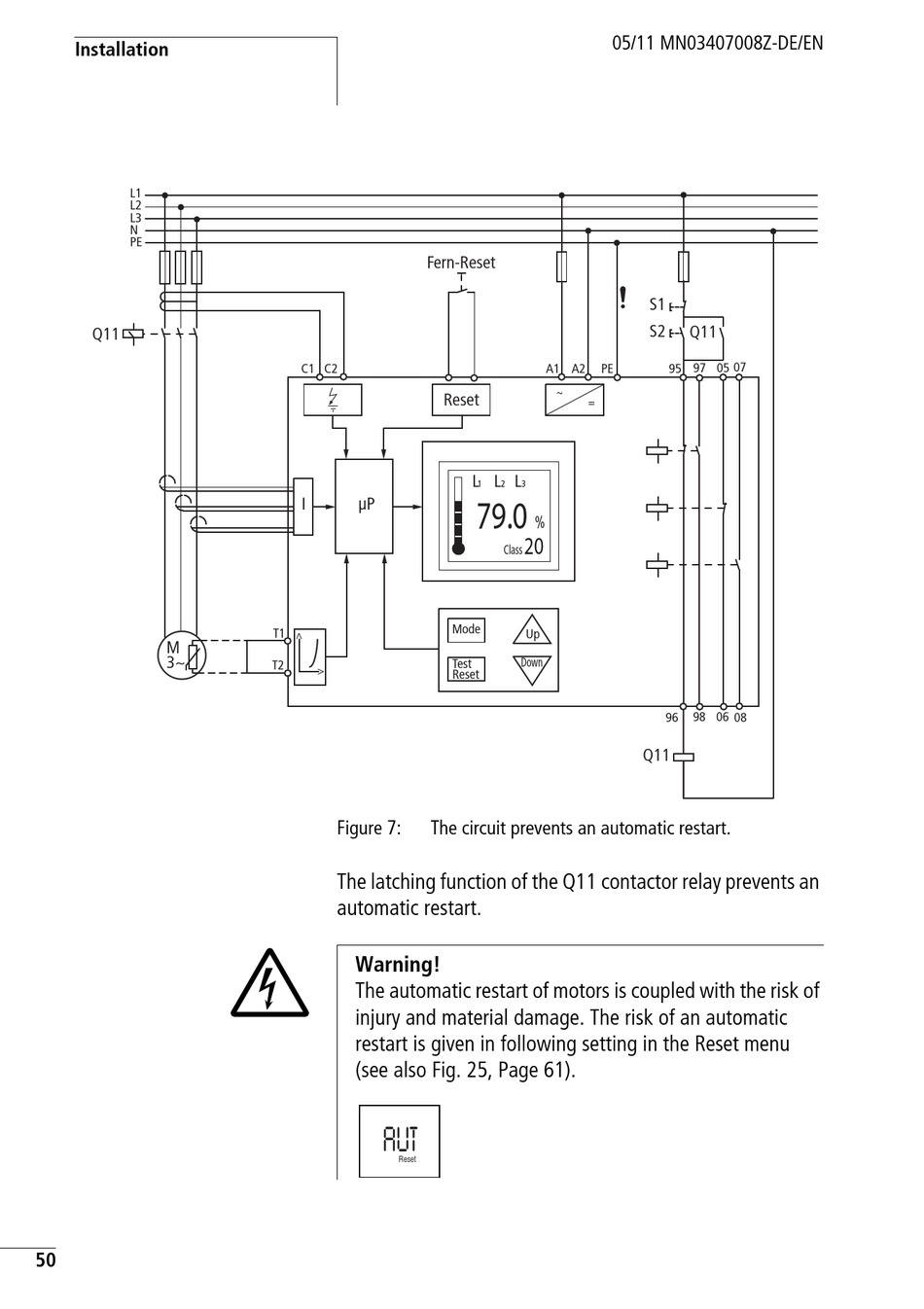

Figure 7: The circuit prevents an automatic restart.
The latching function of the Q11 contactor relay prevents an
automatic restart.
Warning!
The automatic restart of motors is coupled with the risk of
injury and material damage. The risk of an automatic
restart is given in following setting in the Reset menu
(see also Fig. 25, Page 61).
AUT
Reset
05/11 MN03407008Z-DE/EN
