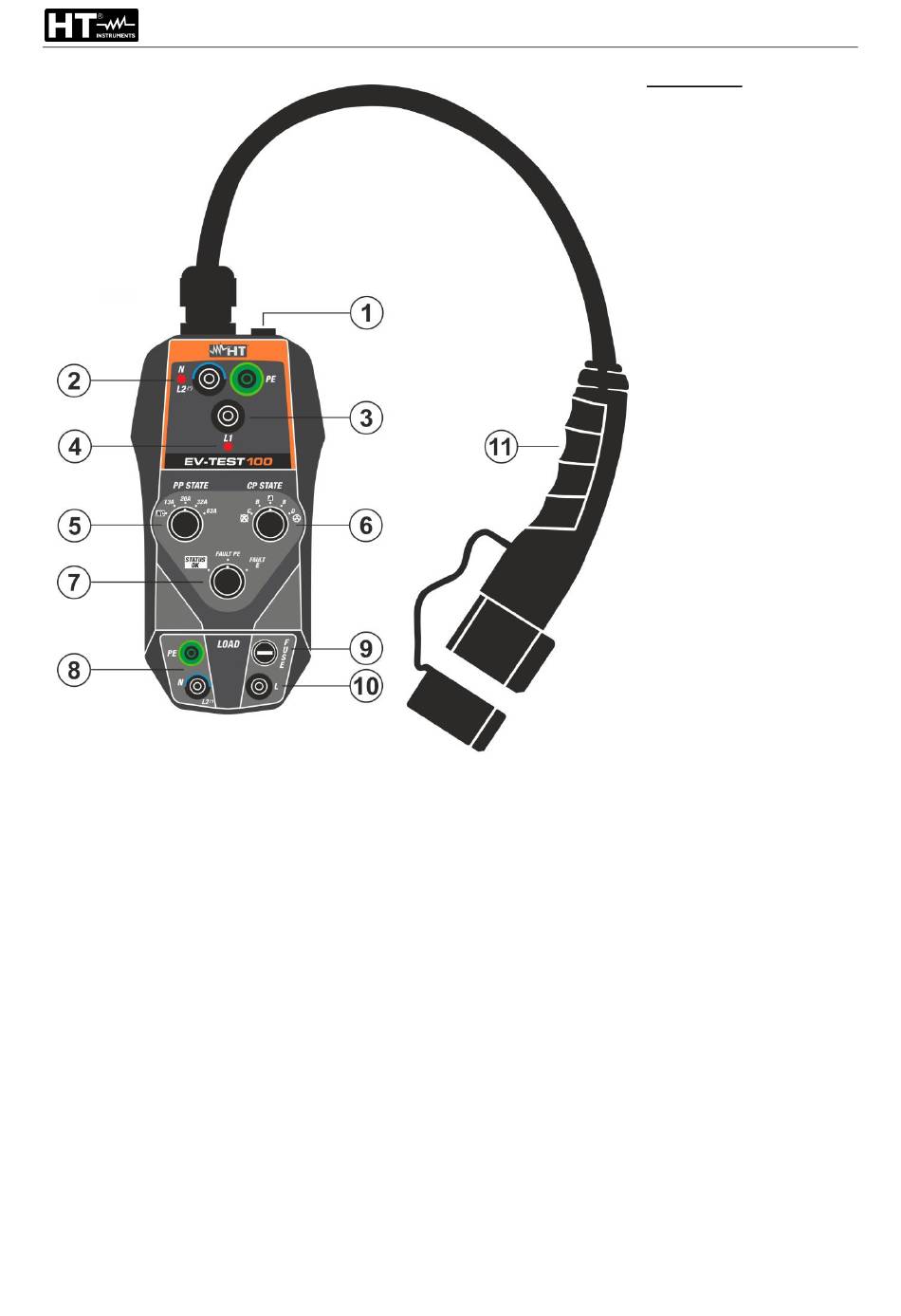

Fig. 2: Description of the adapter with Type 1 plug
EN - 6
EV-TEST100
CAPTION:
1.
Input for
connection to HT
instrument via
C100EV cable
2.
N/L2, PE terminals
for connection to
HT instrument
3.
Terminals L1, L2,
L3 for connection
to HT instrument
4.
LED for L1 phase
presence detection
5.
PP state selector
6.
CP state selector
7.
FAULT PE, FAULT
E function selector
8.
N/L2, PE terminals
for external load
connection
9.
LOAD section
protection fuse
10.
Terminal L for
external load
connection
11.
Type 1 plug cable
for connection to
EVSE system
