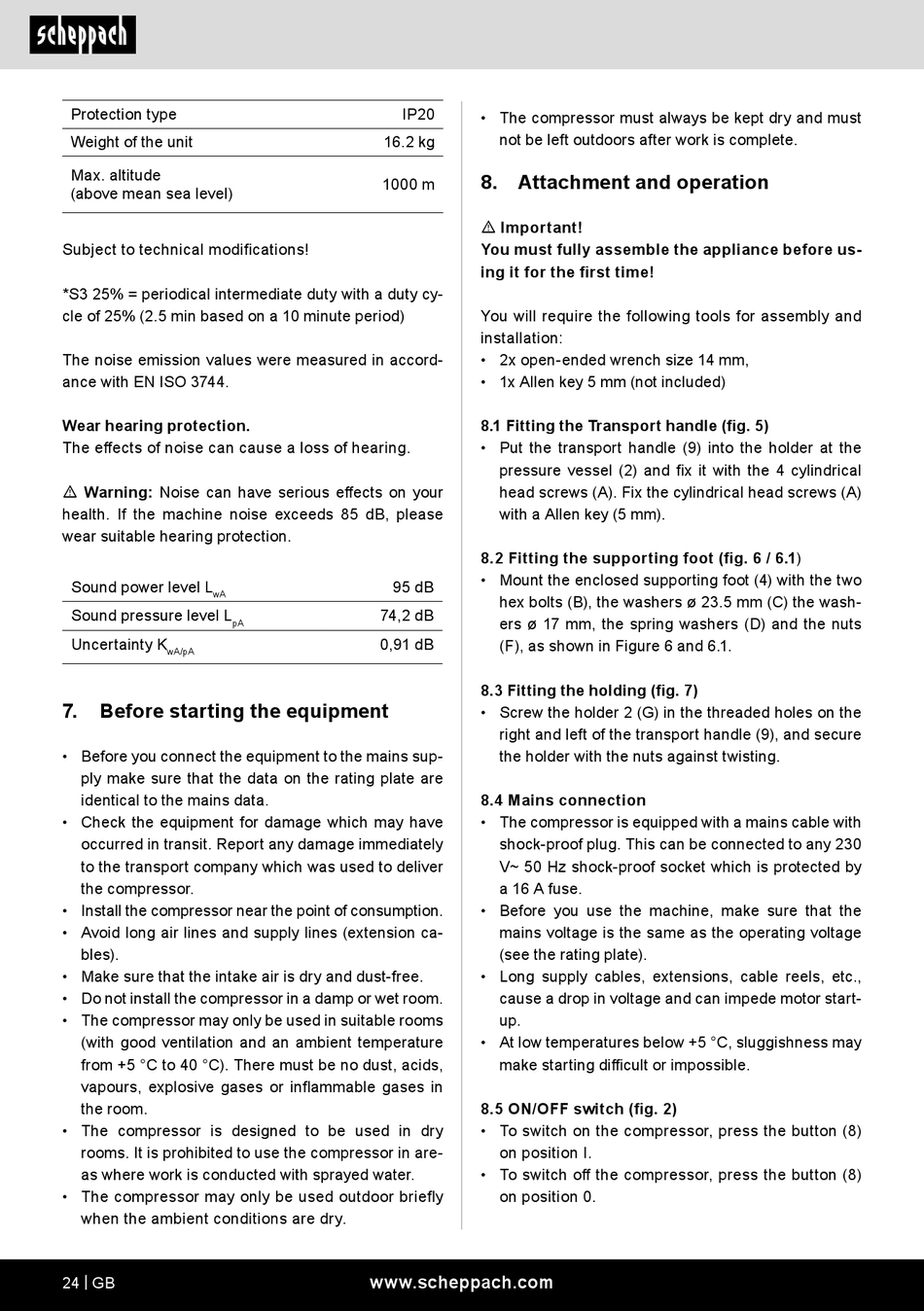

Scheppach HC24V Original Bedienungsanleitung Seite 24

Protection type
Weight of the unit
Max. altitude
(above mean sea level)
Subject to technical modifications!
*S3 25% = periodical intermediate duty with a duty cy-
cle of 25% (2.5 min based on a 10 minute period)
The noise emission values were measured in accord-
ance with EN ISO 3744.
Wear hearing protection.
The effects of noise can cause a loss of hearing.
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Sound power level L
wA
Sound pressure level L
pA
Uncertainty K
wA/pA
7. Before starting the equipment
• Before you connect the equipment to the mains sup-
ply make sure that the data on the rating plate are
identical to the mains data.
• Check the equipment for damage which may have
occurred in transit. Report any damage immediately
to the transport company which was used to deliver
the compressor.
• Install the compressor near the point of consumption.
• Avoid long air lines and supply lines (extension ca-
bles).
• Make sure that the intake air is dry and dust-free.
• Do not install the compressor in a damp or wet room.
• The compressor may only be used in suitable rooms
(with good ventilation and an ambient temperature
from +5 °C to 40 °C). There must be no dust, acids,
vapours, explosive gases or inflammable gases in
the room.
• The compressor is designed to be used in dry
rooms. It is prohibited to use the compressor in are-
as where work is conducted with sprayed water.
• The compressor may only be used outdoor briefly
when the ambient conditions are dry.
24 | GB
IP20
• The compressor must always be kept dry and must
not be left outdoors after work is complete.
16.2 kg
8. Attachment and operation
1000 m
m Important!
You must fully assemble the appliance before us-
ing it for the first time!
You will require the following tools for assembly and
installation:
• 2x open-ended wrench size 14 mm,
• 1x Allen key 5 mm (not included)
8.1 Fitting the Transport handle (fig. 5)
• Put the transport handle (9) into the holder at the
pressure vessel (2) and fix it with the 4 cylindrical
head screws (A). Fix the cylindrical head screws (A)
with a Allen key (5 mm).
8.2 Fitting the supporting foot (fig. 6 / 6.1)
• Mount the enclosed supporting foot (4) with the two
95 dB
hex bolts (B), the washers ø 23.5 mm (C) the wash-
74,2 dB
ers ø 17 mm, the spring washers (D) and the nuts
0,91 dB
(F), as shown in Figure 6 and 6.1.
8.3 Fitting the holding (fig. 7)
• Screw the holder 2 (G) in the threaded holes on the
right and left of the transport handle (9), and secure
the holder with the nuts against twisting.
8.4 Mains connection
• The compressor is equipped with a mains cable with
shock-proof plug. This can be connected to any 230
V~ 50 Hz shock-proof socket which is protected by
a 16 A fuse.
• Before you use the machine, make sure that the
mains voltage is the same as the operating voltage
(see the rating plate).
• Long supply cables, extensions, cable reels, etc.,
cause a drop in voltage and can impede motor start-
up.
• At low temperatures below +5 °C, sluggishness may
make starting difficult or impossible.
8.5 ON/OFF switch (fig. 2)
• To switch on the compressor, press the button (8)
on position I.
• To switch off the compressor, press the button (8)
on position 0.
