1
4
2
5
7
7
3
6

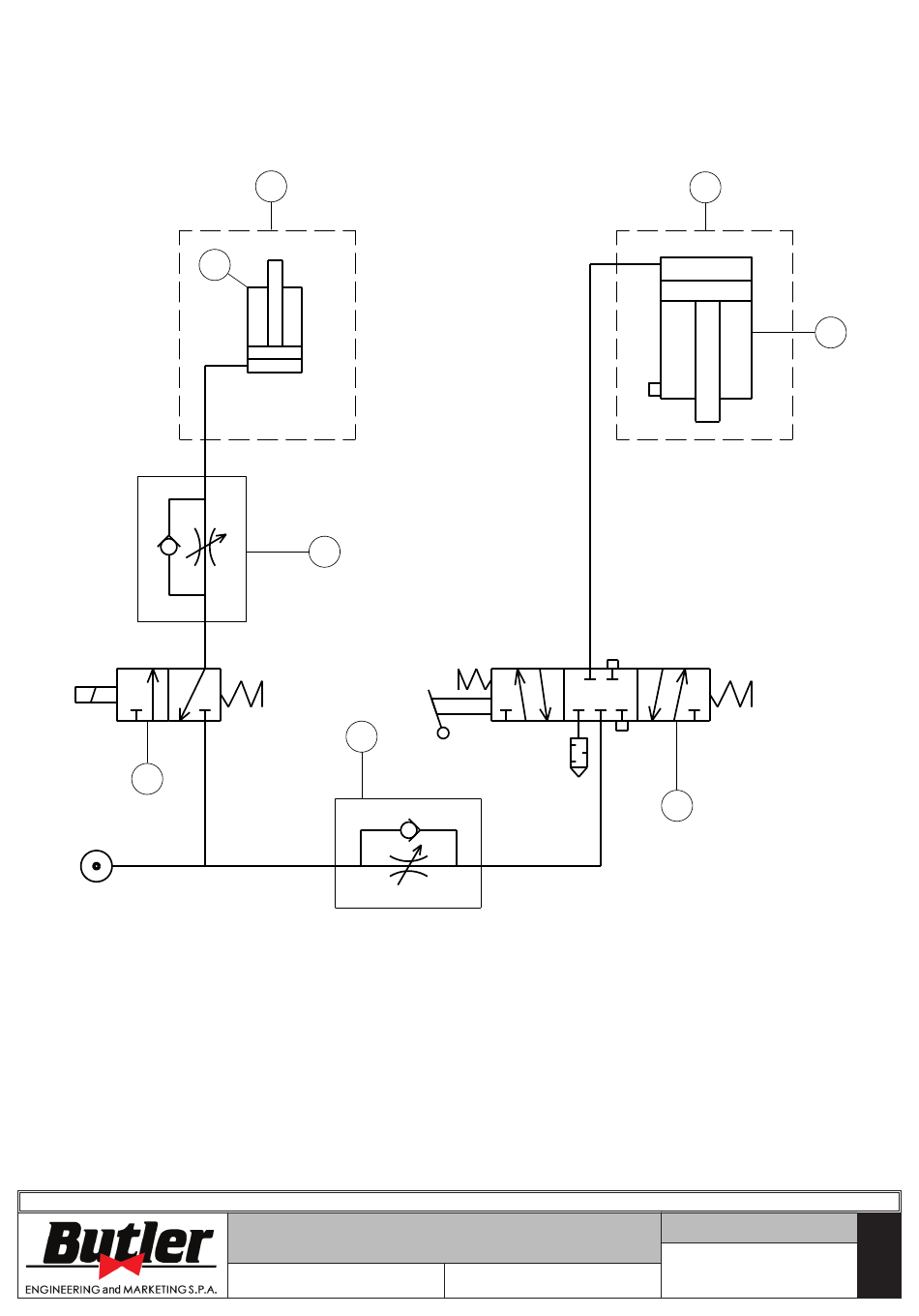

LEGENDE
1 – Pneumatische Bremse
2 – Zylinder für Bremsbetrieb
3 – Magnetventil pneumatischen Bremse EV-B 3/2 NG
4 – Hubvorrichtung
5 – Zylinder für Hebersbetrieb
6 – Verteiler 5/3 GZ Hebel
7 – Pneumatischer unidirektionaler Minderer
LIBRAK280RTLC
1294-M017-03
PNEUMATISCHES
ANSCHLUSS-SCHEMA
DE
Seite 70 von 70
129405020
Tafel N°B - Rev. 0
