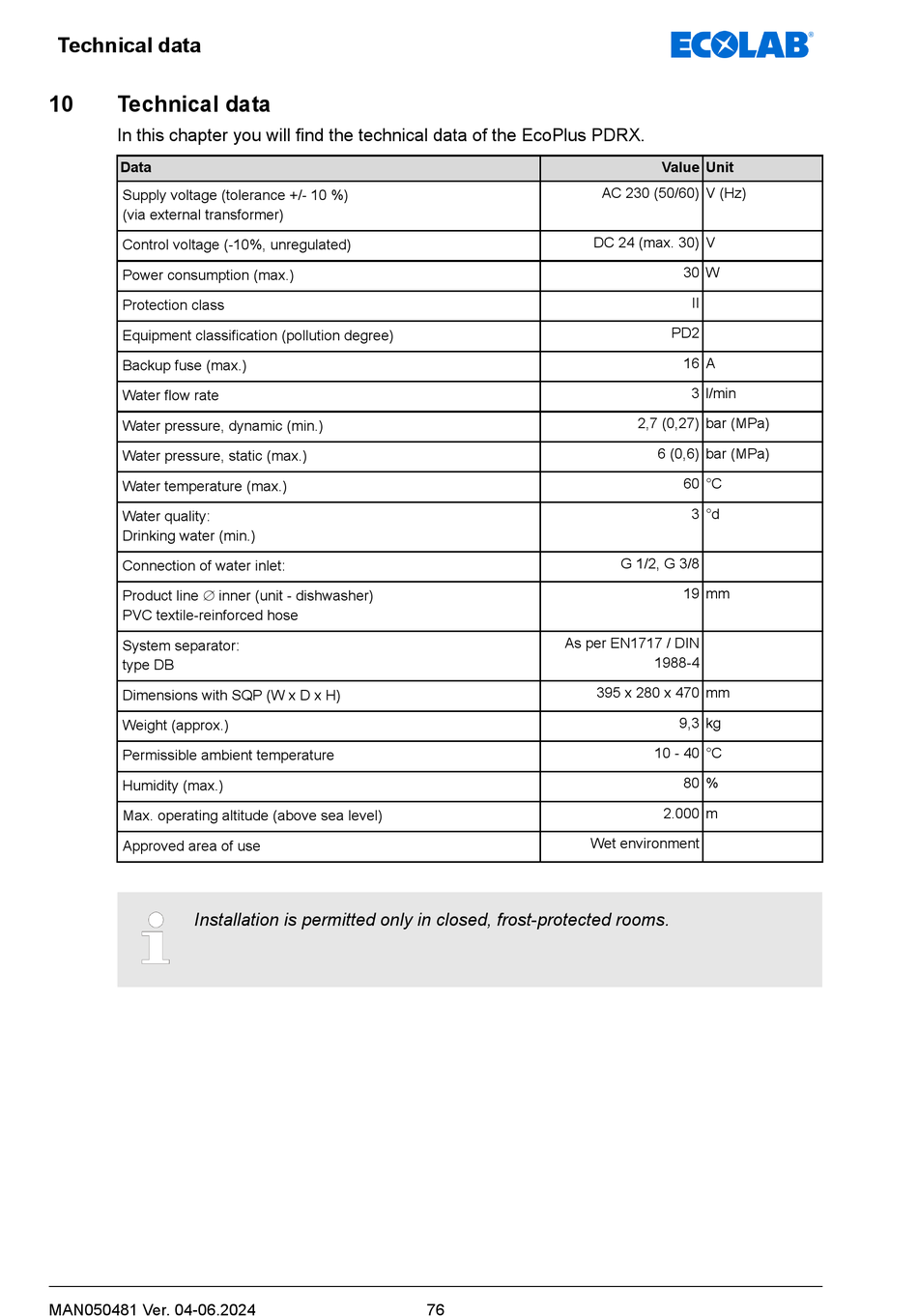

Technical data
10
Technical data
In this chapter you will find the technical data of the EcoPlus PDRX.
Data
Supply voltage (tolerance +/- 10 %)
(via external transformer)
Control voltage (-10%, unregulated)
Power consumption (max.)
Protection class
Equipment classification (pollution degree)
Backup fuse (max.)
Water flow rate
Water pressure, dynamic (min.)
Water pressure, static (max.)
Water temperature (max.)
Water quality:
Drinking water (min.)
Connection of water inlet:
Product line Æ inner (unit - dishwasher)
PVC textile-reinforced hose
System separator:
type DB
Dimensions with SQP (W x D x H)
Weight (approx.)
Permissible ambient temperature
Humidity (max.)
Max. operating altitude (above sea level)
Approved area of use
Installation is permitted only in closed, frost-protected rooms.
MAN050481 Ver. 04-06.2024
DC 24 (max. 30) V
As per EN1717 / DIN
395 x 280 x 470 mm
Wet environment
76
Value Unit
AC 230 (50/60) V (Hz)
30 W
II
PD2
16 A
3 l/min
2,7 (0,27) bar (MPa)
6 (0,6) bar (MPa)
60 °C
3 °d
G 1/2, G 3/8
19 mm
1988-4
9,3 kg
10 - 40 °C
80 %
2.000 m
