5

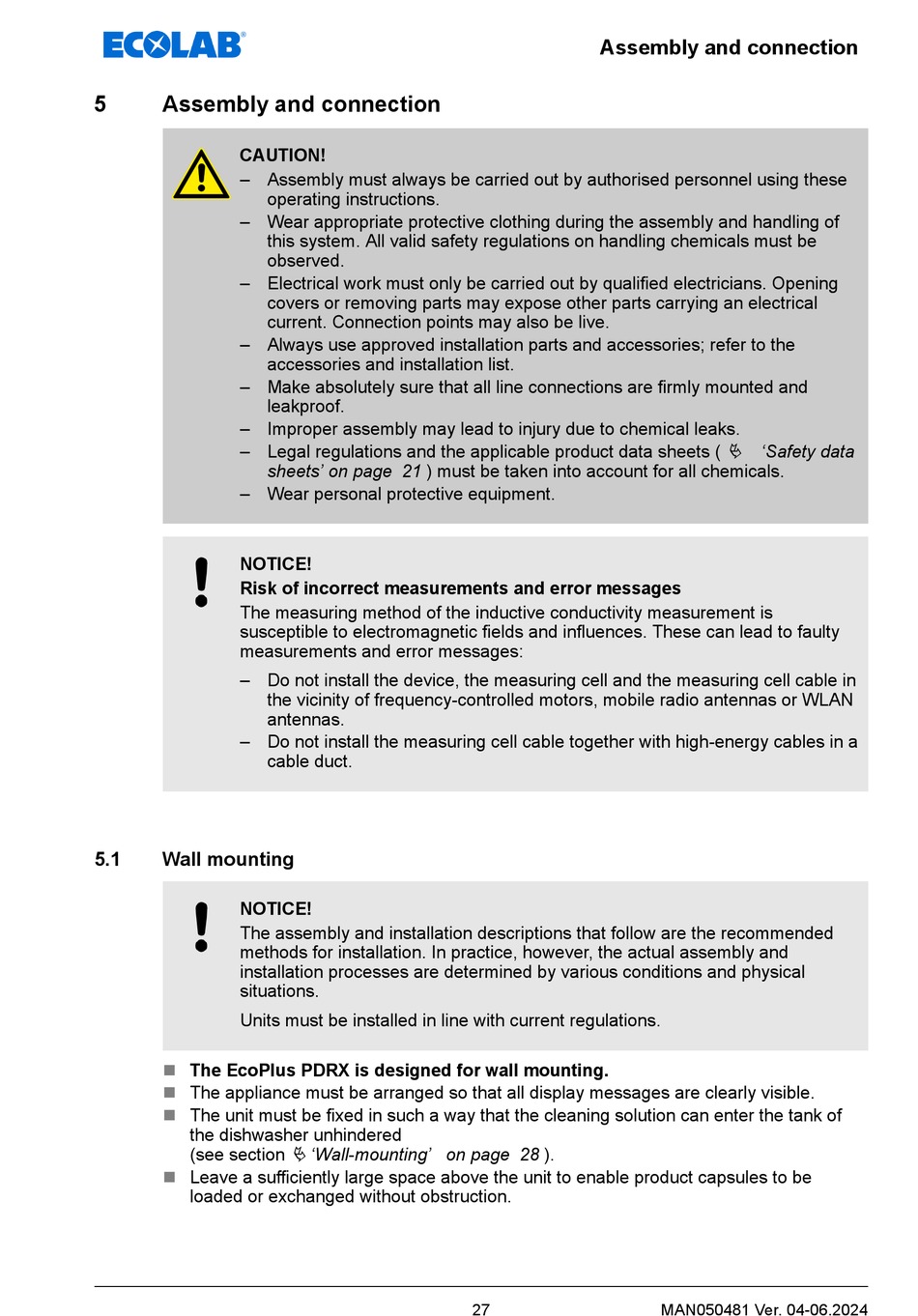

Assembly and connection
CAUTION!
– Assembly must always be carried out by authorised personnel using these
operating instructions.
– Wear appropriate protective clothing during the assembly and handling of
this system. All valid safety regulations on handling chemicals must be
observed.
– Electrical work must only be carried out by qualified electricians. Opening
covers or removing parts may expose other parts carrying an electrical
current. Connection points may also be live.
– Always use approved installation parts and accessories; refer to the
accessories and installation list.
– Make absolutely sure that all line connections are firmly mounted and
leakproof.
– Improper assembly may lead to injury due to chemical leaks.
– Legal regulations and the applicable product data sheets (
sheets' on page 21 ) must be taken into account for all chemicals.
– Wear personal protective equipment.
NOTICE!
Risk of incorrect measurements and error messages
The measuring method of the inductive conductivity measurement is
susceptible to electromagnetic fields and influences. These can lead to faulty
measurements and error messages:
– Do not install the device, the measuring cell and the measuring cell cable in
the vicinity of frequency-controlled motors, mobile radio antennas or WLAN
antennas.
– Do not install the measuring cell cable together with high-energy cables in a
cable duct.
5.1
Wall mounting
NOTICE!
The assembly and installation descriptions that follow are the recommended
methods for installation. In practice, however, the actual assembly and
installation processes are determined by various conditions and physical
situations.
Units must be installed in line with current regulations.
The EcoPlus PDRX is designed for wall mounting.
n
n
The appliance must be arranged so that all display messages are clearly visible.
n
The unit must be fixed in such a way that the cleaning solution can enter the tank of
the dishwasher unhindered
(see section
n
Leave a sufficiently large space above the unit to enable product capsules to be
loaded or exchanged without obstruction.
Ä 'Wall-mounting' on page 28 ).
Assembly and connection
27
Ä
'Safety data
MAN050481 Ver. 04-06.2024
