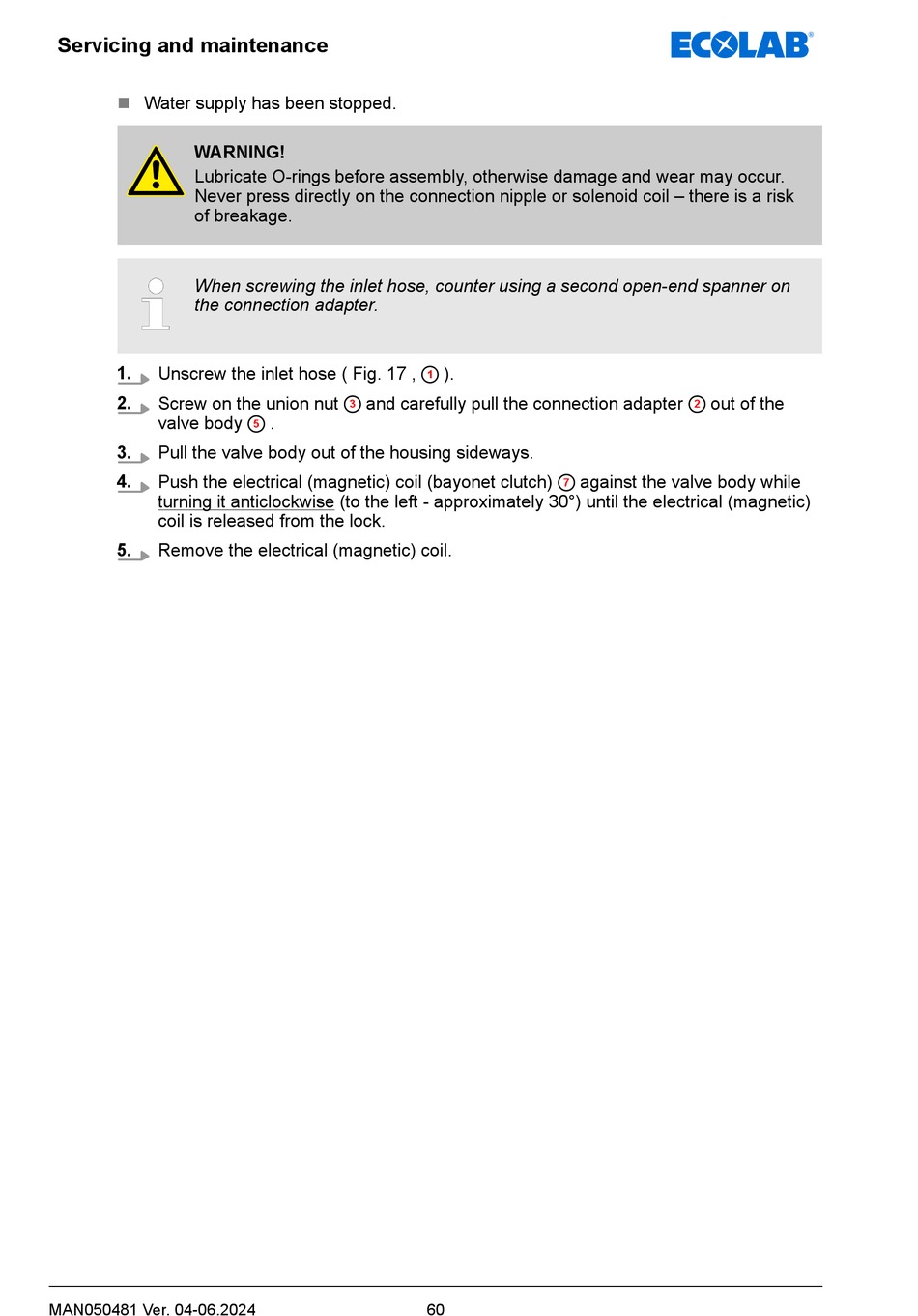

Servicing and maintenance
n
Water supply has been stopped.
WARNING!
Lubricate O-rings before assembly, otherwise damage and wear may occur.
Never press directly on the connection nipple or solenoid coil – there is a risk
of breakage.
When screwing the inlet hose, counter using a second open-end spanner on
the connection adapter.
1.
Unscrew the inlet hose ( Fig. 17 ,
2.
Screw on the union nut
valve body
3.
Pull the valve body out of the housing sideways.
4.
Push the electrical (magnetic) coil (bayonet clutch)
turning it anticlockwise (to the left - approximately 30°) until the electrical (magnetic)
coil is released from the lock.
5.
Remove the electrical (magnetic) coil.
MAN050481 Ver. 04-06.2024
and carefully pull the connection adapter
3
.
5
60
).
1
against the valve body while
7
out of the
2
