Servicing and maintenance
7.2.4
Cleaning and installing the connection adapter
2
3
1

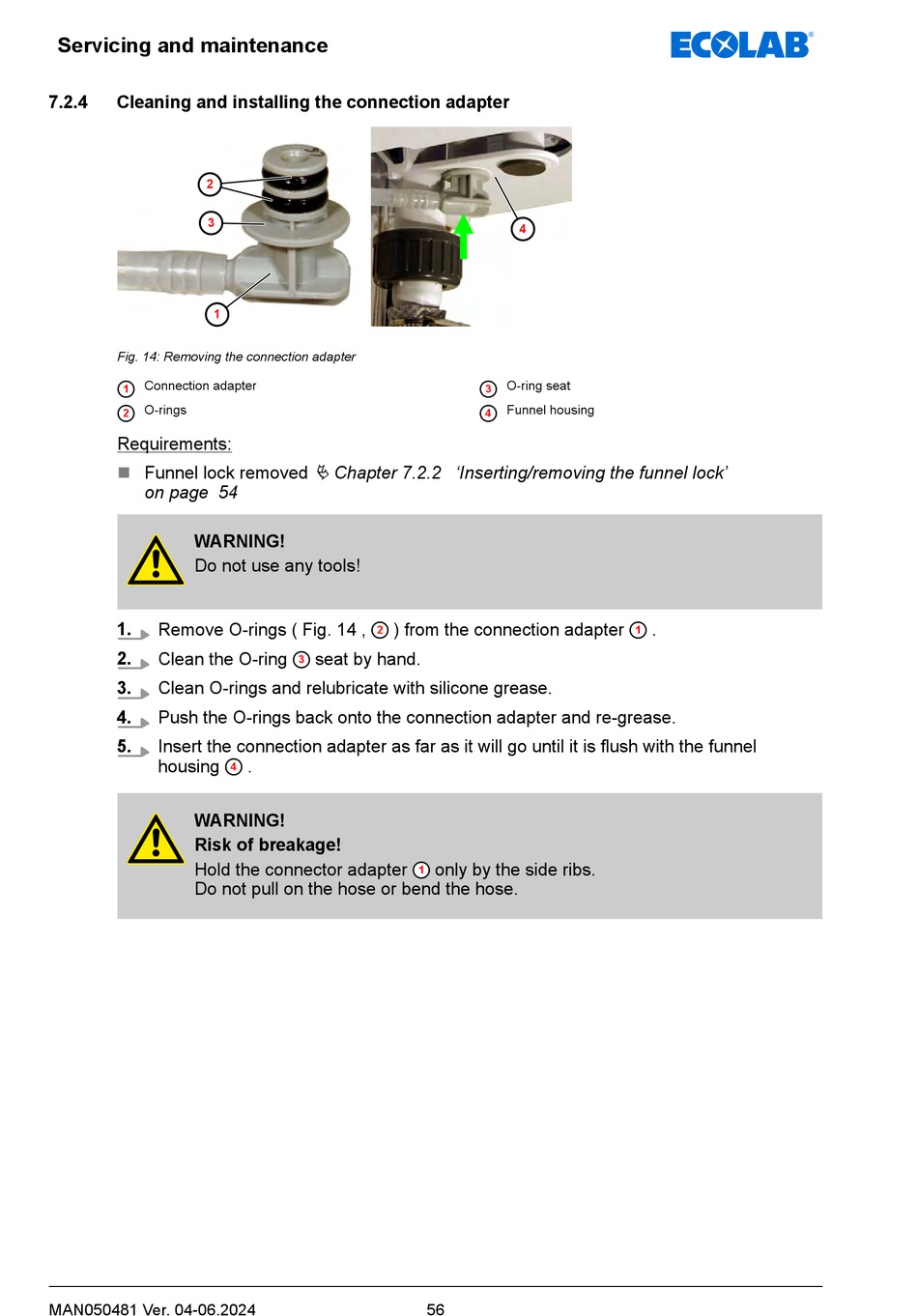

Fig. 14: Removing the connection adapter
Connection adapter
1
O-rings
2
Requirements:
n
Funnel lock removed
on page 54
WARNING!
Do not use any tools!
1.
Remove O-rings ( Fig. 14 ,
2.
Clean the O-ring
3.
Clean O-rings and relubricate with silicone grease.
4.
Push the O-rings back onto the connection adapter and re-grease.
5.
Insert the connection adapter as far as it will go until it is flush with the funnel
housing
WARNING!
Risk of breakage!
Hold the connector adapter
Do not pull on the hose or bend the hose.
MAN050481 Ver. 04-06.2024
Ä Chapter 7.2.2 'Inserting/removing the funnel lock'
) from the connection adapter
2
seat by hand.
3
.
4
4
O-ring seat
3
Funnel housing
4
only by the side ribs.
1
56
.
