Removing/installing the solenoid valve
3
5

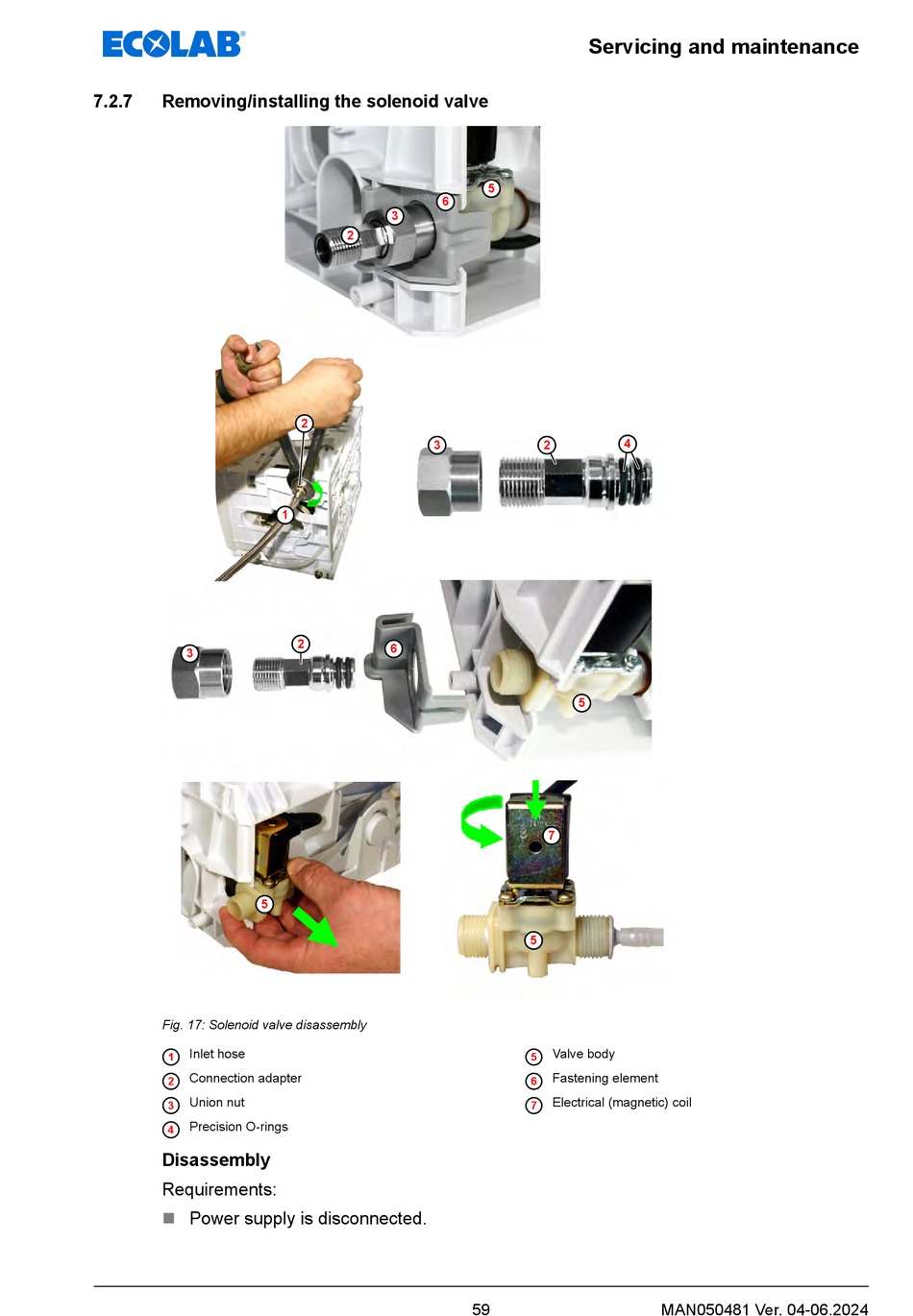

Fig. 17: Solenoid valve disassembly
Inlet hose
1
Connection adapter
2
Union nut
3
Precision O-rings
4
Disassembly
Requirements:
n
Power supply is disconnected.
6
3
2
2
3
1
2
6
Servicing and maintenance
5
4
2
5
7
5
Valve body
5
Fastening element
6
Electrical (magnetic) coil
7
59
MAN050481 Ver. 04-06.2024
