Installation and assembly
There must be sufficient space to install or remove spare parts (valve, pump,
etc.) and to carry out maintenance and preventive maintenance work.
All switches and valves must be freely accessible from all sides. Ensure that
there is approx. 1 m of free space around the metering console.
Attachment to the wall
Tool:
Material:
NOTICE!
Damage to property due to improper wall mounting
Improper installation can lead to the screw connection being torn out of the wall
and resulting damage to property.
– Check suitability of the wall for wall mounting
– Use special dowels and screws if necessary
Requirements:
n
The suitability of the wall for wall mounting was tested.
The selected installation site is suitable for operating the console .
n

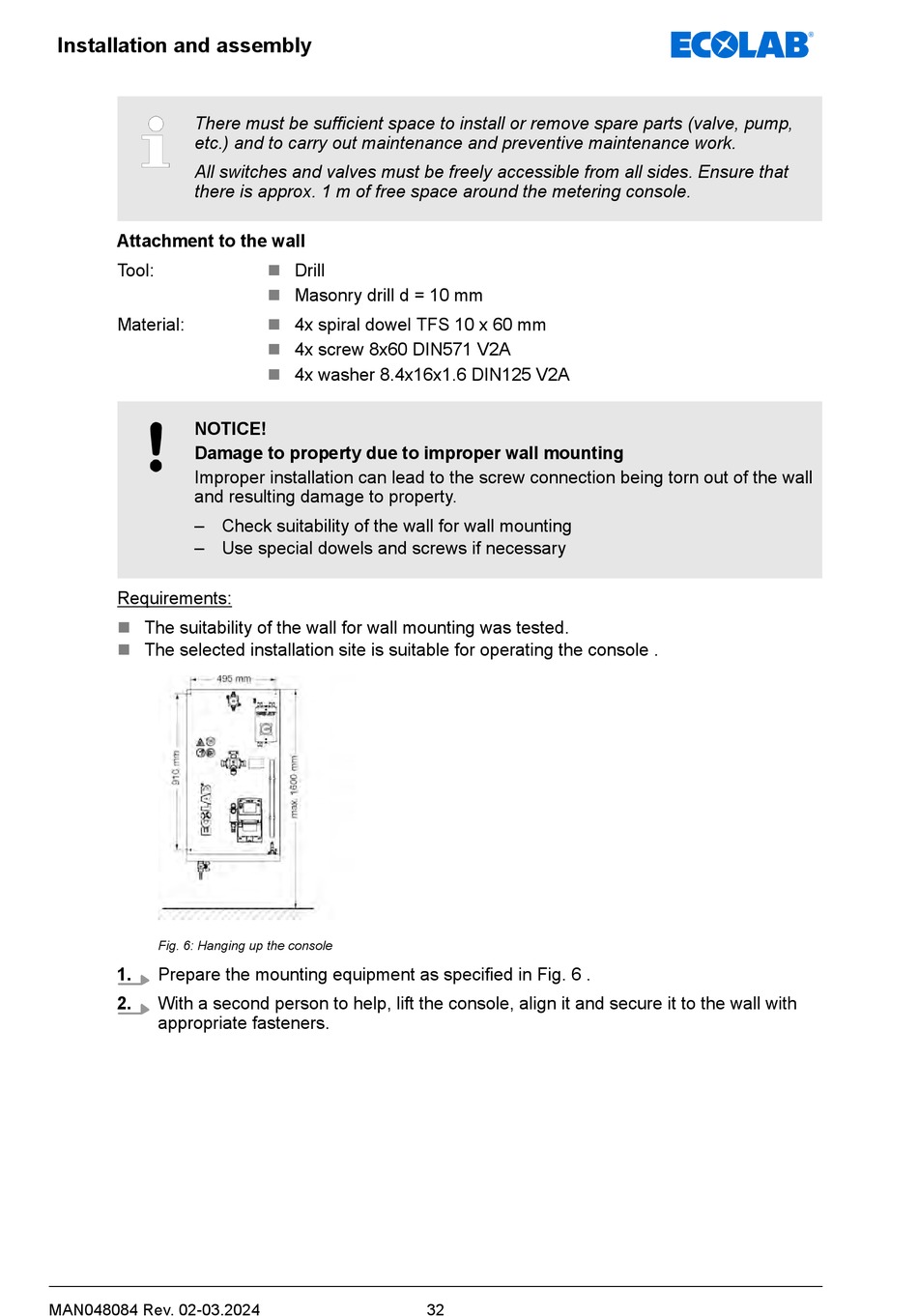

Fig. 6: Hanging up the console
1.
Prepare the mounting equipment as specified in Fig. 6 .
2.
With a second person to help, lift the console, align it and secure it to the wall with
appropriate fasteners.
MAN048084 Rev. 02-03.2024
n
Drill
n
Masonry drill d = 10 mm
n
4x spiral dowel TFS 10 x 60 mm
n
4x screw 8x60 DIN571 V2A
n
4x washer 8.4x16x1.6 DIN125 V2A
32
