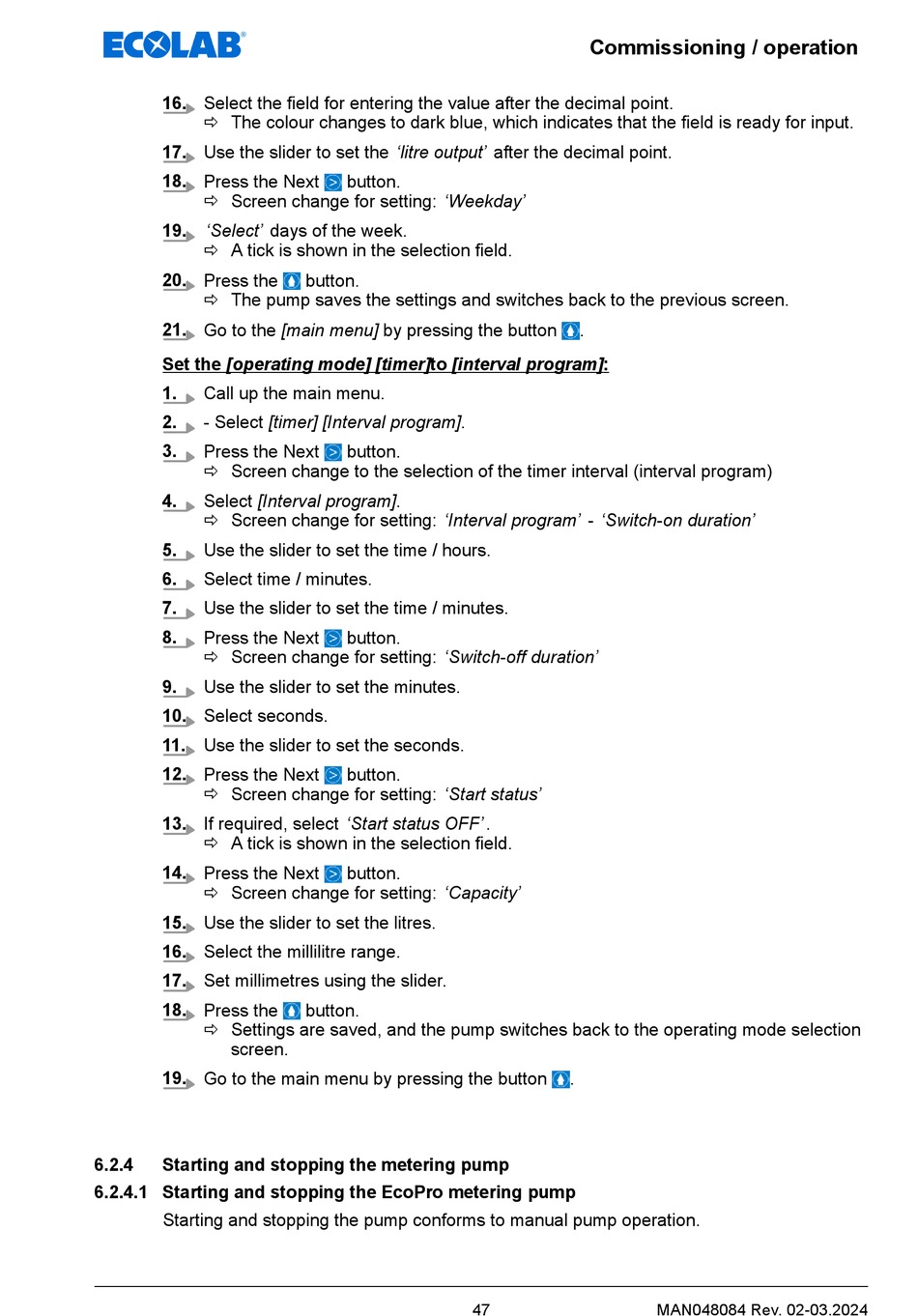

16. Select the field for entering the value after the decimal point.
ð The colour changes to dark blue, which indicates that the field is ready for input.
17. Use the slider to set the 'litre output' after the decimal point.
18. Press the Next
ð Screen change for setting: 'Weekday'
19.
'Select' days of the week.
ð A tick is shown in the selection field.
20. Press the
ð The pump saves the settings and switches back to the previous screen.
21. Go to the [main menu] by pressing the button
Set the [operating mode] [timer]to [interval program]:
1.
Call up the main menu.
2.
- Select [timer] [Interval program].
3.
Press the Next
ð Screen change to the selection of the timer interval (interval program)
4.
Select [Interval program].
ð Screen change for setting: 'Interval program' - 'Switch-on duration'
5.
Use the slider to set the time / hours.
6.
Select time / minutes.
7.
Use the slider to set the time / minutes.
8.
Press the Next
ð Screen change for setting: 'Switch-off duration'
9.
Use the slider to set the minutes.
10. Select seconds.
11. Use the slider to set the seconds.
12. Press the Next
ð Screen change for setting: 'Start status'
13. If required, select 'Start status OFF' .
ð A tick is shown in the selection field.
14. Press the Next
ð Screen change for setting: 'Capacity'
15. Use the slider to set the litres.
16. Select the millilitre range.
17. Set millimetres using the slider.
18. Press the
ð Settings are saved, and the pump switches back to the operating mode selection
screen.
19. Go to the main menu by pressing the button
6.2.4
Starting and stopping the metering pump
6.2.4.1 Starting and stopping the EcoPro metering pump
Starting and stopping the pump conforms to manual pump operation.
button.
button.
button.
button.
button.
button.
button.
47
Commissioning / operation
.
.
MAN048084 Rev. 02-03.2024
