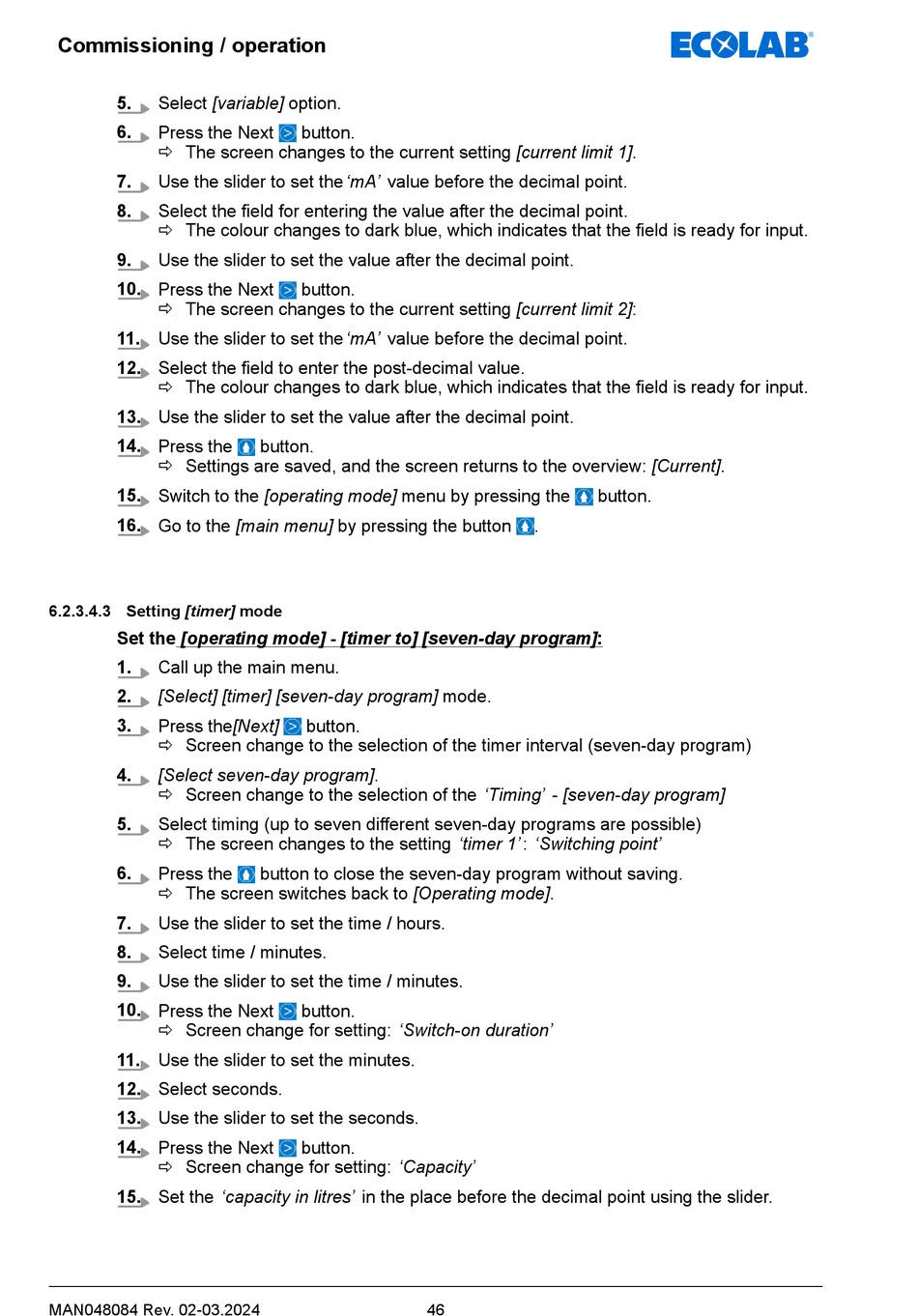

Commissioning / operation
5.
Select [variable] option.
6.
Press the Next
ð The screen changes to the current setting [current limit 1].
7.
Use the slider to set the 'mA' value before the decimal point.
8.
Select the field for entering the value after the decimal point.
ð The colour changes to dark blue, which indicates that the field is ready for input.
9.
Use the slider to set the value after the decimal point.
10. Press the Next
ð The screen changes to the current setting [current limit 2]:
11. Use the slider to set the 'mA' value before the decimal point.
12. Select the field to enter the post-decimal value.
ð The colour changes to dark blue, which indicates that the field is ready for input.
13. Use the slider to set the value after the decimal point.
14. Press the
ð Settings are saved, and the screen returns to the overview: [Current].
15. Switch to the [operating mode] menu by pressing the
16. Go to the [main menu] by pressing the button
6.2.3.4.3 Setting [timer] mode
Set the [operating mode] - [timer to] [seven-day program]:
1.
Call up the main menu.
2.
[Select] [timer] [seven-day program] mode.
3.
Press the[Next]
ð Screen change to the selection of the timer interval (seven-day program)
4.
[Select seven-day program].
ð Screen change to the selection of the 'Timing' - [seven-day program]
5.
Select timing (up to seven different seven-day programs are possible)
ð The screen changes to the setting 'timer 1' : 'Switching point'
6.
Press the
ð The screen switches back to [Operating mode].
7.
Use the slider to set the time / hours.
8.
Select time / minutes.
9.
Use the slider to set the time / minutes.
10. Press the Next
ð Screen change for setting: 'Switch-on duration'
11. Use the slider to set the minutes.
12. Select seconds.
13. Use the slider to set the seconds.
14. Press the Next
ð Screen change for setting: 'Capacity'
15. Set the 'capacity in litres' in the place before the decimal point using the slider.
MAN048084 Rev. 02-03.2024
button.
button.
button.
button.
button to close the seven-day program without saving.
button.
button.
46
button.
.
