Handicare Hippo Bedienungsanleitung Seite 16

Operating instructions
Extra seating depth (increase seating depth with 70 mm)
The seating depth may be extended by 70 mm, by rotating the exchangeable part C
(see Figure 2 ) 180º, until it is in the position shown in Figure 3 .
Seating width 26 -40 cm
1. Unscrew bolt A (both left and right), see Figure 4 above.
2. Slide the arm rests into their desired positions (both left and right).
3. Tighten bolt A (both left and right).
16

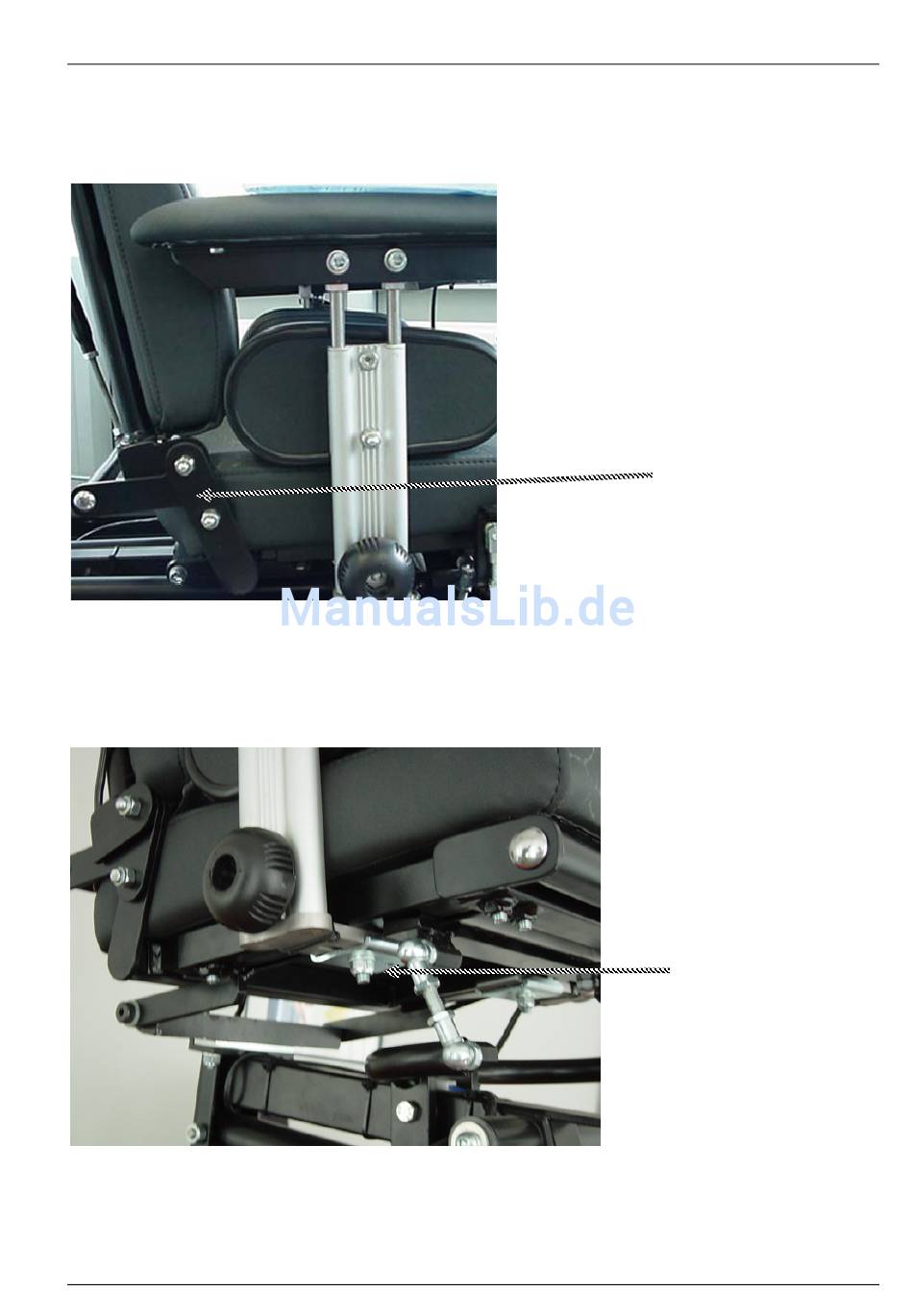

Figure 3
Figure 4
Exchangeable part
C
Bolt A
