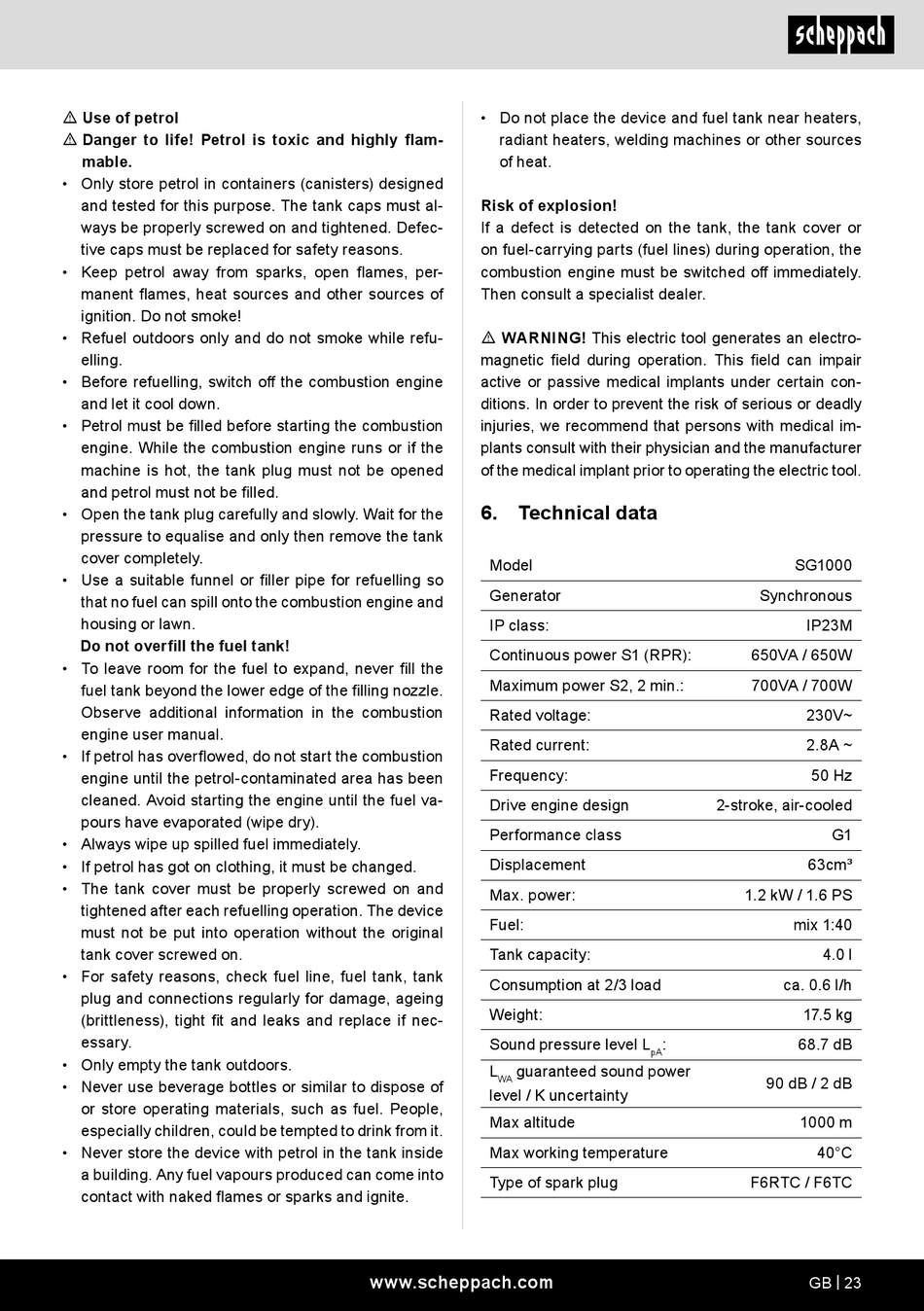

Scheppach SG1000 Original Bedienungsanleitung Seite 23

m Use of petrol
m Danger to life! Petrol is toxic and highly flam-
mable.
• Only store petrol in containers (canisters) designed
and tested for this purpose. The tank caps must al-
ways be properly screwed on and tightened. Defec-
tive caps must be replaced for safety reasons.
• Keep petrol away from sparks, open flames, per-
manent flames, heat sources and other sources of
ignition. Do not smoke!
• Refuel outdoors only and do not smoke while refu-
elling.
• Before refuelling, switch off the combustion engine
and let it cool down.
• Petrol must be filled before starting the combustion
engine. While the combustion engine runs or if the
machine is hot, the tank plug must not be opened
and petrol must not be filled.
• Open the tank plug carefully and slowly. Wait for the
pressure to equalise and only then remove the tank
cover completely.
• Use a suitable funnel or filler pipe for refuelling so
that no fuel can spill onto the combustion engine and
housing or lawn.
Do not overfill the fuel tank!
• To leave room for the fuel to expand, never fill the
fuel tank beyond the lower edge of the filling nozzle.
Observe additional information in the combustion
engine user manual.
• If petrol has overflowed, do not start the combustion
engine until the petrol-contaminated area has been
cleaned. Avoid starting the engine until the fuel va-
pours have evaporated (wipe dry).
• Always wipe up spilled fuel immediately.
• If petrol has got on clothing, it must be changed.
• The tank cover must be properly screwed on and
tightened after each refuelling operation. The device
must not be put into operation without the original
tank cover screwed on.
• For safety reasons, check fuel line, fuel tank, tank
plug and connections regularly for damage, ageing
(brittleness), tight fit and leaks and replace if nec-
essary.
• Only empty the tank outdoors.
• Never use beverage bottles or similar to dispose of
or store operating materials, such as fuel. People,
especially children, could be tempted to drink from it.
• Never store the device with petrol in the tank inside
a building. Any fuel vapours produced can come into
contact with naked flames or sparks and ignite.
• Do not place the device and fuel tank near heaters,
radiant heaters, welding machines or other sources
of heat.
Risk of explosion!
If a defect is detected on the tank, the tank cover or
on fuel-carrying parts (fuel lines) during operation, the
combustion engine must be switched off immediately.
Then consult a specialist dealer.
m WARNING! This electric tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain con-
ditions. In order to prevent the risk of serious or deadly
injuries, we recommend that persons with medical im-
plants consult with their physician and the manufacturer
of the medical implant prior to operating the electric tool.
6. Technical data
Model
Generator
IP class:
Continuous power S1 (RPR):
Maximum power S2, 2 min.:
Rated voltage:
Rated current:
Frequency:
Drive engine design
Performance class
Displacement
Max. power:
Fuel:
Tank capacity:
Consumption at 2/3 load
Weight:
Sound pressure level L
L guaranteed sound power
WA
level / K uncertainty
Max altitude
Max working temperature
Type of spark plug
www.scheppach.com
SG1000
Synchronous
IP23M
650VA / 650W
700VA / 700W
230V~
2.8A ~
50 Hz
2-stroke, air-cooled
63cm³
1.2 kW / 1.6 PS
mix 1:40
4.0 l
ca. 0.6 l/h
17.5 kg
: 68.7 dB
pA
90 dB / 2 dB
1000 m
40°C
F6RTC / F6TC
GB | 23
G1
