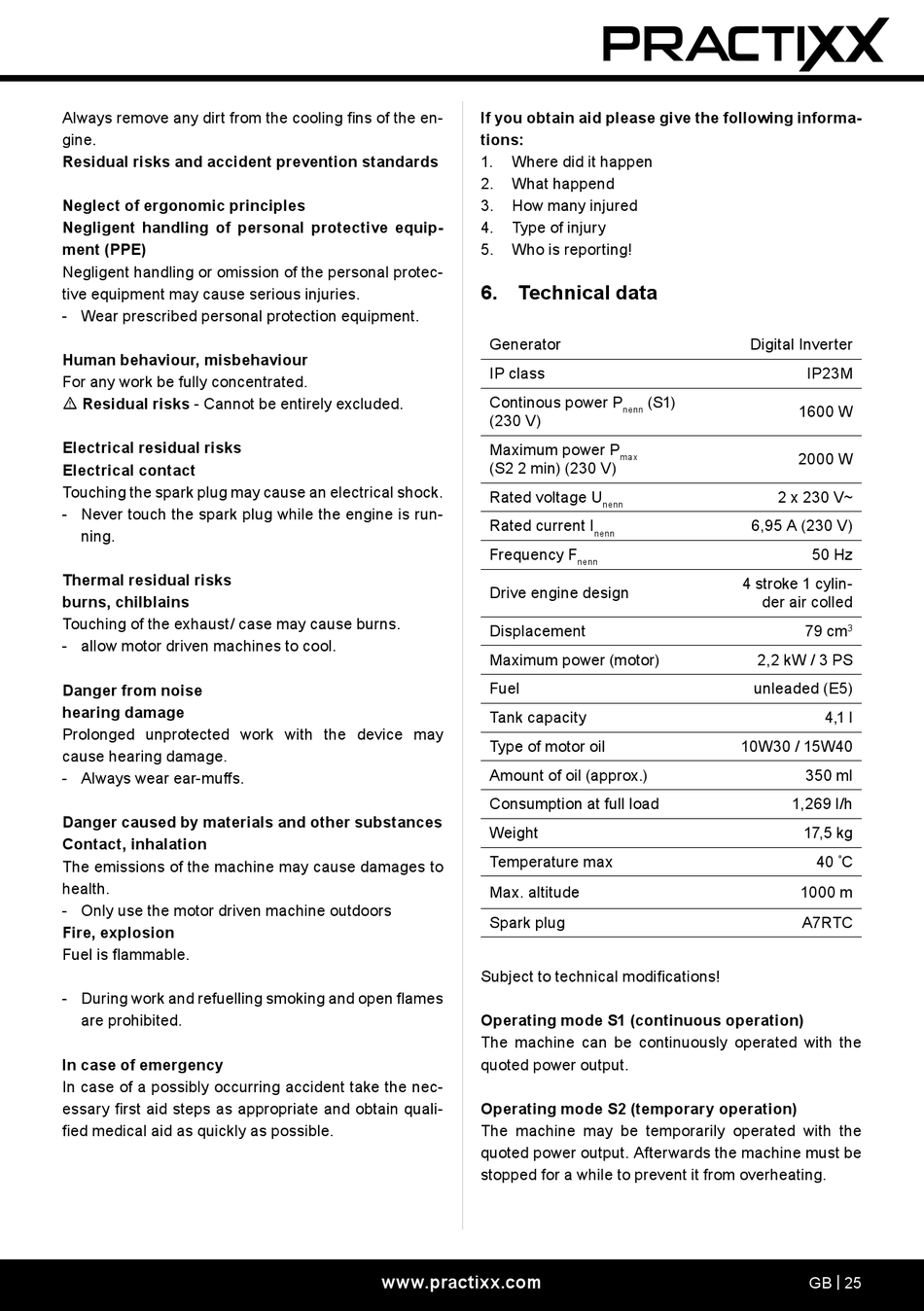

Technical Data - Scheppach PRACTIXX PX-SE-2000 Originalbetriebsanleitung

Always remove any dirt from the cooling fins of the en-
gine.
Residual risks and accident prevention standards
Neglect of ergonomic principles
Negligent handling of personal protective equip-
ment (PPE)
Negligent handling or omission of the personal protec-
tive equipment may cause serious injuries.
- Wear prescribed personal protection equipment.
Human behaviour, misbehaviour
For any work be fully concentrated.
m Residual risks - Cannot be entirely excluded.
Electrical residual risks
Electrical contact
Touching the spark plug may cause an electrical shock.
- Never touch the spark plug while the engine is run-
ning.
Thermal residual risks
burns, chilblains
Touching of the exhaust/ case may cause burns.
- allow motor driven machines to cool.
Danger from noise
hearing damage
Prolonged unprotected work with the device may
cause hearing damage.
- Always wear ear-muffs.
Danger caused by materials and other substances
Contact, inhalation
The emissions of the machine may cause damages to
health.
- Only use the motor driven machine outdoors
Fire, explosion
Fuel is flammable.
- During work and refuelling smoking and open flames
are prohibited.
In case of emergency
In case of a possibly occurring accident take the nec-
essary first aid steps as appropriate and obtain quali-
fied medical aid as quickly as possible.
If you obtain aid please give the following informa-
tions:
1. Where did it happen
2. What happend
3. How many injured
4. Type of injury
5. Who is reporting!

6. Technical data

Generator
IP class
Continous power P
(230 V)
Maximum power P
(S2 2 min) (230 V)
Rated voltage U
Rated current I
Frequency F
Drive engine design
Displacement
Maximum power (motor)
Fuel
Tank capacity
Type of motor oil
Amount of oil (approx.)
Consumption at full load
Weight
Temperature max
Max. altitude
Spark plug
Subject to technical modifications!
Operating mode S1 (continuous operation)
The machine can be continuously operated with the
quoted power output.
Operating mode S2 (temporary operation)
The machine may be temporarily operated with the
quoted power output. Afterwards the machine must be
stopped for a while to prevent it from overheating.
www.practixx.com
Digital Inverter
(S1)
nenn
max
nenn
6,95 A (230 V)
nenn
nenn
4 stroke 1 cylin-
10W30 / 15W40
IP23M
1600 W
2000 W
2 x 230 V~
50 Hz
der air colled
79 cm
3
2,2 kW / 3 PS
unleaded (E5)
4,1 l
350 ml
1,269 l/h
17,5 kg
40 C
°
1000 m
A7RTC
GB | 25
