M A I N T E N A N C E A N D C A R E

A D J U S T M E N T / B R A K E L I N I N G W E A R

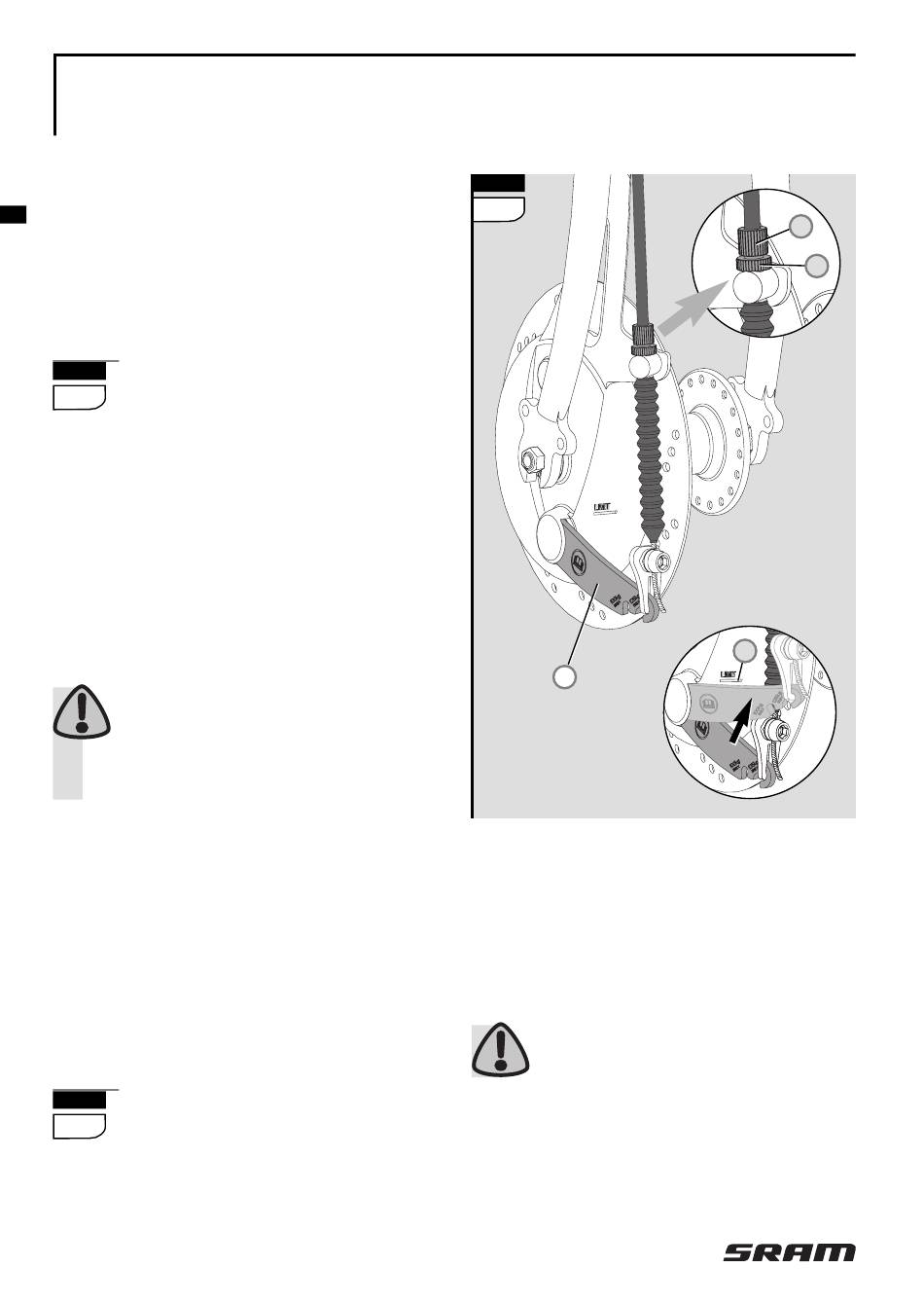

A D J U S T I N G T H E B R A K E
Readjust the brake if the hand brake
lever can be pulled close to the
handlebar (for example, after the
braking-in time or after long use).
Unscrew the adjustment
1
screw (1) until the brake pads
drag lightly.
» Actuate the hand brake lever
forcefully several times and then,
if necessary, turn the adjusting
screw further in just until the
wheel starts spinning freely.
» Lock with nut (2).
Before riding your bicycle,
always check that all brake
system components are functioning
properly.
W E A R I N S P E C T I O N
If the brake lining is worn, the
complete brake anchor plate must
be replaced.
Inspection:
With your finger, press brake
1
lever (3) forcefully against the
spring resistance. If the edge of the
brake lever reaches the "LIMIT"
6
1
3
mark of the wear display (4),
complete brake anchor plate must
be replaced.
This work must be done only
by a qualified specialist.
i-BRAKE · April 2004
1
2
4
