M A I N T E N A N C E A N D C A R E
R E M O V I N G A N D M O U N T I N G T H E W H E E L

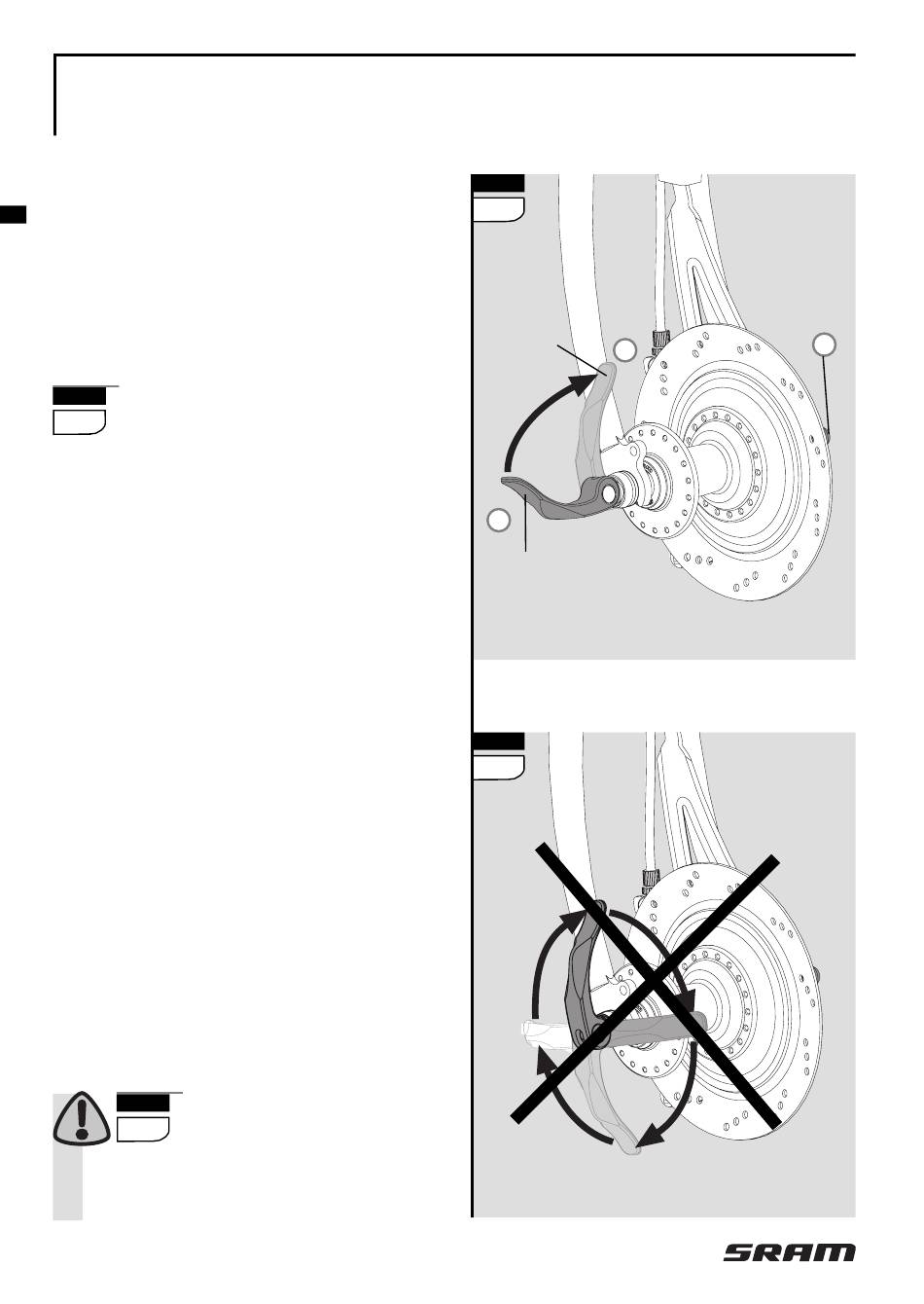

Attaching a wheel
with quick release:
» Only use quick release devices
with the correct length.
» Position quick release lever
opposite to the brake.
Turn release lever (5) outwards
7
until it is at a right angle to the
bike (position „OPEN").
» Tighten adjusting nut (6) as much
as possible by hand.
» Turn release lever to the closed
position (7) (the word "CLOSE" is
visible from the outside).
After closure, the release lever
should be parallel to the fork. If
the release lever can be closed
relatively easily, the tension force
is inadequate.
In this case, open release lever
again, tighten adjusting nut (6)
slightly and close release lever
again.
If considerable force is required
to close the lever, open the lever
again, undo the adjusting nut
slightly and close lever again.
Do not tighten the wheel
8
by turning the release
lever clockwise.
» Only use hand force.
10
7
closed
7
5
open
8
