SRAM i-Brake Betriebsanleitung Seite 11

M A I N T E N A N C E A N D C A R E
R E M O V I N G A N D M O U N T I N G T H E W H E E L
» By incorrectly mounting the
skewer or the wheel in the
dropout, or by wrongly adjusting
the closing force, the wheel may
come loose and fall off during
the ride. This may lead to severe
rider injury or death.

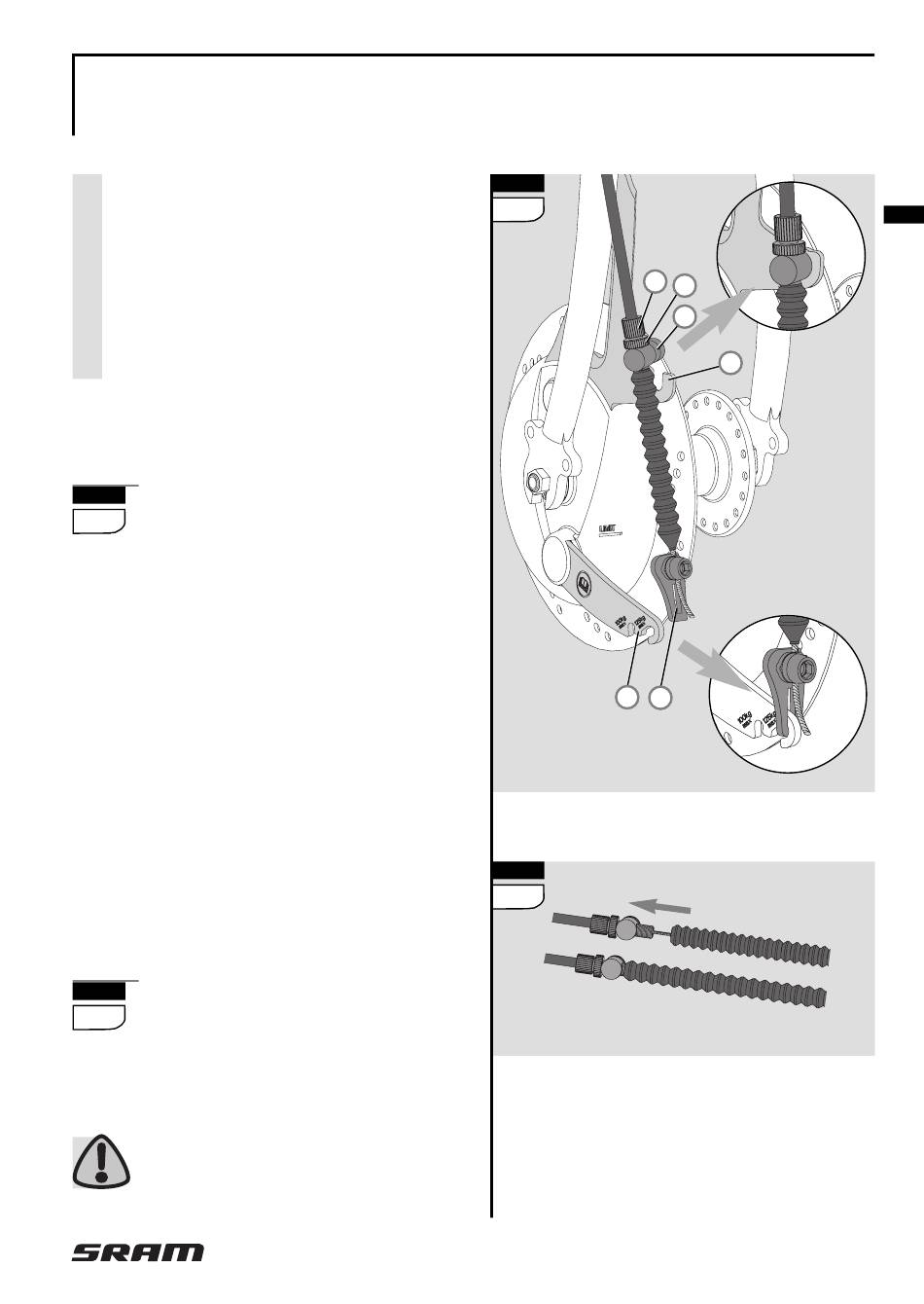

C O N N E C T I N G T H E B R A K E
Fit cable stop (1) with adjusting
9
bolt (2) and nut (3) and insert
into the slot (4) the brake anchor
plate.
» Attach link (5) to brake lever (6).
Use outer standard position "125
kg" (overall weight).
Put the link in the position first
that is closest to your total weight
with bike (and equipment).
Positioning of link can be changed
to personal preferences, but we
advise to use according to weight.
Make sure you use the same posi-
tion after changing the wheel.
Attach the bellows to the
10
adjustment screw.
» Check the brake adjusting.
See A D J U S T I N G T H E B R A K E .
Check whether the brake
functions correctly.
i-BRAKE · April 2004
9
2
6 5
10
3
1
4
11
E
