SRAM i-Brake Betriebsanleitung Seite 9

M A I N T E N A N C E A N D C A R E
R E M O V I N G A N D M O U N T I N G T H E W H E E L

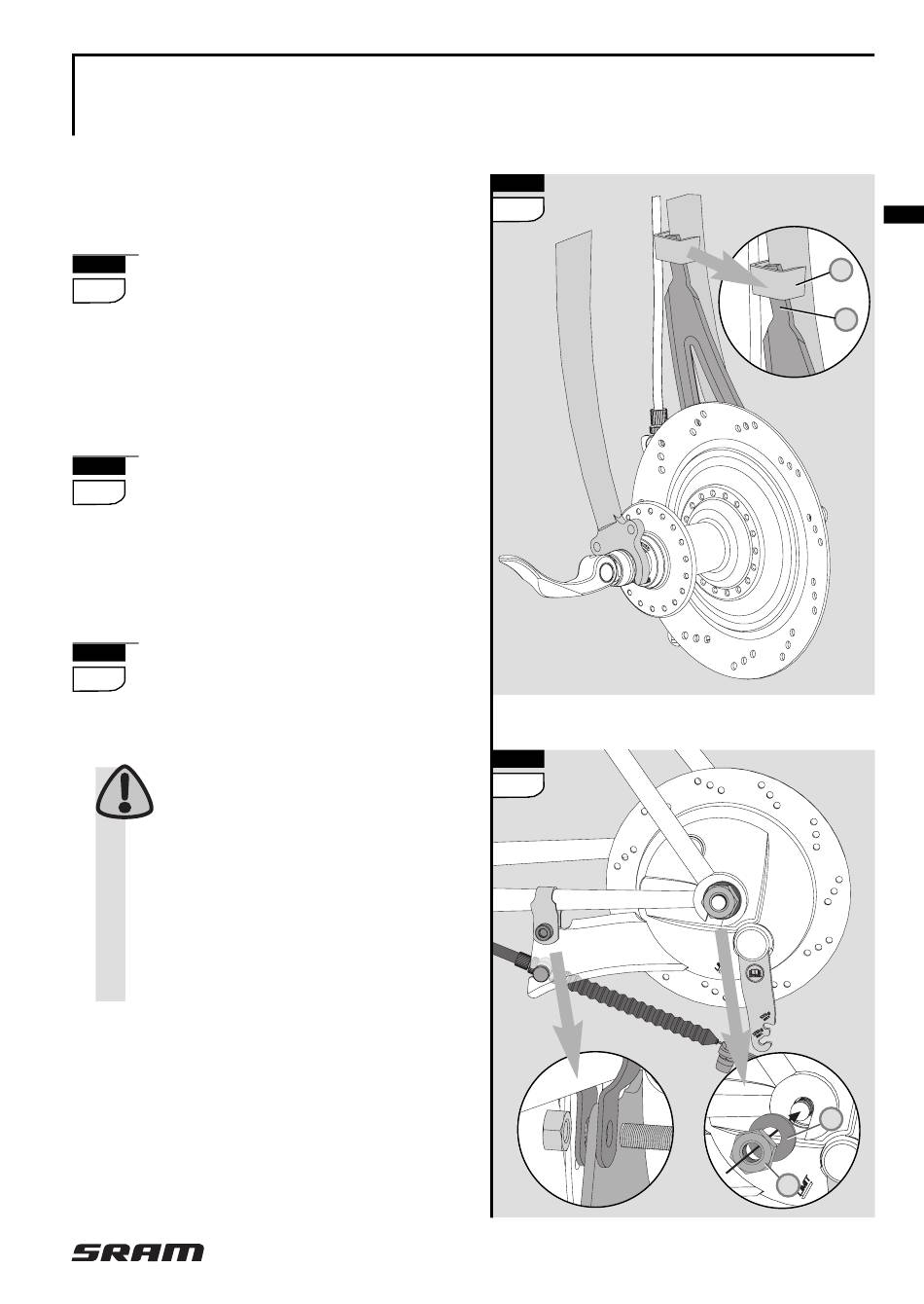

M O U N T I N G T H E W H E E L
» Placing the wheel in fork ends.
Front wheel: Guide the top end
5
of the brake anchor plate (1)
into the brazing part of the front
fork (2).
Attaching a wheel with axle nuts:
Front and rear wheel:
Slide the washers (3) onto the
6
ends of the axles.
» Mount the axle nuts (4) and
tighten them with a torque of
30 – 40 Nm (270 – 350 in.lbs.).
Rear wheel: Before tightening
6
the axle nuts attach the brake
anchor plate to the frame using a
suitable frame clamp.
Mount the brake anchor
plate between the two straps
of the frame clamp. The frame
clamp must be seated on the rear
fork with no play. Use a self-
locking nut! Screw M6, property
class 8.8.
Torque: 7 – 8 Nm (62 – 70 in.lbs.).
i-BRAKE · April 2004
5
6
E
2
1
3
4
9
