Configuration examples

Variant 1 - Com-
pact spool on ro-
bot
(11)
(12)

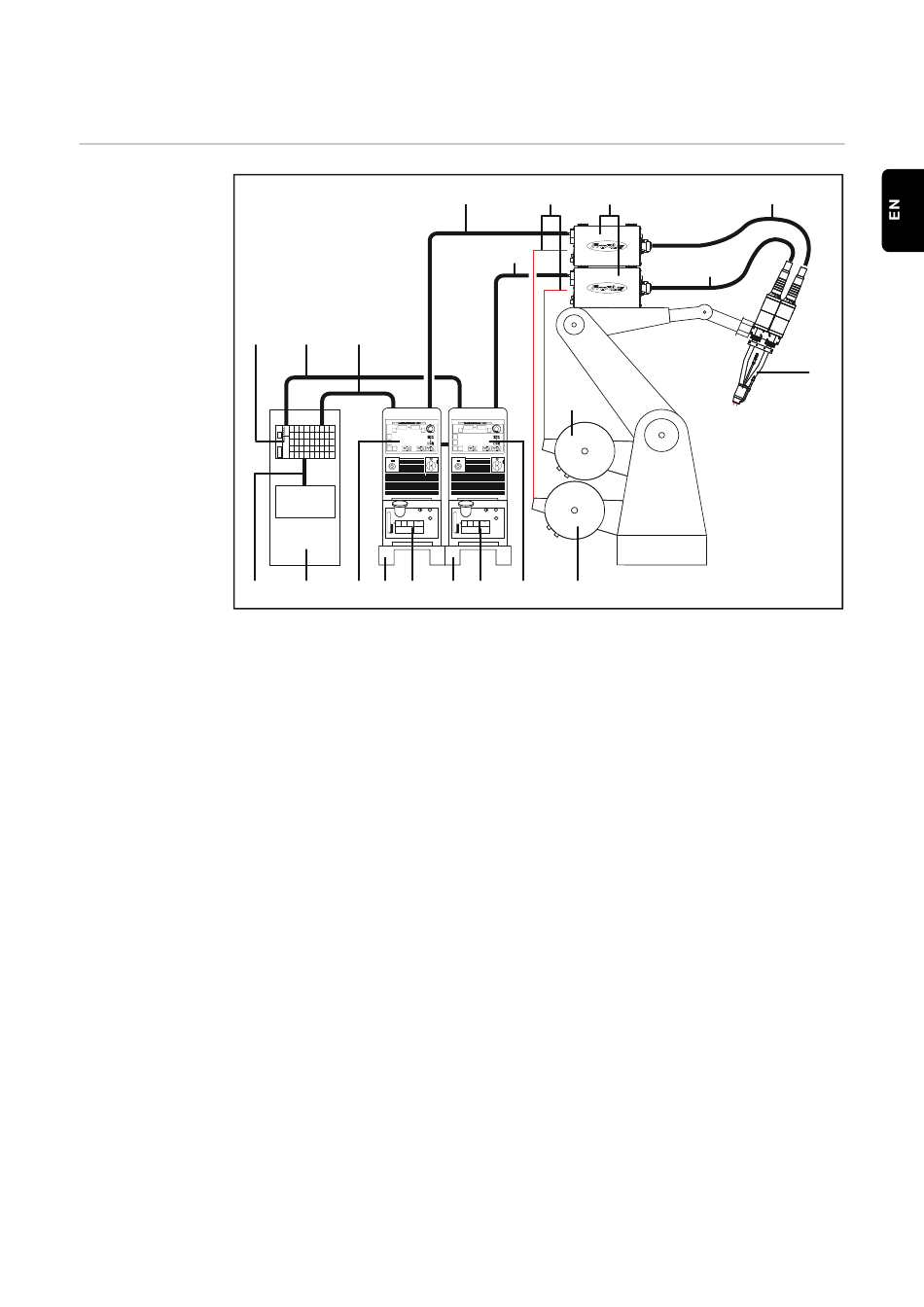

Variant 1 - Compact spool on robot

(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
Area of application
Variant 1 - "Compact spool on robot" - is often used:
-
-
Other configuration possibilities
(10) (10)
SPS
(13) (1) (2) (3)
TPS 4000 power source (2x)
+ optional LHSB link (2x)
+ LHSB connector cable (1x)
+ software enablement (2x)
+ software-update from Fronius databank (2x)
Base stand (2x, bolted)
FK 4000 R cooling unit (2x), each with optional rate-of-flow watchdog
Wirespool holder on robot (2x)
Robacta Twin 500 welding torch (1x)
Robacta Drive Twin torch hosepack (1x)
VR 1500 robot wirefeeder (2x)
Wirefeed hose (2x)
Standard interconnecting cable (2x)
Remote-control cable (LocalNet, 2x)
Twin Standard I/O Job robot interface (1x)
Cable connector to robot control (1x)
Robot control (1x)
for applications with soft welding wires (e.g. aluminium and aluminium alloys,
copper and copper alloys, wires for MIG brazing)
with long torch-hosepacks
(9) (8) (7)
(9)
(4)
(2) (3) (1) (4)
(6)
(6)
(5)
