ENGLISH
INSTRUCTIONS AND WARNING FOR ADJUSTMENTS
WARNING: Before making any type
of adjustment, activate all the safety de-
vices provided and decide whether staff at
work and those in the vicinity should be in-
formed.
In particular, turn off the gas supply tap, cut
off the electricity supply using the master
switch and prevent access to all devices that
might cause unexpected health and safety
hazards if turned on.

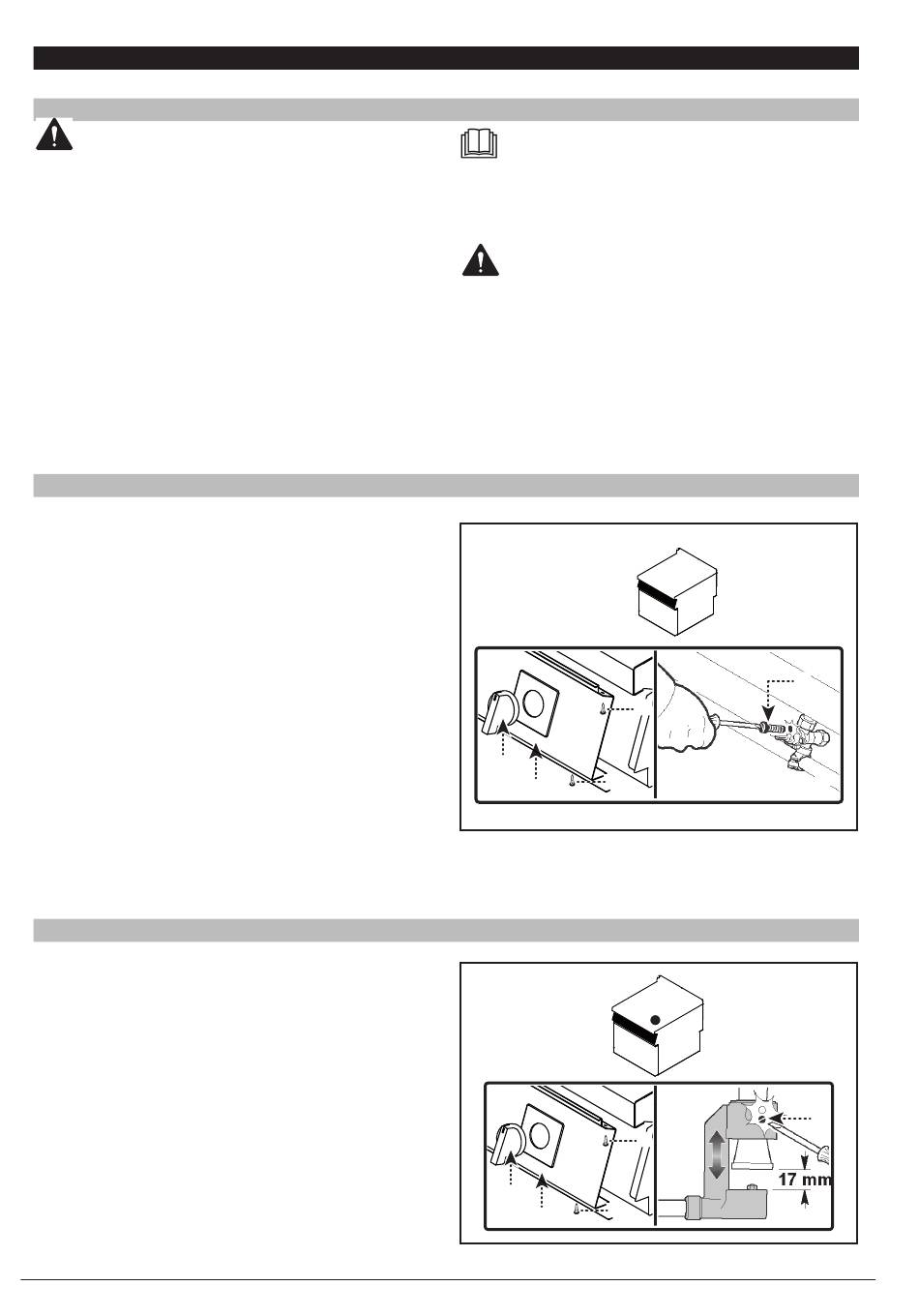

ADJUSTING GAS CONTROL VALVE MINIMUM SETTING (TOP BURNERS)
To carry out this operation, proceed as follows.
Turn off the gas supply tap.
1)
Pull off the knob (A).
2)
Undo the screws (C) and remove the control
3)
panel (B).
Remove the injector (D) and replace it with
4)
the one suitable for the type of gas in use
(see table at back of manual).
Fully screw the injector.
5)
After making the setting, seal the screw with
6)
paint.
Replace the control panel (B) and the knob
7)
(A) on completion of the operation.
To carry out this operation, proceed as follows.
Turn off the gas supply tap.
1)
Pull off the knob (A).
2)
Undo the screws (C) and remove the control
3)
panel (B).
Undo the screw (D).
4)
Set the burner mount (E) at a distance of 17
5)
mm , and tighten the screw (D).
Replace the control panel (B) and the knob
6)
(A) on completion of the operation.
14
ADJUSTMENTS
ADJUSTING TOP BURNER PRIMARY AIR (4 KW)
NOTE: These adjustments are only re-
quired if the type of gas to be connected is
diff erent from that used for testing, after
changing the gas supply (see page 13).
WARNING: Adjustments must be car-
ried out by authorised, qualifi ed staff , in ac-
cordance with the relevant legal require-
ments.
A
C
B
A
C
B
ADJUSTMENTS
D
C
C
3320050_inst_GB_rev.2
D
