Post-Flight Inspections and Maintenance
Make sure the plastic ball link holds the control ball, but is not tight (binding) on the ball. When a link is too loose on the ball, it can separate
Ball Links
from the ball during flight and cause a crash. Replace worn ball links before they fail.
Cleaning Make sure the battery is not connected before cleaning. Remove dust and debris with a soft brush or a dry lint free cloth.
Bearings
Replace bearings when they become damaged.
Wiring Make sure wiring does not block moving parts. Replace damaged wiring and loose connectors.
Make sure there are no loose screws, other fasteners or connectors. Do not over tighten metal screws in plastic parts. Tighten screw so
Fasteners
parts are mated together, then turn screw only 1/8th of a turn more.
Make sure there is no damage to rotor blades and other parts which move at high speed. Damage to these parts includes cracks, burrs,
Rotors
chips or scratches. Replace damaged parts before flying.
Make sure the flight controller is securely attached to the frame. Replace the double-sided tape when necessary. The helicopter will crash if
Flight Controller
the flight controller separates from the helicopter frame.
Advanced Tuning (Forward Programming)
The following applies to forward programming capable Spektrum transmitters. Consult your transmitter manual or visit SpektrumRC.com for a complete list
of forward programming capable transmitters.
The Blade Eclipse 360 default settings are appropriate for most users. We
recommend flying with the default parameters before making any adjustments.
The Blade Eclipse 360 BNF flight controller may be programmed from any
compatible Spektrum transmitter (visit SpektrumRC.com for more information).
Entering the Advanced Parameters Menu
With the helicopter bound to the transmitter and powered on, enter the Function List and select Forward Programming. Make small changes to one parameter at a time
and test fly the changes before changing the parameter further or changing a different parameter. If at anytime you want to restore the default value for a parameter
simply press the [RESET] button on IX radios screen or the [Clear] button on DX and NX transmitters and the default value for that parameter will be restored to the
recommended value for your specific BNF model.
Calibration Procedure
If the helicopter is experiencing drift issues, perform the following calibration. The calibration procedure may also be needed following crash repairs.
1. Ensure the surface used for calibration is level.
2. Power on the transmitter and activate throttle hold.
3. Connect the flight batter to the ESC and allowing the model to initialize.
4. Turn Throttle Hold ON.

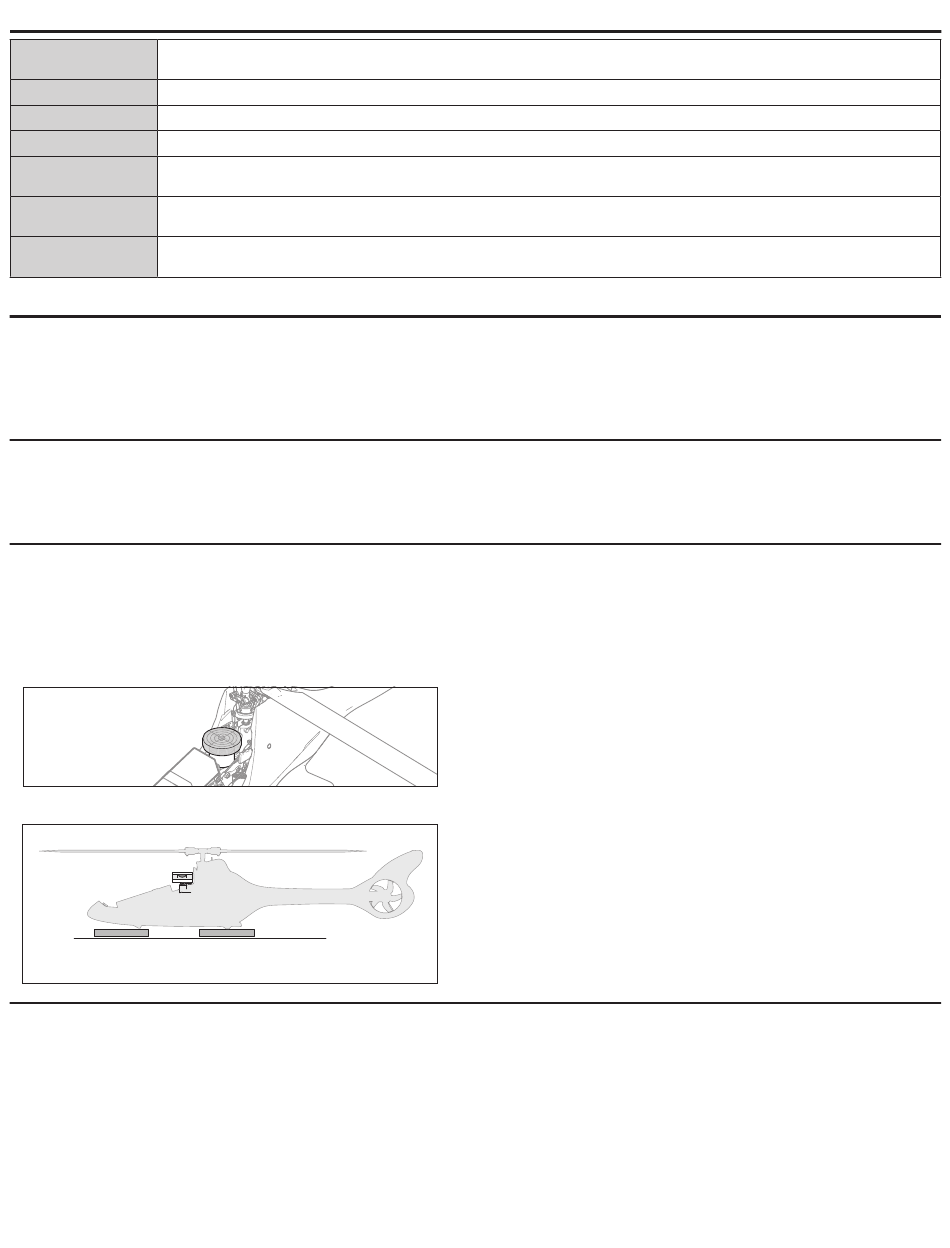

5. Use a small 2 axis bubble level on the motor as shown below.
Place a 2-axis bubble
level on the motor
6. Level the helicopter by placing a shim under the landing skid if necessary.
Bubble level
Add shims under the landing gear
to level the model, as required
Factory Reset
If the process of changing parameters on the the Blade Eclipse 360 helicopter results in undesirable flight performance, you can reset the settings back to factory
defaults by selecting the Factory Reset option in Forward Programming.
1. Enter the Function List
2. Select Forward Programming
3. Select System Setup
4. Select Factory Reset
The flight controller shipped with BNF models is specifically configured for the
Blade Eclipse 360 Helicopter utilizing the supplied electronic components and is
not intended for use in other aircraft.
7. Enter the Function List on your transmitter.
8. Select Forward Programming.
9. Select System Setup.
10. Select Calibration.
11. Select Apply and the calibration will begin. The LED will flash yellow indicating
the calibration is proceeding normally. If the LED changes to red this indicates
the model is not near level or the model was moved, in this case the calibration
starts over.
12. After the calibration is successfully completed, the receiver LED will will
change to a slow cyan flash which indicates the calibration has completed.
13. Exit forward programming and proceed to the pre-flight check list procedure
before flying your model.
5. Select Apply
6. Perform the Setup->Swashplate->Sub Trim function and ensure the servos are
properly trimmed.
7. Proceed with the pre-flight check list procedure before flying the model.
