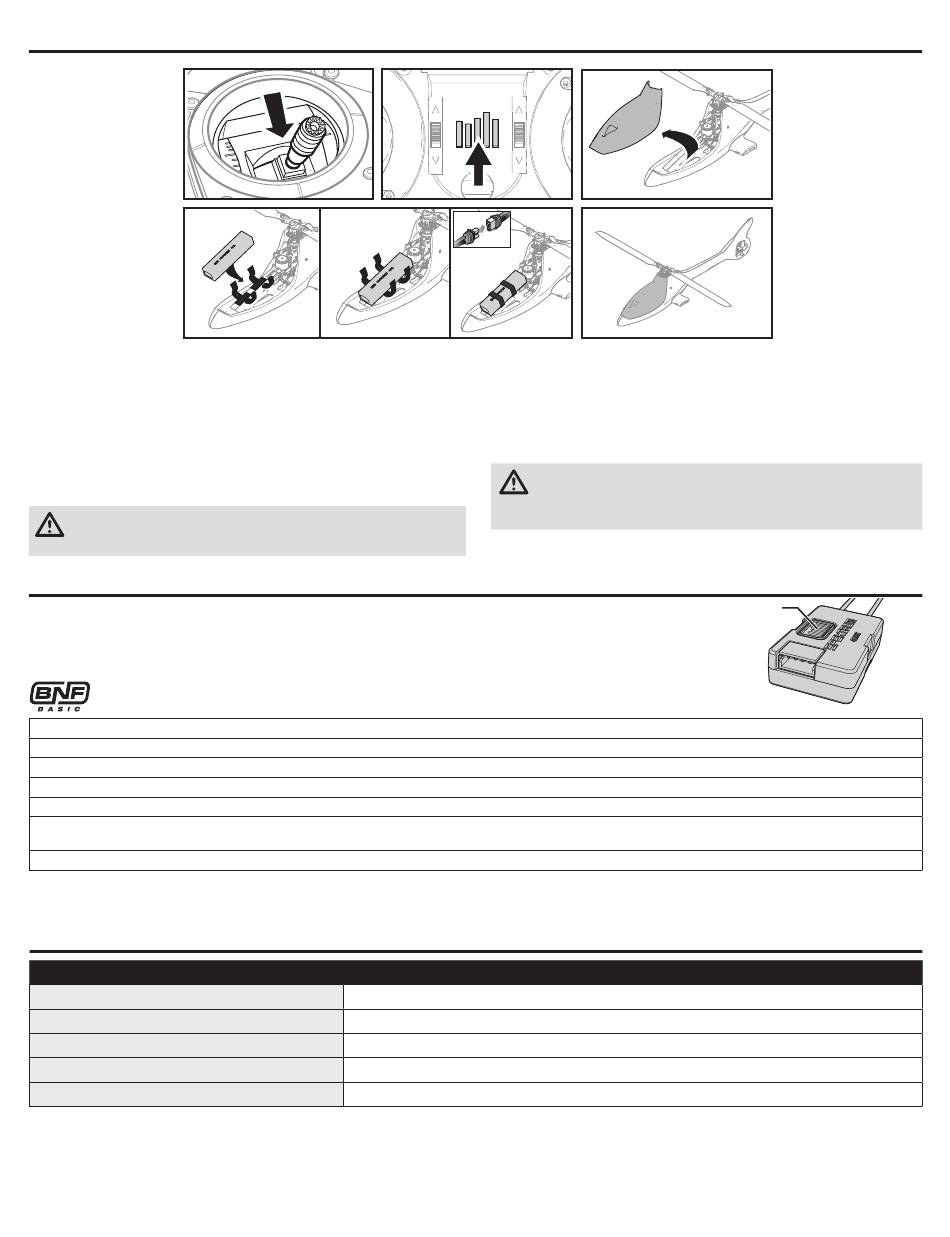

Installing The Flight Battery; Transmitter And Receiver Binding - Horizon Hobby Blade Eclipse 360 BNF Basic Bedienungsanleitung

Installing the Flight Battery

1. Lower the throttle.
2. Power on the transmitter.
3. Center all trims.
4. To allow the ESC to arm and to keep rotors from initiating at startup, turn on
throttle hold and normal flight mode before connecting the flight battery.
5. Attach hook material to the helicopter frame and loop material to the battery.
6. Install the flight battery on the helicopter frame. Secure the flight battery with
the hook and loop straps.
CAUTION: Make sure the flight battery, wire and connector does not come
into contact with the motor. Failure to do so will cause the motor, ESC and
battery to overheat, resulting in a crash causing property damage and injury.

Transmitter and Receiver Binding

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier)
code of a single specific transmitter. You need to 'bind' your chosen Spektrum
ogy equipped aircraft transmitter to the receiver for proper operation. The receiver on the Eclipse 360
Smart helicopter is located on the bottom frame tray. The bind button is located in the center of the case,
off to one side, with the Spektrum logo (bars) on the surface of the button.
Your BNF aircraft must be bound to your transmitter to establish a connection, follow the directions below.
®
1. Program your transmitter using the Transmitter Setup found in this manual.
2. Lower the throttle stick to the lowest position, change the flight mode to normal mode (stability mode) and activate throttle hold. Set all trims to the center position.
3. Power off the transmitter, or power off the RF signal if using a Spektrum NX or iX series transmitter.
4. Connect the flight battery to the ESC.
5. Press the bind button on the remote receiver to initiate binding. The orange LED on the receiver will begin flashing rapidly to indicate bind mode.
6. Follow the procedures of your specific transmitter to enter bind mode. The system will connect within a few seconds. Once connected, the orange LED on the
receiver will come on solid orange.
7. Disconnect the flight battery and power off your transmitter (or power off RF for iX series Spektrum transmitters).
If you encounter problems, obey binding instructions and refer to transmitter troubleshooting guide for other instructions.
If needed, contact the appropriate Horizon Product Support office.
LED Indicator on Flight Controller
Yellow Flash (during calibration)
Red Flash (during calibration)
EN
Slow Green Flash
Slow Red Flash
Slow Cyan Flash
7. Bind your transmitter to the helicopter to establish a connection. See the
Binding section below for more information.
8. Connect the battery cable to the ESC. The swashplate will center, indicating that
the unit is ready. The flight controller status LED will display a slow green flash
once initialization has been completed.
9. The helicopter motor will emit a series of tones, indicating the ESC is armed.
CAUTION: Always disconnect the Li-Po battery from the ESC power lead
when not flying to avoid over-discharging the battery. Batteries
discharged below the lowest approved voltage may become damaged,
resulting in loss of performance and potential fire when batteries are charged.
DSM2 /DSMX technol-
™ ® ®
Indicator Description
Failsafe Active
Forward Programming Mode
Calibration proceeding normally
Calibration Error, FC not level or is being moved during calibration
6
Bind Button
Ready to Fly
