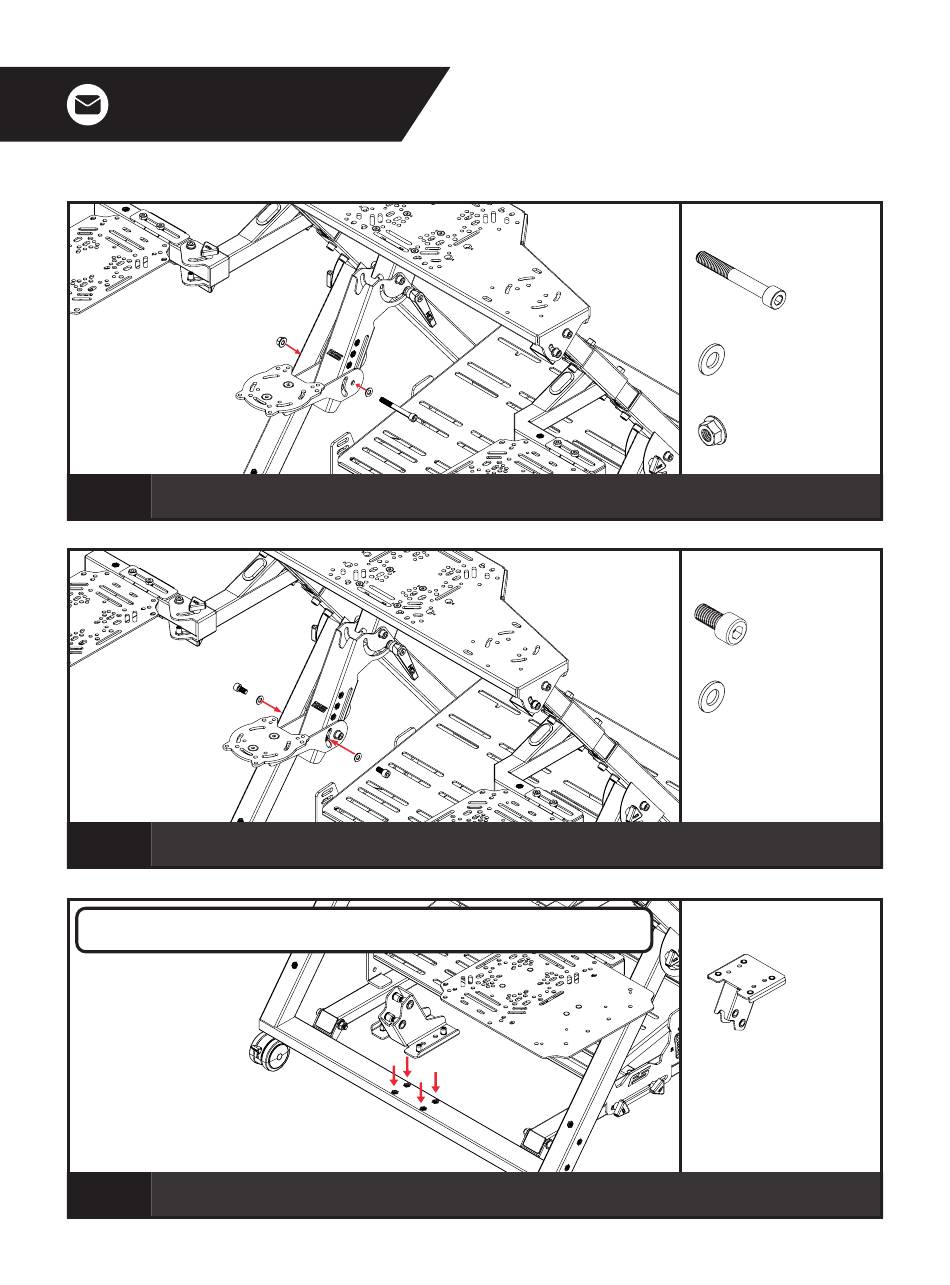

Bolt through and secure with M8 Bolt, Washer and Flange Nut.
32
Align the curved slots on the Pre-Assembled HOTAS Plate with the threaded inserts on the HOTAS
Swivel Bracket. Bolt through and secure with 2 x M8 Bolts and Washers.
OPTIONAL: EXTENDED HOTAS CENTRE POLE INSTALLATION
(RECOMMENDED FOR EXTENDED HOTAS STICKS)
33
Align the mounting holes on the HOTAS Mounting Bracket with the threaded inserts on the Frame.
22
PARTS:
• • 1 x M8 70mm Sockethead Bolts
• • 1 x M8 Washer
• • 1 x M8 Flange Nut
PARTS:
• • 2 x M8 16mm Sockethead Bolts
• • 2 x M8 Washers
PARTS:
• • 1 x HOTAS Mounting Bracket
