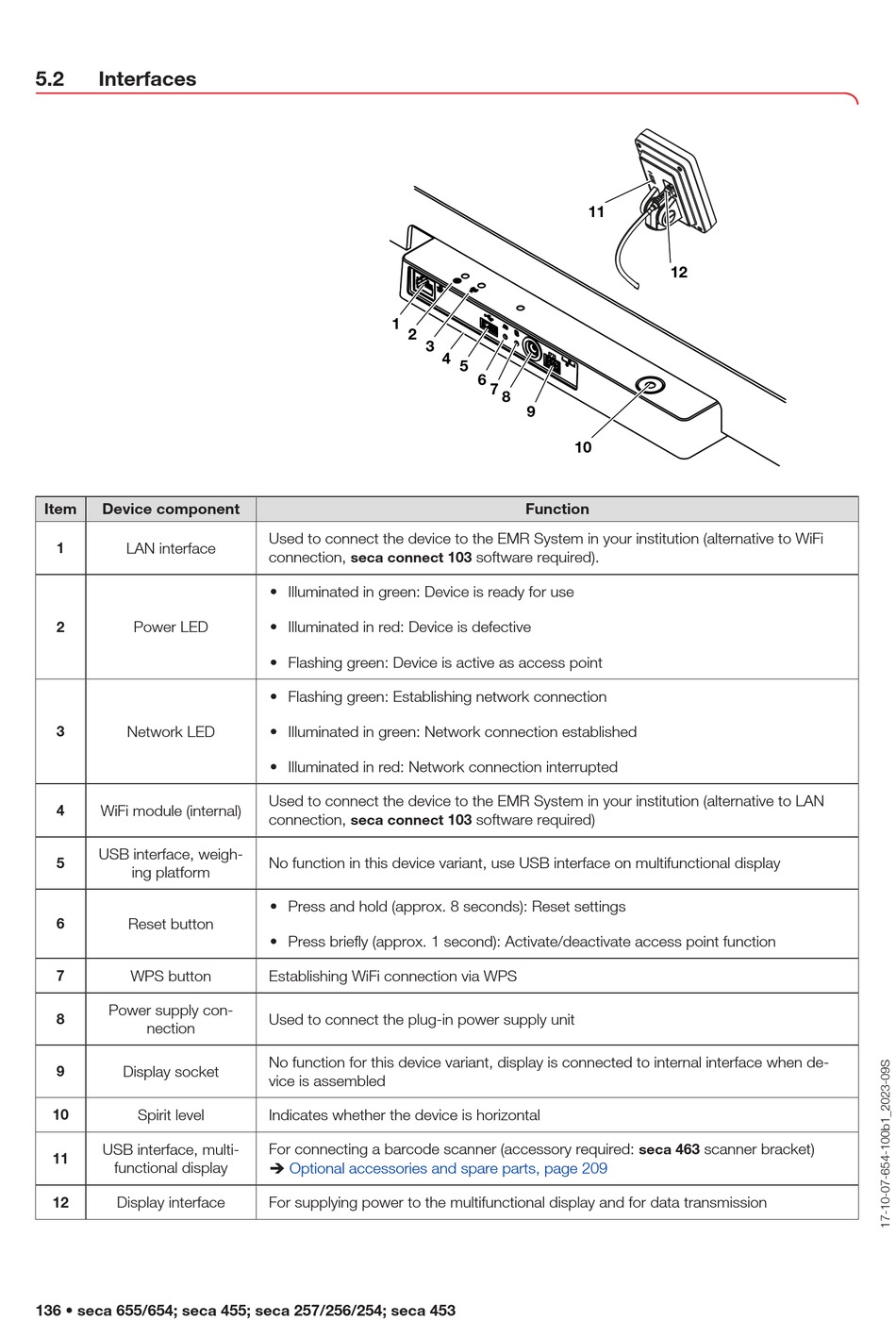

5.2 Interfaces
Item Device component
1 LAN interface
2 Power LED
3 Network LED
WiFi module (internal)
4
USB interface, weigh-
5
ing platform
6 Reset button
7 WPS button
Power supply con-
8
nection
Display socket
9
10 Spirit level
USB interface, multi-
11
functional display
Display interface
12
136 • seca 655/654; seca 455; seca 257/256/254; seca 453
1
2
3
Used to connect the device to the EMR System in your institution (alternative to WiFi
connection,
seca connect 103
• Illuminated in green: Device is ready for use
• Illuminated in red: Device is defective
• Flashing green: Device is active as access point
• Flashing green: Establishing network connection
• Illuminated in green: Network connection established
• Illuminated in red: Network connection interrupted
Used to connect the device to the EMR System in your institution (alternative to LAN
connection, seca connect 103
No function in this device variant, use USB interface on multifunctional display
• Press and hold (approx. 8 seconds): Reset settings
• Press briefly (approx. 1 second): Activate/deactivate access point function
Establishing WiFi connection via WPS
Used to connect the plug-in power supply unit
No function for this device variant, display is connected to internal interface when de-
vice is assembled
Indicates whether the device is horizontal
For connecting a barcode scanner (accessory required:
è Optional accessories and spare parts, page 209
For supplying power to the multifunctional display and for data transmission
11
4
5
6
7
8
9
10
Function
software required).
software required)
12
seca 463 scanner bracket)
