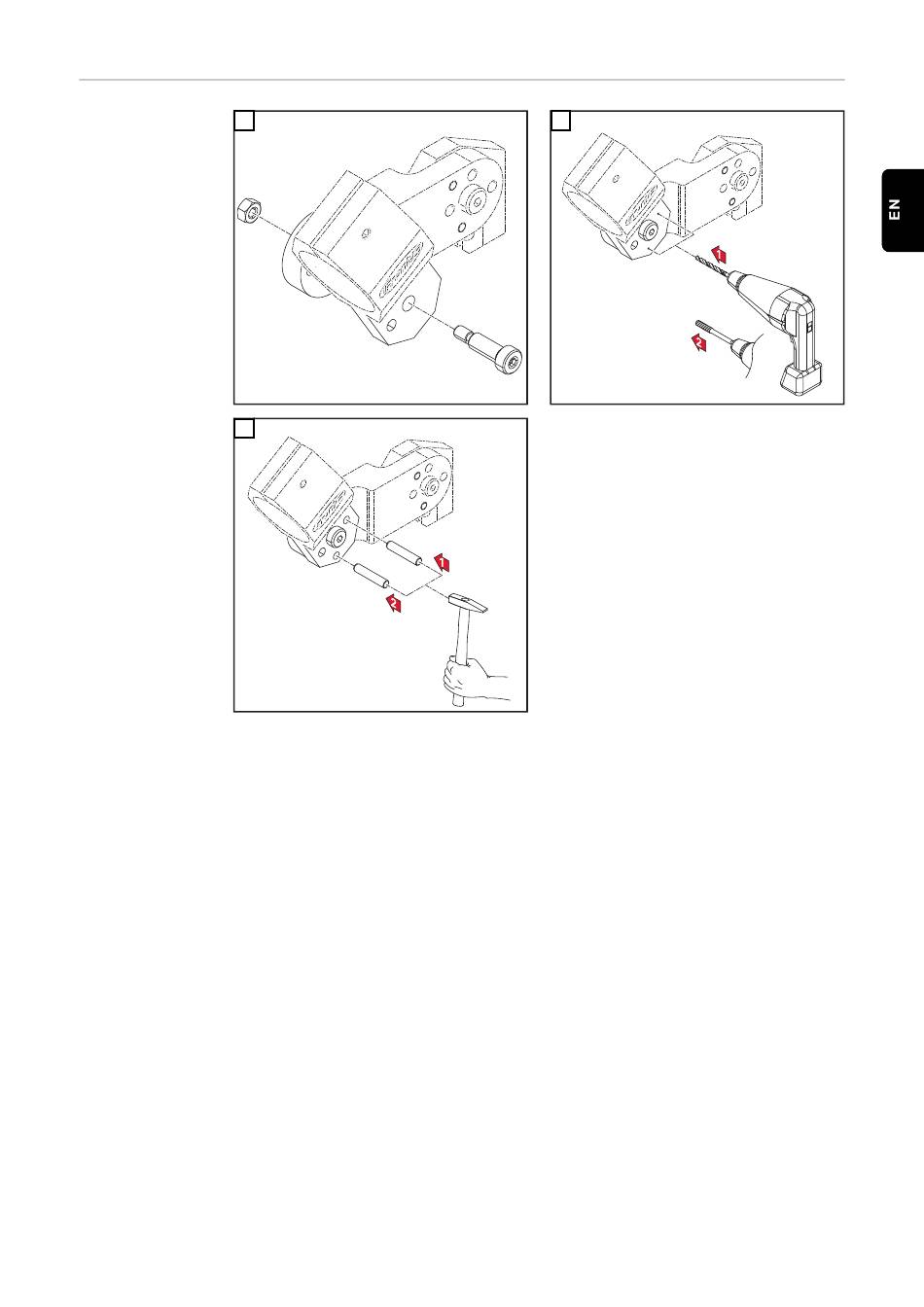

Fitting the
1
mounting bra-
cket (individual-
ly)
3
IMPORTANT! Drill a Ø5.8 mm hole for the mounting bracket and use a reamer to
enlarge the hole so it can accommodate the dowel pin (Ø6G7).
IMPORTANT! The mounting bracket must be fitted using an M8 shoulder screw.
The required bracket must then be positioned and two dowel pins (Ø6 mm) dri-
ven in to secure it.
2
Reibahle /
Reamer /
Alésoir /
Alesatore /
Escariador /
Alargador
Ø6G7
Bohrer /
Drill /
Foret /
Punta del
trapano /
Broca /
Broca
Ø5,8
