Start-up
Device concept The robot hosepack Robacta Twin Compact is distinguished by small dimensions
for the best possible accessibility to weld seams, low weight and high temperatu-
re stability. Through a closed gas conduit the gas is led to the robot torch neck
free from loss. In addition, the robot hosepack Robacta Twin Compact is equip-
ped with a separate compressed air piping for purging the robot torch neck.
The robot torch neck Robacta Twin Compact possesses a revolutionary connec-
tion system and is distinguished by small dimensions and so the best possible ac-
cessibility. By the water-cooled gas nozzle the system is suitable for the
MIG/MAG high-performance welding.

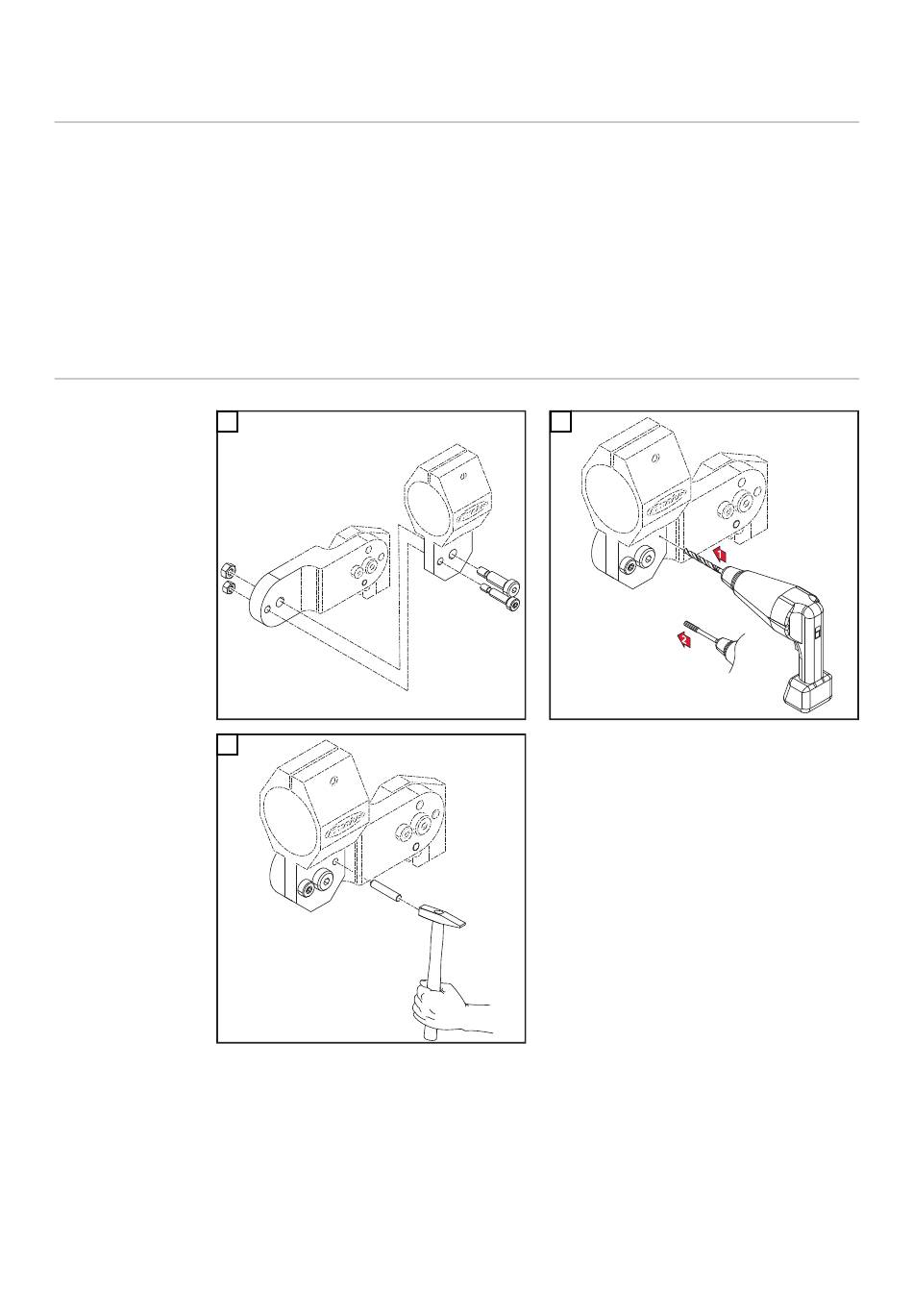

Fitting the
1
mounting bra-
cket (standard)
3
IMPORTANT! Drill a Ø5.8 mm hole for the mounting bracket and use a reamer to
enlarge the hole so it can accommodate the dowel pin (Ø6G7).
IMPORTANT! The mounting bracket must be fitted using an M8 shoulder screw
and an M6 screw. After screwing the mounting bracket in place, another dowel
pin (Ø6 mm) must be driven in to secure it.
26
2
Reibahle /
Reamer /
Alésoir /
Alesatore /
Escariador /
Alargador
Ø6G7
Bohrer /
Drill /
Foret /
Punta del
trapano /
Broca /
Broca
Ø5,8
