ENGLISH
4.5

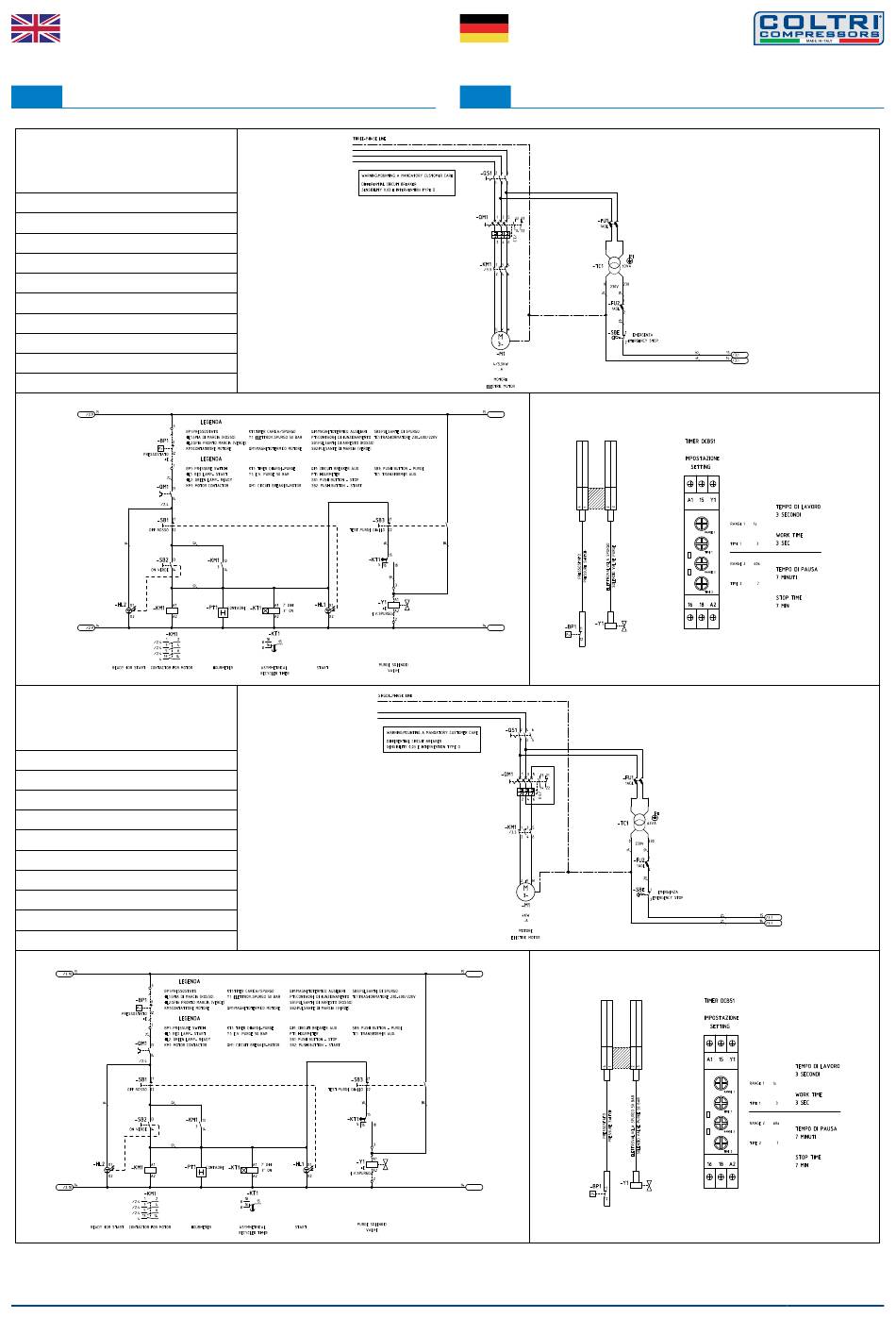

WIRING DIAGRAM

MCH-13-16/ET SWITCHBOARD WITH:
AUTOMATIC CONDENSATE DRAIN, AUTOSTOP,
START/STOP SWITCHES, HOURMETER
Diagram N° : 13-00001
Number phases end frequency : 3P+T 50/60HZ
Power supply control board : .. VAC
Voltage command circuit : 230VAC
Voltage signal circuit :
Total power control board : 4/5,5 KW
Total current equipment : A
Higher current equipment :
Power interruption : 6KA
Degree of protection : IP 54
MCH-13-16/EM SWITCHBOARD WITH:
AUTOMATIC CONDENSATE DRAIN, AUTOSTOP,
START/STOP SWITCHES, HOURMETER
Diagram N° : 13-00035
Number phases end frequency : 1P+T 50/60HZ
Power supply control board : .. VAC
Voltage command circuit : 230VAC
Voltage signal circuit :
Total power control board : 4/5,5 KW
Total current equipment : A
Higher current equipment :
Power interruption : 6KA
Degree of protection : IP 54
MU-SMART-0820
DEUTSCH
4.5

ELEKTRISCHER SCHALTPLAN

SMART
27 - 56
