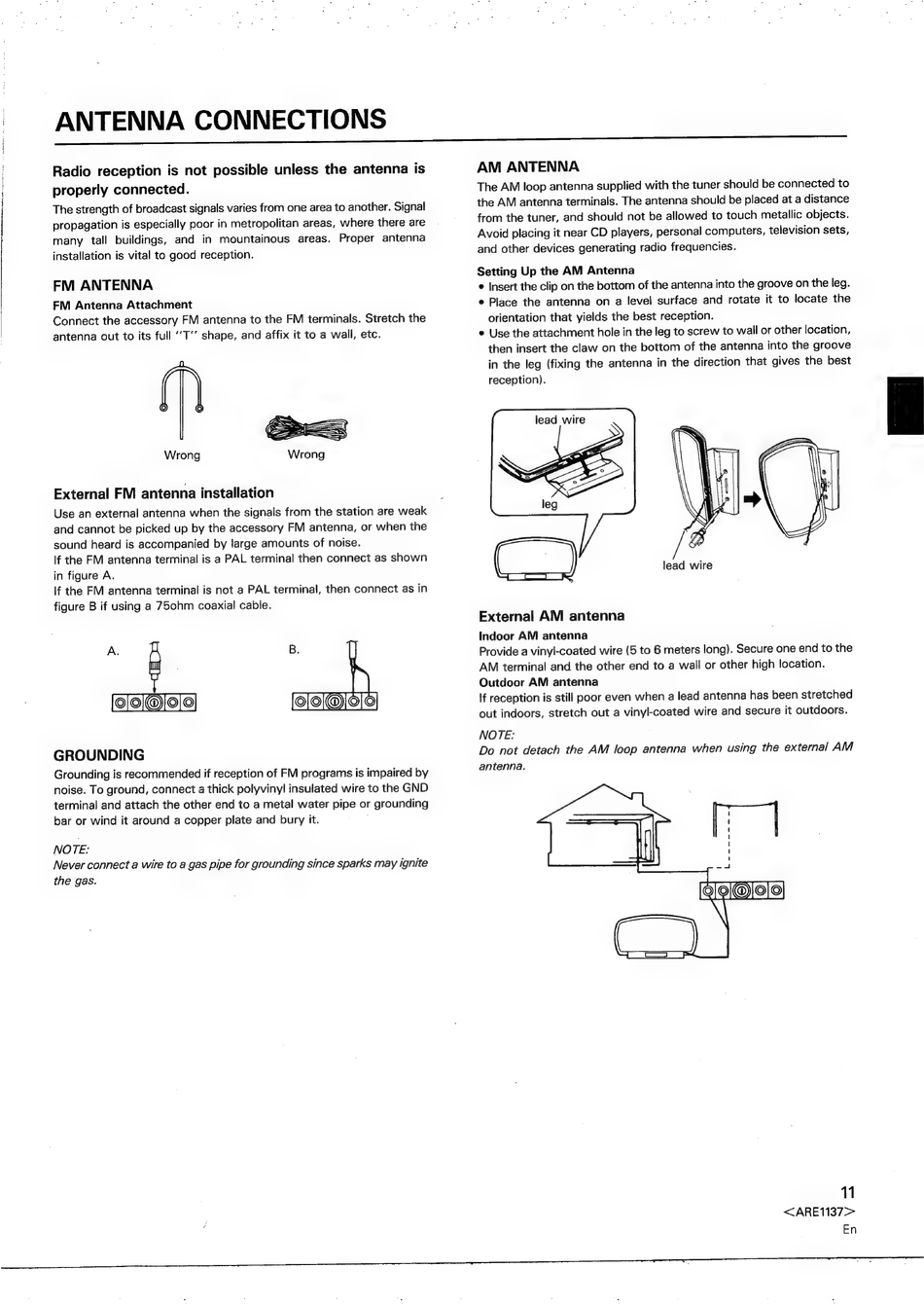

Pioneer F-Z4GO0L Bedienungsanleitung Seite 11

properly connected.
FM ANTENNA
FM Antenna Attachment
Connect the accessory FM antenna to the FM terminals. Stretch the
antenna out to its full ''T'' shape, and affix it to a wall, etc.
Wrong
External FM antenna installation
If the FM antenna terminal is a PAL terminal then connect as shown
in figure A.
If the FM antenna terminal is not a PAL terminal, then connect as in
figure B if using a 750hm coaxial cable.
A. : B.
©
fe
elo@ele BOOOE
GROUNDING
Grounding is recommended if reception of FM programs is impaired by
noise. To ground, connect a thick polyvinyl insulated wire to the GND
terminal and attach the other end to a metal water pipe or grounding
bar or wind it around a copper plate and bury it. ,
NOTE:
Never connect a wire to a gas pipe for grounding since sparks may ignite
the gas.
AM ANTENNA
Setting Up the AM Antenna
reception).
lead wire
lead wire
External AM antenna
Indoor AM antenna
Outdoor AM antenna
If reception is still poor even when a lead antenna has been stretched
out indoors, stretch out a vinyl-coated wire and secure it outdoors.
NOTE:
Do not detach the AM loop antenna
when using the external AM
antenna.
5
I Ceo
elol@lele
11
<ARE1137>
En
