Operation

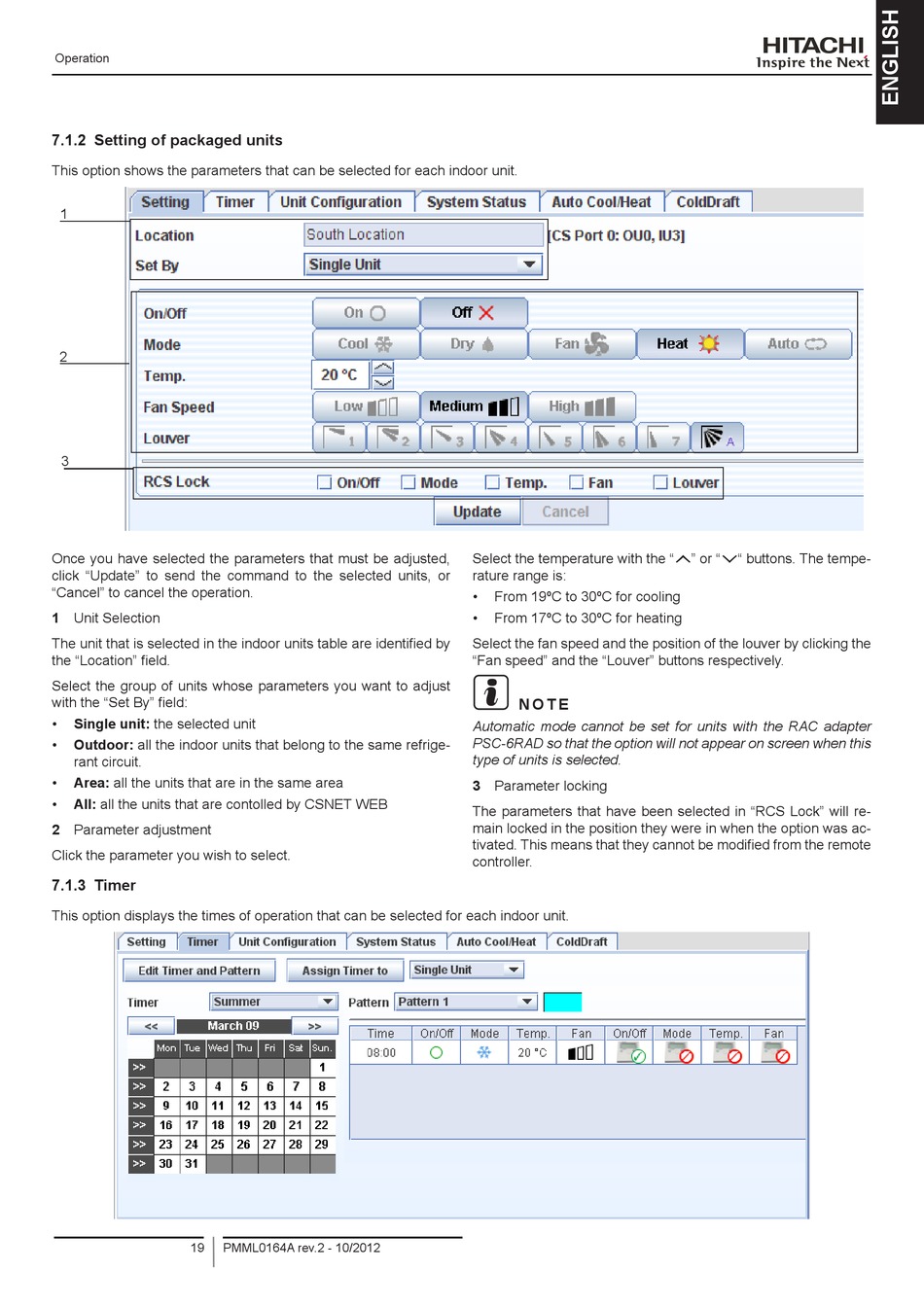

7.1.2 Setting of packaged units
This option shows the parameters that can be selected for each indoor unit.
1
2
3
Once you have selected the parameters that must be adjusted,
click "Update" to send the command to the selected units, or
"Cancel" to cancel the operation.
1 Unit Selection
The unit that is selected in the indoor units table are identified by
the "Location" field.
Select the group of units whose parameters you want to adjust
with the "Set By" field:
Single unit: the selected unit
•
• Outdoor: all the indoor units that belong to the same refrige-
rant circuit.
• Area: all the units that are in the same area
• All: all the units that are contolled by CSNET WEB
2 Parameter adjustment
Click the parameter you wish to select.
7.1.3 Timer
This option displays the times of operation that can be selected for each indoor unit.
19 PMML0164A rev.2 - 10/2012
Select the temperature with the "" or ">" buttons. The tempe-
rature range is:
• From 19ºC to 30ºC for cooling
• From 17ºC to 30ºC for heating
Select the fan speed and the position of the louver by clicking the
"Fan speed" and the "Louver" buttons respectively.
N O T E
Automatic mode cannot be set for units with the RAC adapter
PSC-6RAD so that the option will not appear on screen when this
type of units is selected.
3 Parameter locking
The parameters that have been selected in "RCS Lock" will re-
main locked in the position they were in when the option was ac-
tivated. This means that they cannot be modified from the remote
controller.
