Configuring the software

6.2 INITIAL CONFIGURATION

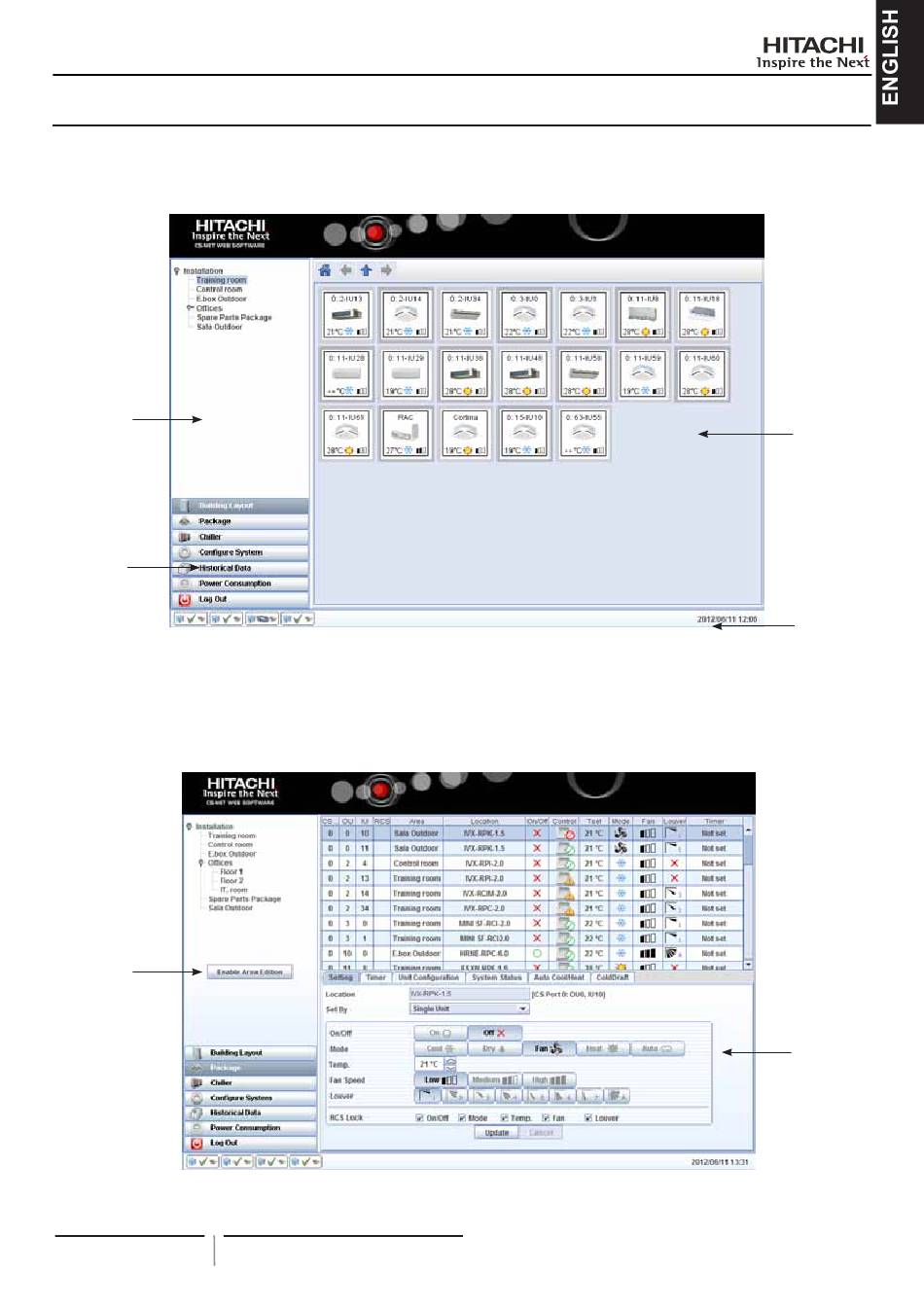

CSNET WEB has an initial screen that shows a virtual layout with the detected units.
By clicking on the unit icon a virtual remote controller will appear giving to the user the option of managing the units.
1
3
1 Area tree: installation tree with the different areas defined by
the user.
2 Units zone: lists of all the indoor units and chillers with a basic
state information.
CSNET WEB has also an extended view that allows more complex functions. That view has 6 clearly differentiated areas:
1
1 Edition of area tree: Allows you to edit the Area Tree
15 PMML0164A rev.2 - 10/2012
3 Main options: gives access to the installation data view (Chi-
ller and/or Package), the configuration of CSNET WEB, the
Historical Data and the Power Consumption.
4 HARC-WEB Status: show the current state of four HARC-
WEB connections and if there are automatic updates avai-
lable.
2 Operation panels: Control area for the operation of units.
2
4
2
