Dimensions Burner Description - elco VECTRON L 02.120 DUO Betriebsanleitung

Overview
Dimensions

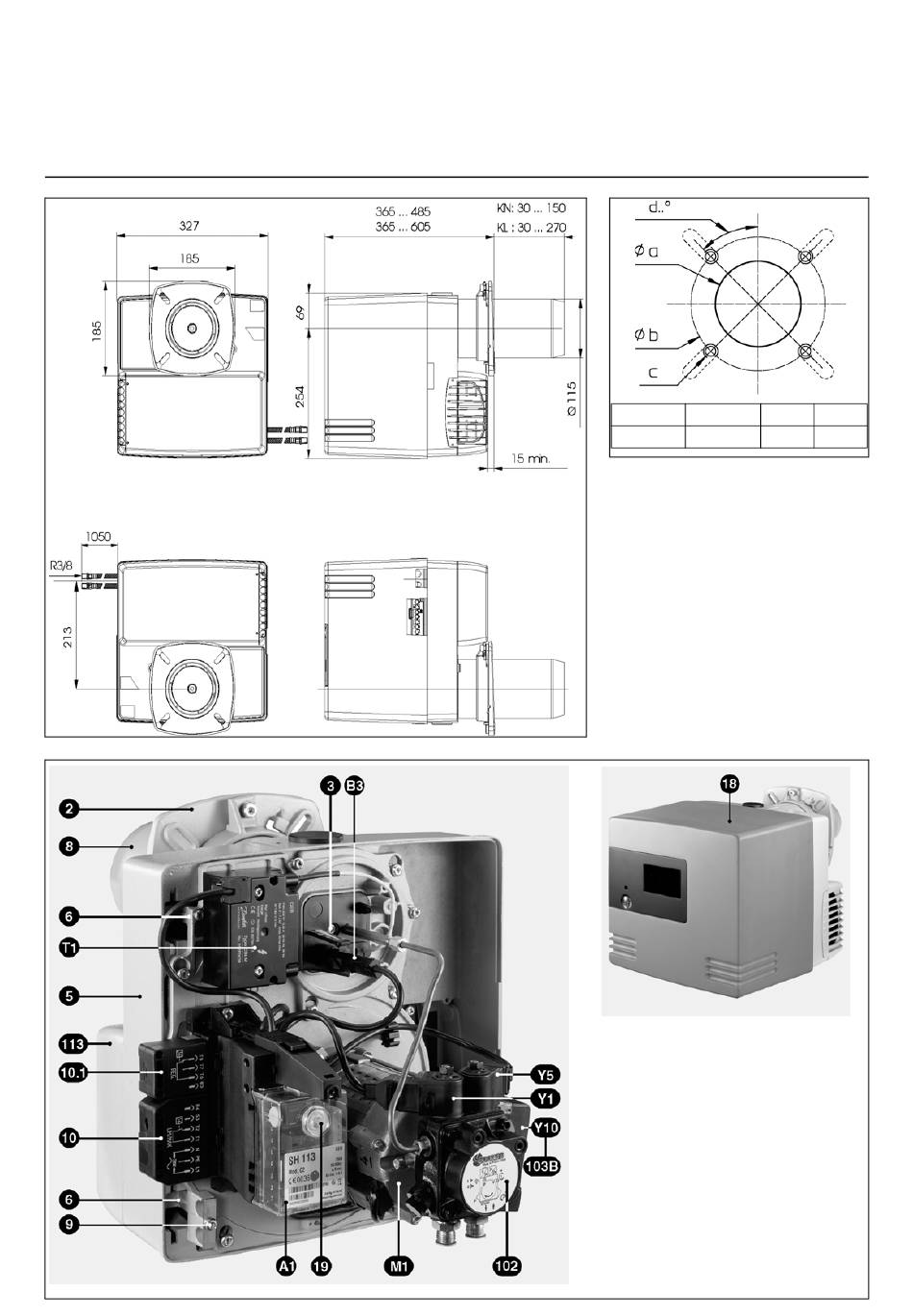

Burner description
46 12/2007 - Art. Nr. 13 023 653A
Ø a Ø b
120...135 150...180
Bore holes in the
boiler mounting plate
Y10 Air flap servomotor
A1 Automatic combustion control unit
B3 Flame monitor
M1 Blower and pump motor
T1 Ignition transformer
2 Burner flange
3 Adjusting screw, dimension Y
5 Housing
6 Equipment plate fastener
8 Burner pipe
9 Oil hose clamp
10 7-pin connector
10.1 4-pin connector
18 Burner hood
19 Release knob
102 Oil pump with
Y1 Solenoid valve, 1st stage
Y5 Solenoid valve, 2nd stage
113 Air intake box
c d
M8 45°
