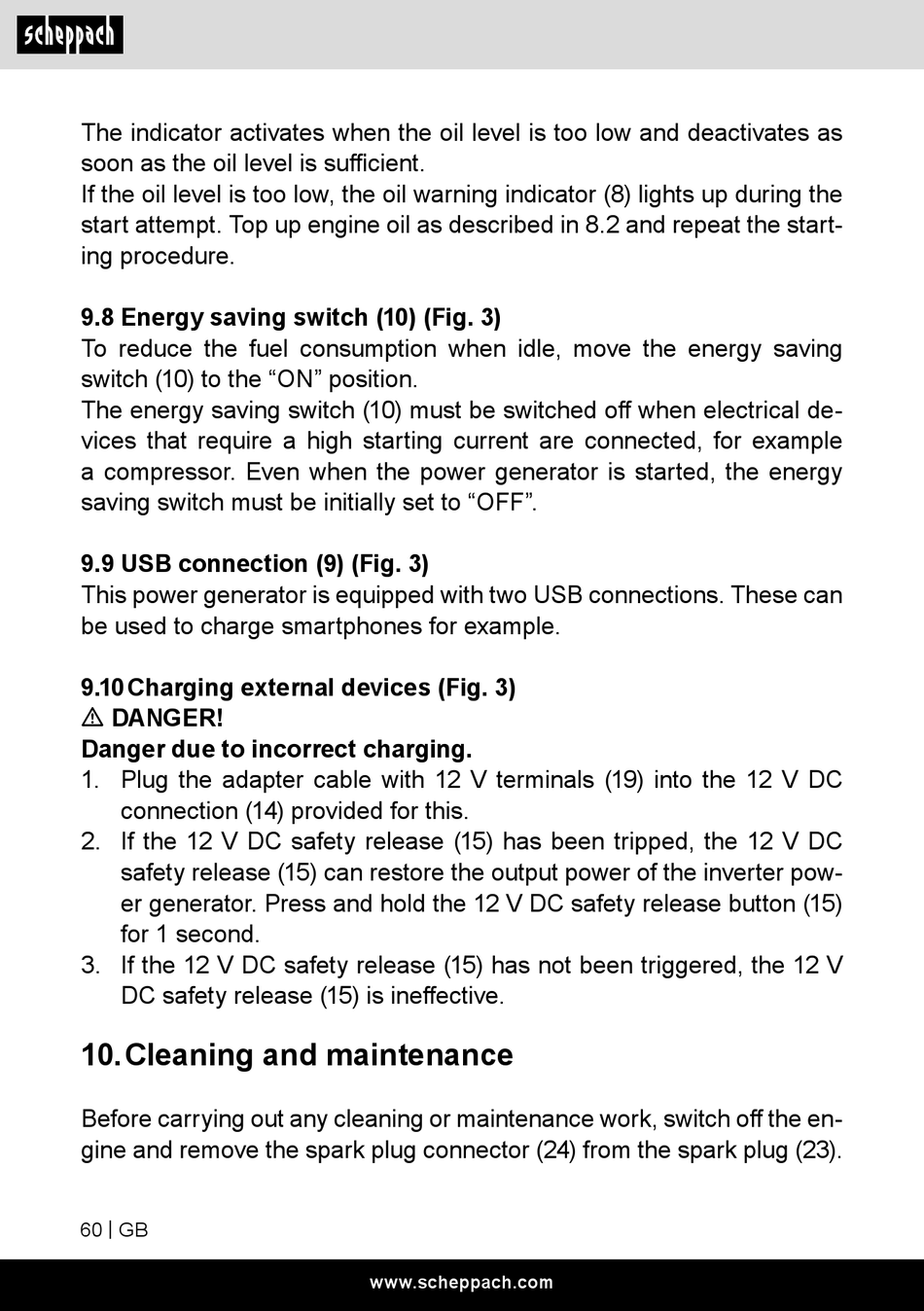

Cleaning And Maintenance - Scheppach IGT3500 Original Bedienungsanleitung

The indicator activates when the oil level is too low and deactivates as
soon as the oil level is sufficient.
If the oil level is too low, the oil warning indicator (8) lights up during the
start attempt. Top up engine oil as described in 8.2 and repeat the start-
ing procedure.
9.8 Energy saving switch (10) (Fig. 3)
To reduce the fuel consumption when idle, move the energy saving
switch (10) to the "ON" position.
The energy saving switch (10) must be switched off when electrical de-
vices that require a high starting current are connected, for example
a compressor. Even when the power generator is started, the energy
saving switch must be initially set to "OFF".
9.9 USB connection (9) (Fig. 3)
This power generator is equipped with two USB connections. These can
be used to charge smartphones for example.
9.10 Charging external devices (Fig. 3)
m DANGER!
Danger due to incorrect charging.
1. Plug the adapter cable with 12 V terminals (19) into the 12 V DC
connection (14) provided for this.
2. If the 12 V DC safety release (15) has been tripped, the 12 V DC
safety release (15) can restore the output power of the inverter pow-
er generator. Press and hold the 12 V DC safety release button (15)
for 1 second.
3. If the 12 V DC safety release (15) has not been triggered, the 12 V
DC safety release (15) is ineffective.

10. Cleaning and maintenance

Before carrying out any cleaning or maintenance work, switch off the en-
gine and remove the spark plug connector (24) from the spark plug (23).
