2.1.3. Navigieren in den Menüs
Number of I/O units and
sensors connected to
master unit

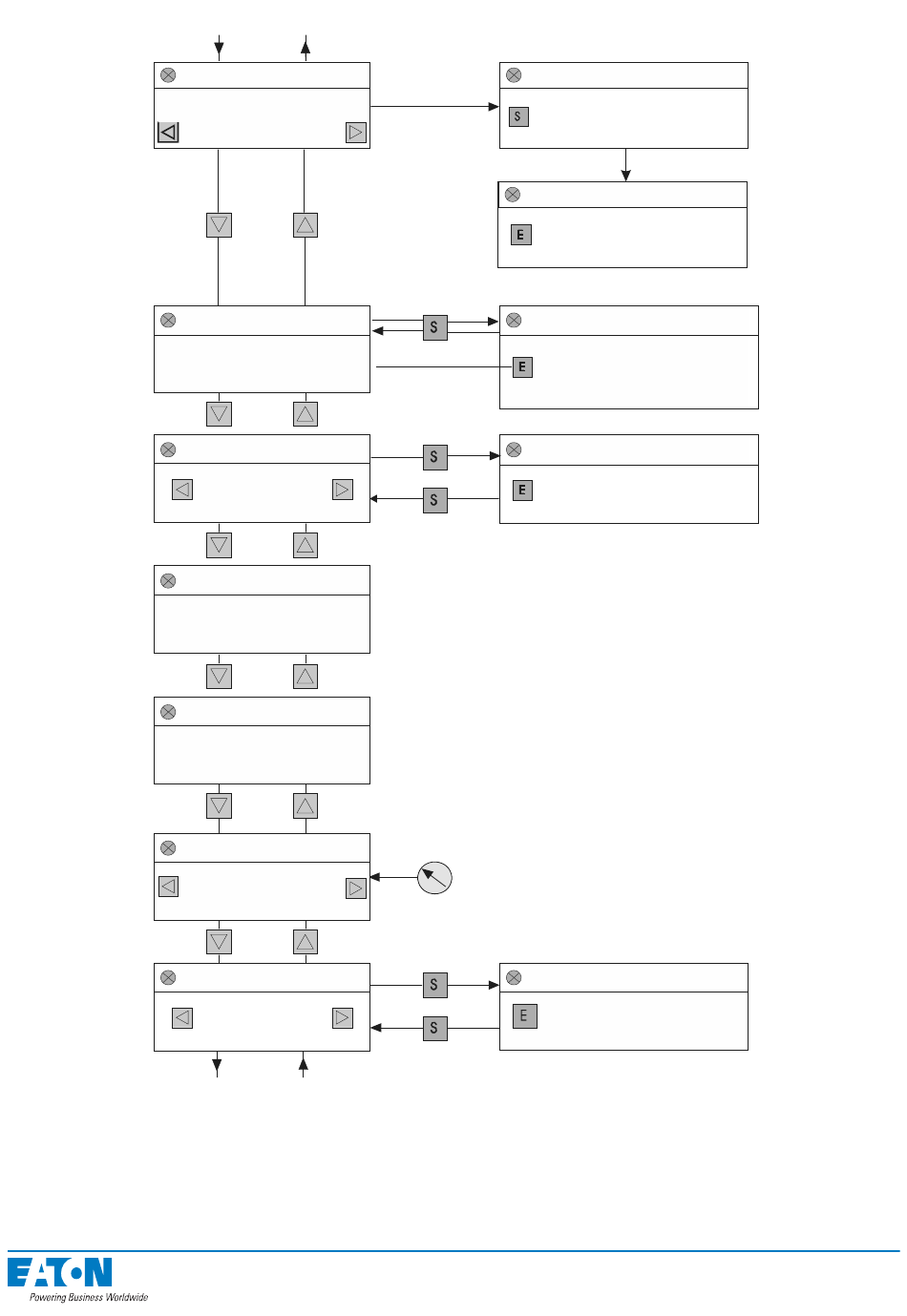

Abbildung: Navigieren in den Betriebsarten-Menüs
RUN
Information of last
activation
(I/O unit no. / sensor no.)
INSTALL
INFO
Number of sensors
in specific
I/O unit
TEMP SET
Reserved for
future use
TEMP
Reserved for
future use
CURRENT
Indication of pick-up
current and
instantaneous currents
ERROR CODE
Sensor no. or
error code
RUN
Use push-button for
reset I/O units indicators
and trip relays
RUN
Use push-button for
clearing the memory
INSTALL
Use push-button for
configurate the system
INFO
Use push-button for check
number of sensors connected
to active I/O unit
Use the trimmer for adjust
the level of pick-up current
ERROR CODE
Use push-button for
clearing error codes (one
error code in time)
