Measuring Process - Dimplex La 33Tpr Wartungsanleitung

English

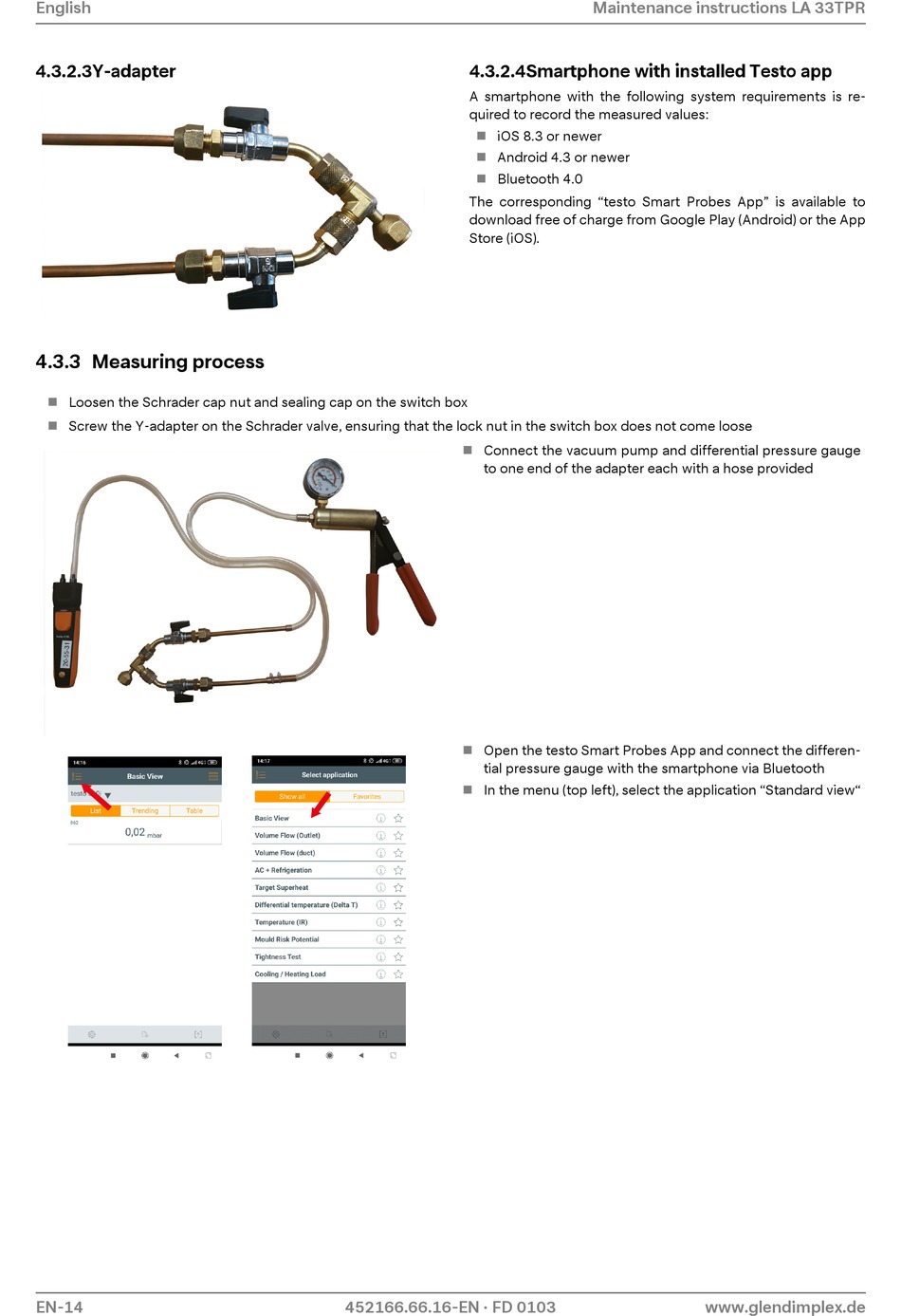

4.3.2.3Y-adapter

4.3.3 Measuring process

Loosen the Schrader cap nut and sealing cap on the switch box

Screw the Y-adapter on the Schrader valve, ensuring that the lock nut in the switch box does not come loose

EN-14
4.3.2.4Smartphone with installed Testo app
A smartphone with the following system requirements is re-
quired to record the measured values:
iOS 8.3 or newer

 Android 4.3 or newer
Bluetooth 4.0

The corresponding "testo Smart Probes App" is available to
download free of charge from Google Play (Android) or the App
Store (iOS).
 Connect the vacuum pump and differential pressure gauge
to one end of the adapter each with a hose provided
Open the testo Smart Probes App and connect the differen-

tial pressure gauge with the smartphone via Bluetooth
 In the menu (top left), select the application "Standard view"
452166.66.16-EN · FD 0103
Maintenance instructions LA 33TPR
www.glendimplex.de
