Adjustments
PROCEDURE
Caution with adjustments at the device, do not grip into moveable parts.
Danger of injury the hands!
•
To adjust the respective nominal width, first remove the safety clips at the socket pin and then pull the socket pin
(Pos.1) out.
•
Position bracket holder (marking) at the respective nominal width (Fig. 2).
•
Insert the socket pin (Pos.1) again into respective hole.
•
Secure socket pin (Pos.1) again with safety clip.
Take notice, that all three brackets are adjusted to the same nominal width.
Slipping danger of gripping good!

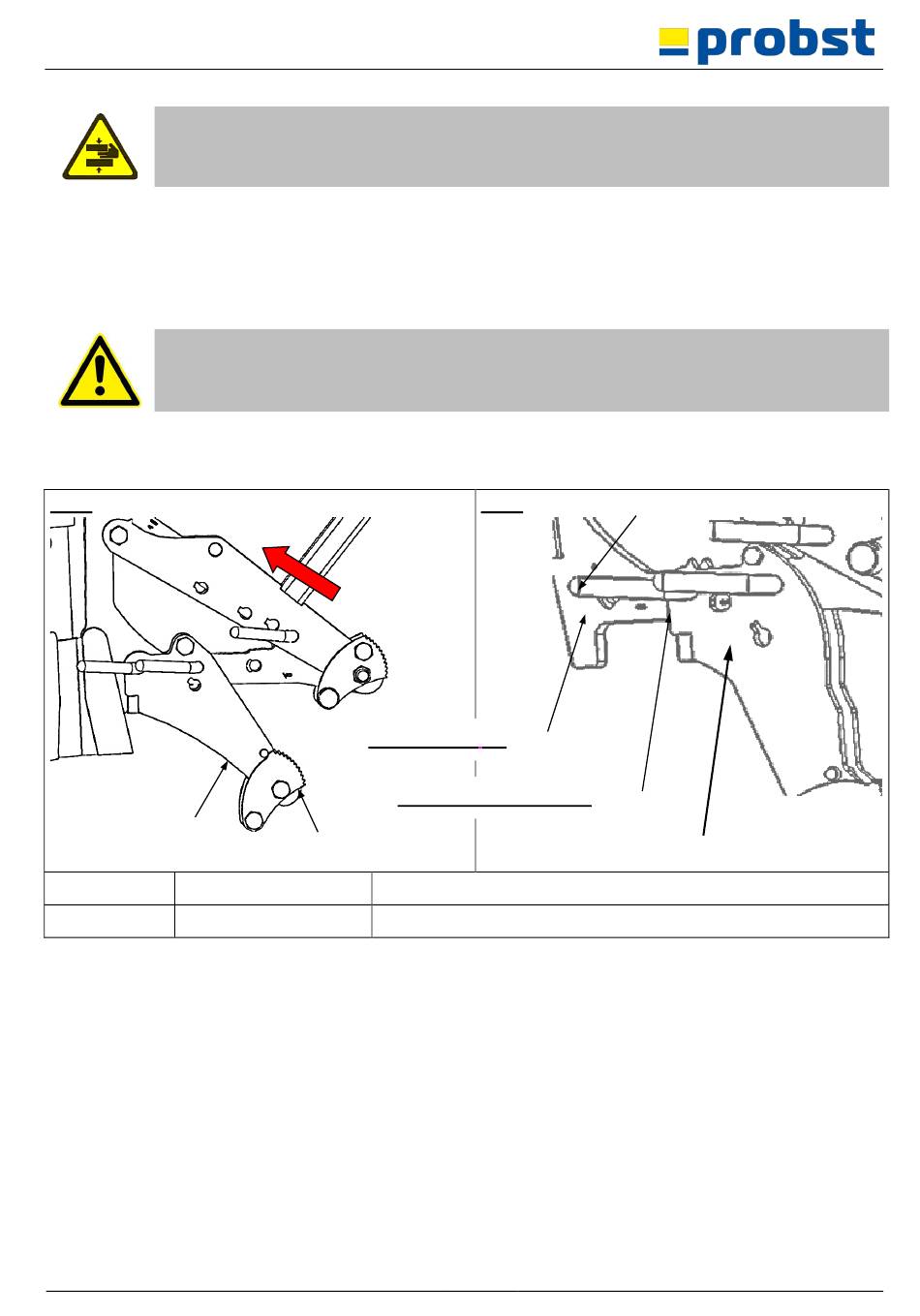

5.1.2 Bracket III
Fig. 3
Bracket holder
Variant: Application for:
Bracket III manholes / cones
*
= (NW) Nominal width of gripping goods
** = Tolerance ± 10 mm (± 7/16")
54000041
Fig. 4
Nominal width
625
Nominal width
Display
Bracket III
Stand-by position
*
NW (Inner-Ø) mm
**
625 - 800
17 / 33
Pos.
1
800
