Operation

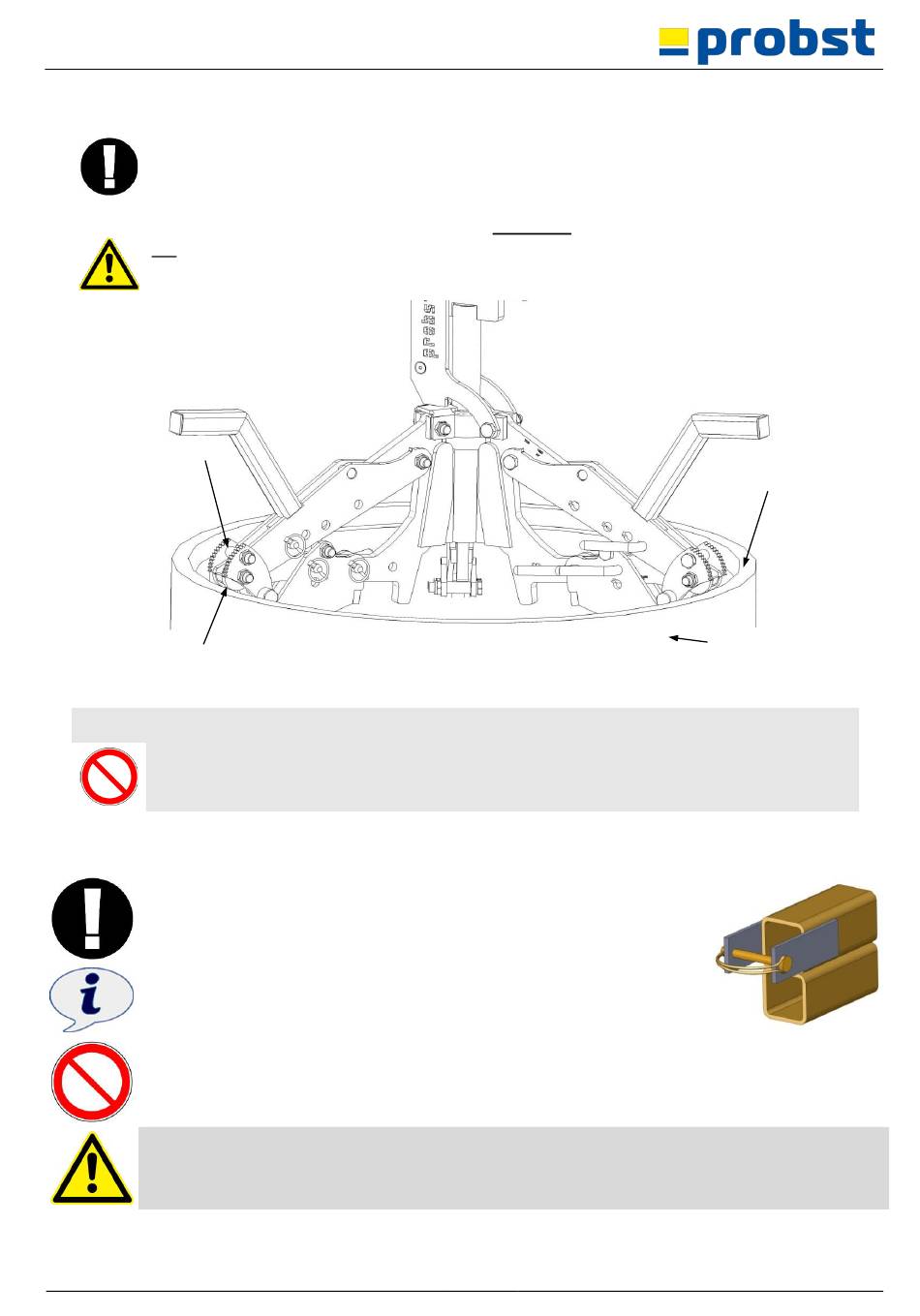

Nominal width 625 - 800 – Bracket III
All three stabilizers of the device must always rest on the upper edge of the gripping good
(manhole/cone)! (see Fig. 4)
As soon as only one of the three stabilizers has a larger distance than 15 mm (between stabilizer
lower edge and gripping good upper edge), it is in no case allowed, to lifted the gripping good !
TIP: Lower the device to the ground and try again.
Otherwise it exists slipping danger of the gripping good!
Upper bracket
(Bracket II)
Lower edge of
upper bracket
Lift the support frame slowly with gripped gripping good and avoid jerky movements!
Never drive with the support frame (excavator) and gripped-load on device
(SVZ-UNI) over uneven area faster than slow walking speed!
6.2.1.2

Manhole rings (according to DIN 4034-1 and 2) with overall height 250 mm

When gripping manhole rings with a minimum height of 250 mm, the
following accessory must be additionally attached: "Adapter set to support
of SVZ-UNI" (see adjacent figure).
Bestell-Nr.: 44000079
Adapter set may only be used if manhole rings with overall height 250 mm
are to be moved (and not generally for greater overall heights)!
Shaft rings with an overall height of less than 250 mm must not be
gripped and transported!
The gripping of manhole rings (construction height 250 mm) WITHOUT the above-mentioned
accessory (44000079) is prohibited. (→see picture 1).
Risk of slipping and damage to the load!
54000041
Fig. 4
→
22 / 33
Upper
edege of
gripping
good
Gripping good
(manhole)
