Operation

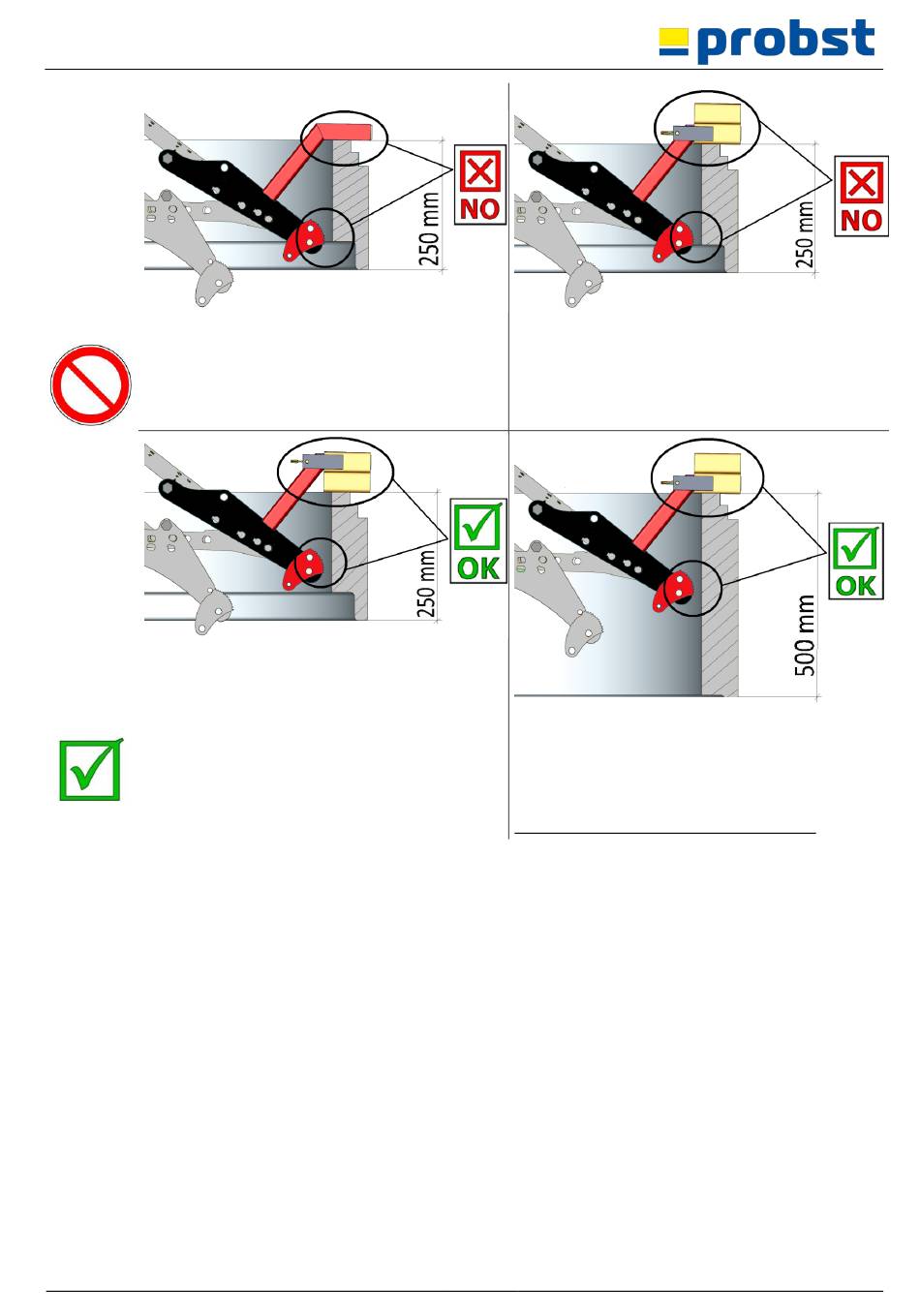

Fig. 1 shows a manhole ring with a minimum
overall height of 250 mm without "Adapter set
to support of SVZ-UNI". (44000079).
Fig. 3 shows a manhole ring with a minimum
overall height of 250 mm with correctly
inserted "Adapter set to support of SVZ-UNI".
(44000079).
54000041
Fig. 1
Fig. 3
23 / 33
Fig. 2
Fig. 2 shows a manhole ring with a minimum
overall height of 250 mm with incorrectly
inserted "Adapter set to support of SVZ-UNI".
(44000079).
Fig. 4
Fig. 4 shows a manhole ring with a higher
overall height than 250 mm (e.g. 500 mm) with
inserted "adapter set" (44000079) for normal
use of the SVZ-UNI.
Reason: so that the adapter set is not lost.
