Adjustments

5 Adjustments
Caution while adjustment work. There is danger of injuring the hands!
Use safety gloves! →
5.1

Gripping range adjustment

Adjust the brackets accordingly, depending on the inner diameter of the shaft elements
(manholes).
5.1.1 Bracket II

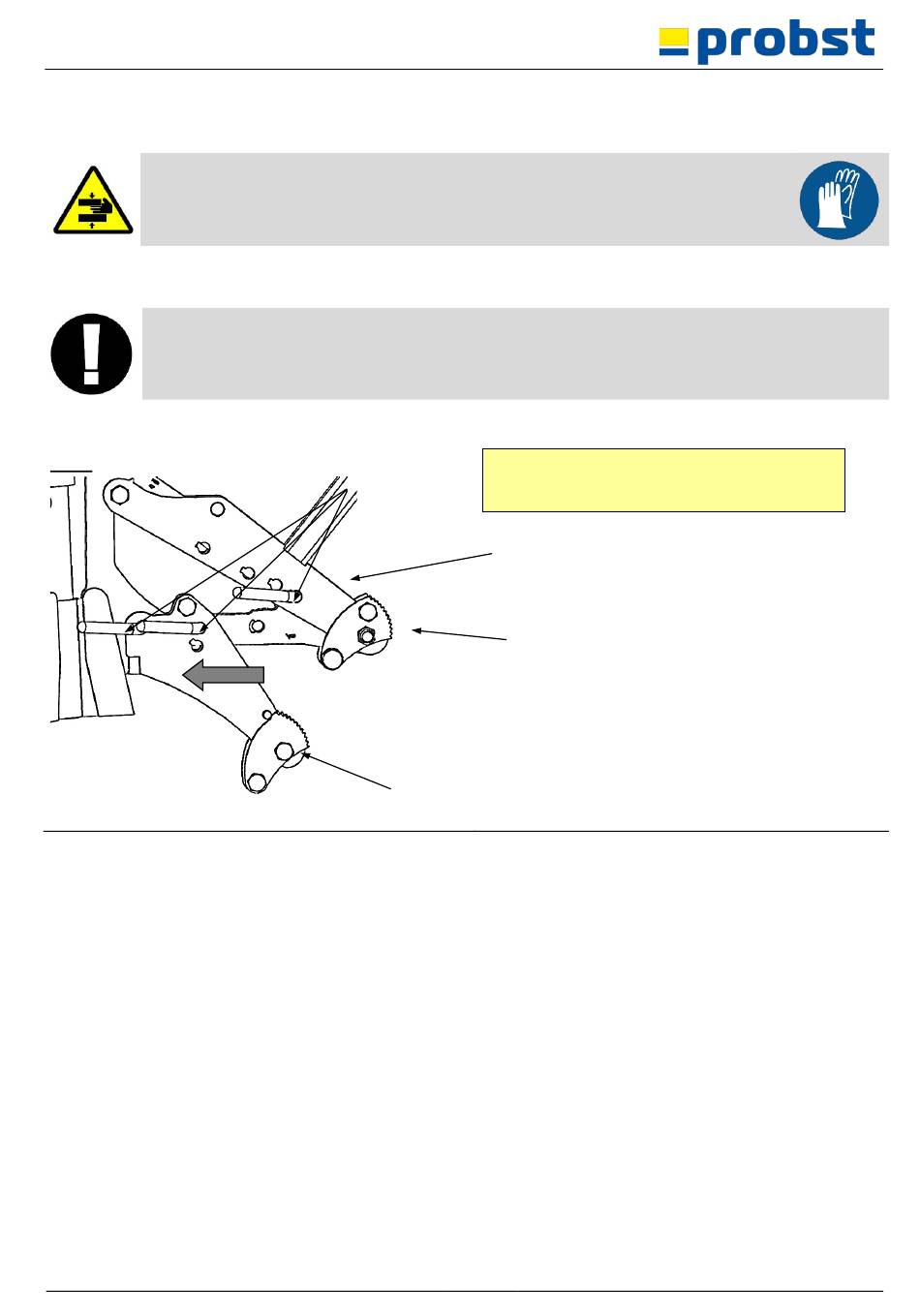

Fig. 1
54000041
When using the bracket II, move the bracket
III inwards (see arrow)!
Pos.1
Bracket holder
Bracket II
Bracket III
