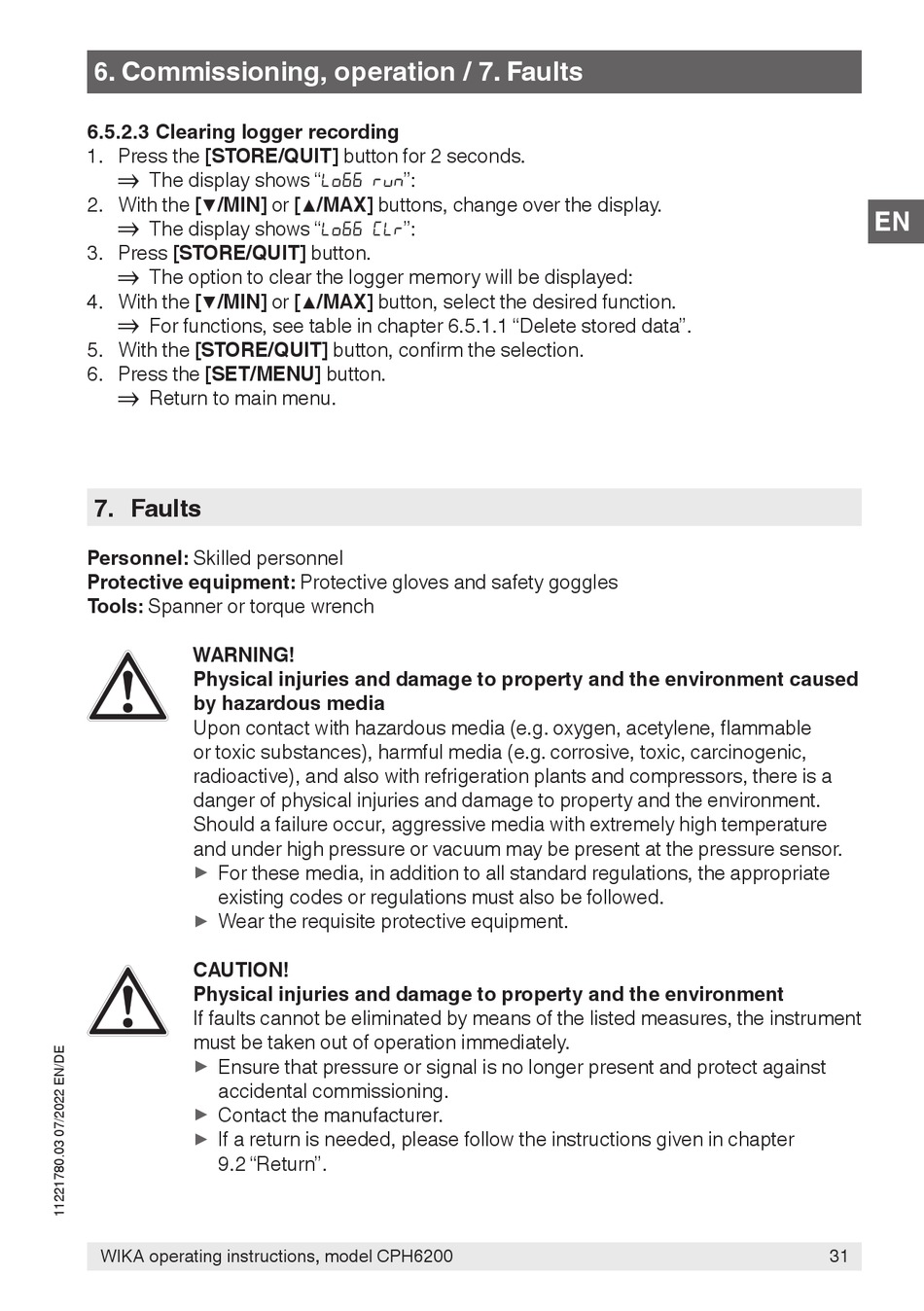

6. Commissioning, operation / 7. Faults
6.5.2.3 Clearing logger recording
1. Press the [STORE/QUIT] button for 2 seconds.
⇒
The display shows "Lo66 rvn":
2. With the [▼/MIN] or [▲/MAX] buttons, change over the display.
⇒
The display shows "Lo66 CLr":
3. Press [STORE/QUIT] button.
⇒
The option to clear the logger memory will be displayed:
4. With the [▼/MIN] or [▲/MAX] button, select the desired function.
⇒
For functions, see table in chapter 6.5.1.1 "Delete stored data".
5. With the [STORE/QUIT] button, confirm the selection.
6. Press the [SET/MENU] button.
⇒
Return to main menu.

7. Faults

Personnel: Skilled personnel
Protective equipment: Protective gloves and safety goggles
Tools: Spanner or torque wrench
WARNING!
Physical injuries and damage to property and the environment caused
by hazardous media
Upon contact with hazardous media (e.g. oxygen, acetylene, flammable
or toxic substances), harmful media (e.g. corrosive, toxic, carcinogenic,
radioactive), and also with refrigeration plants and compressors, there is a
danger of physical injuries and damage to property and the environment.
Should a failure occur, aggressive media with extremely high temperature
and under high pressure or vacuum may be present at the pressure sensor.
▶
For these media, in addition to all standard regulations, the appropriate
existing codes or regulations must also be followed.
▶
Wear the requisite protective equipment.
CAUTION!
Physical injuries and damage to property and the environment
If faults cannot be eliminated by means of the listed measures, the instrument
must be taken out of operation immediately.
▶
Ensure that pressure or signal is no longer present and protect against
accidental commissioning.
▶
Contact the manufacturer.
▶
If a return is needed, please follow the instructions given in chapter
9.2 "Return".
