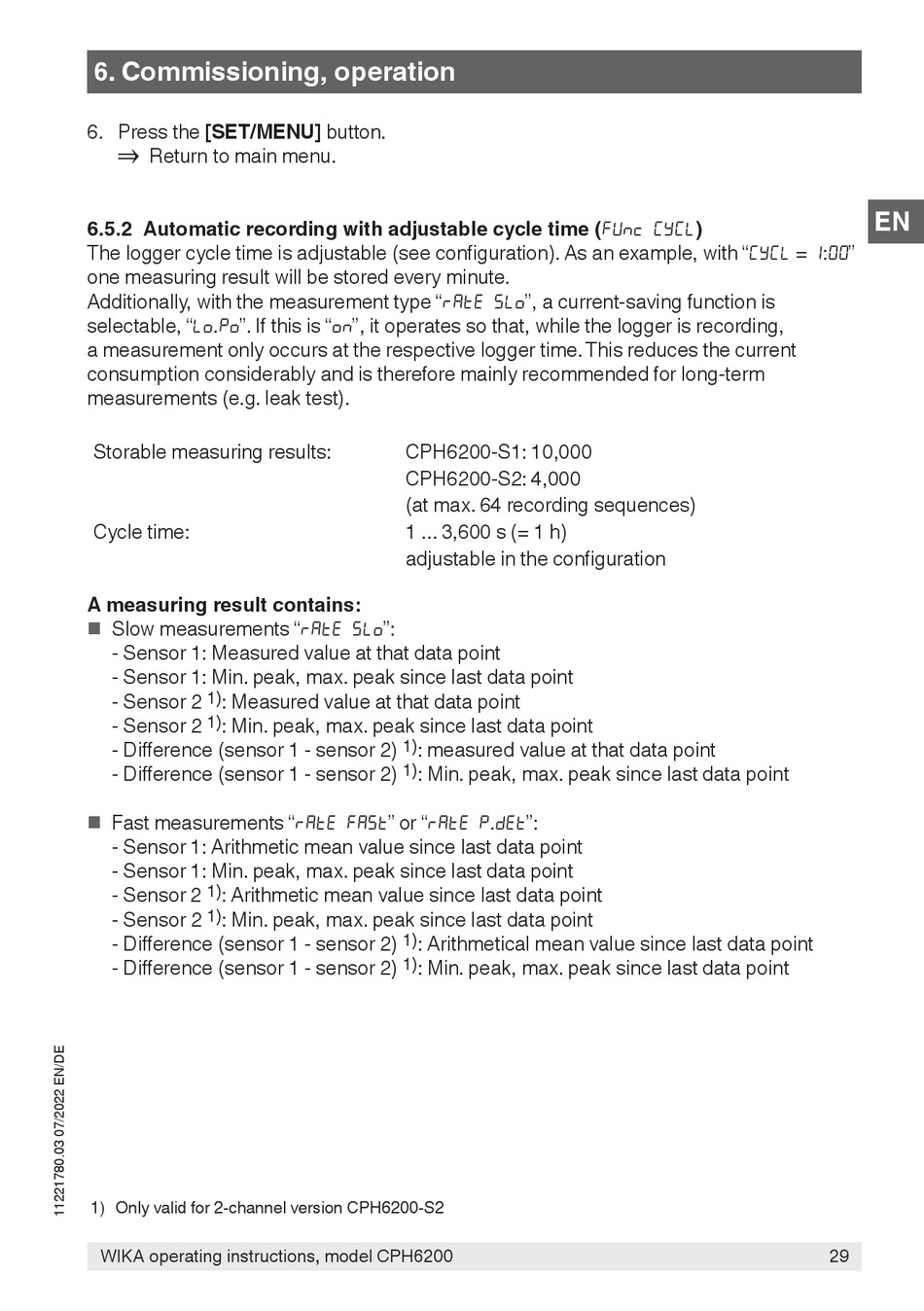

6.5.2 Automatic recording with adjustable cycle time (Func CYCL)

The logger cycle time is adjustable (see configuration). As an example, with "CYCL = 1:00"
one measuring result will be stored every minute.
Additionally, with the measurement type "rAtE SLo", a current-saving function is
selectable, "Lo.Po". If this is "on", it operates so that, while the logger is recording,
a measurement only occurs at the respective logger time. This reduces the current
consumption considerably and is therefore mainly recommended for long-term
measurements (e.g. leak test).
Storable measuring results:
Cycle time:
A measuring result contains:
Slow measurements "rAtE SLo":
■
- Sensor 1: Measured value at that data point
- Sensor 1: Min. peak, max. peak since last data point
1)
- Sensor 2 : Measured value at that data point
1)
- Sensor 2 : Min. peak, max. peak since last data point
- Difference (sensor 1 - sensor 2)
- Difference (sensor 1 - sensor 2)
Fast measurements "rAtE FASt" or "rAtE P.dEt":
■
- Sensor 1: Arithmetic mean value since last data point
- Sensor 1: Min. peak, max. peak since last data point
1)
- Sensor 2 : Arithmetic mean value since last data point
1)
- Sensor 2 : Min. peak, max. peak since last data point
- Difference (sensor 1 - sensor 2)
- Difference (sensor 1 - sensor 2)
1) Only valid for 2-channel version CPH6200-S2
