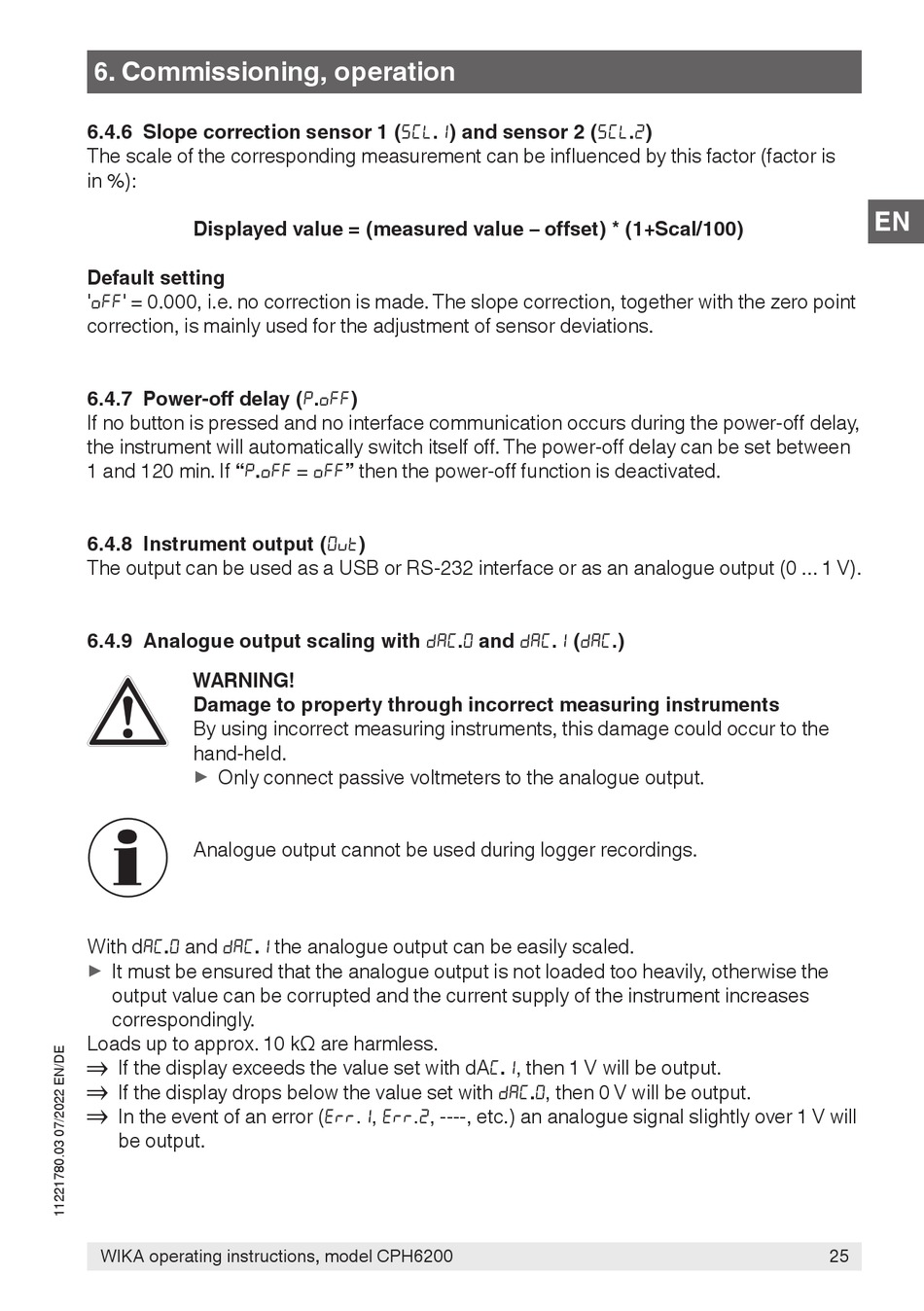

6. Commissioning, operation

6.4.6 Slope correction sensor 1 (SCL.1) and sensor 2 (SCL.2)

The scale of the corresponding measurement can be influenced by this factor (factor is
in %):
Displayed value = (measured value – offset) * (1+Scal/100)
Default setting
'off' = 0.000, i.e. no correction is made. The slope correction, together with the zero point
correction, is mainly used for the adjustment of sensor deviations.

6.4.7 Power-off delay (P.oFF)

If no button is pressed and no interface communication occurs during the power-off delay,
the instrument will automatically switch itself off. The power-off delay can be set between
1 and 120 min. If "P.oFF = oFF" then the power-off function is deactivated.

6.4.8 Instrument output (Ovt)

The output can be used as a USB or RS-232 interface or as an analogue output (0 ... 1 V).

6.4.9 Analogue output scaling with dAC.0 and dAC.1 (dAC.)

WARNING!
Damage to property through incorrect measuring instruments
By using incorrect measuring instruments, this damage could occur to the
hand-held.
▶
Only connect passive voltmeters to the analogue output.
Analogue output cannot be used during logger recordings.
With dAC.0 and dAC.1 the analogue output can be easily scaled.
▶
It must be ensured that the analogue output is not loaded too heavily, otherwise the
output value can be corrupted and the current supply of the instrument increases
correspondingly.
Loads up to approx. 10 kΩ are harmless.
⇒
If the display exceeds the value set with dAC.1, then 1 V will be output.
⇒
If the display drops below the value set with dAC.0, then 0 V will be output.
⇒
In the event of an error (Err.1, Err.2, ----, etc.) an analogue signal slightly over 1 V will
be output.
