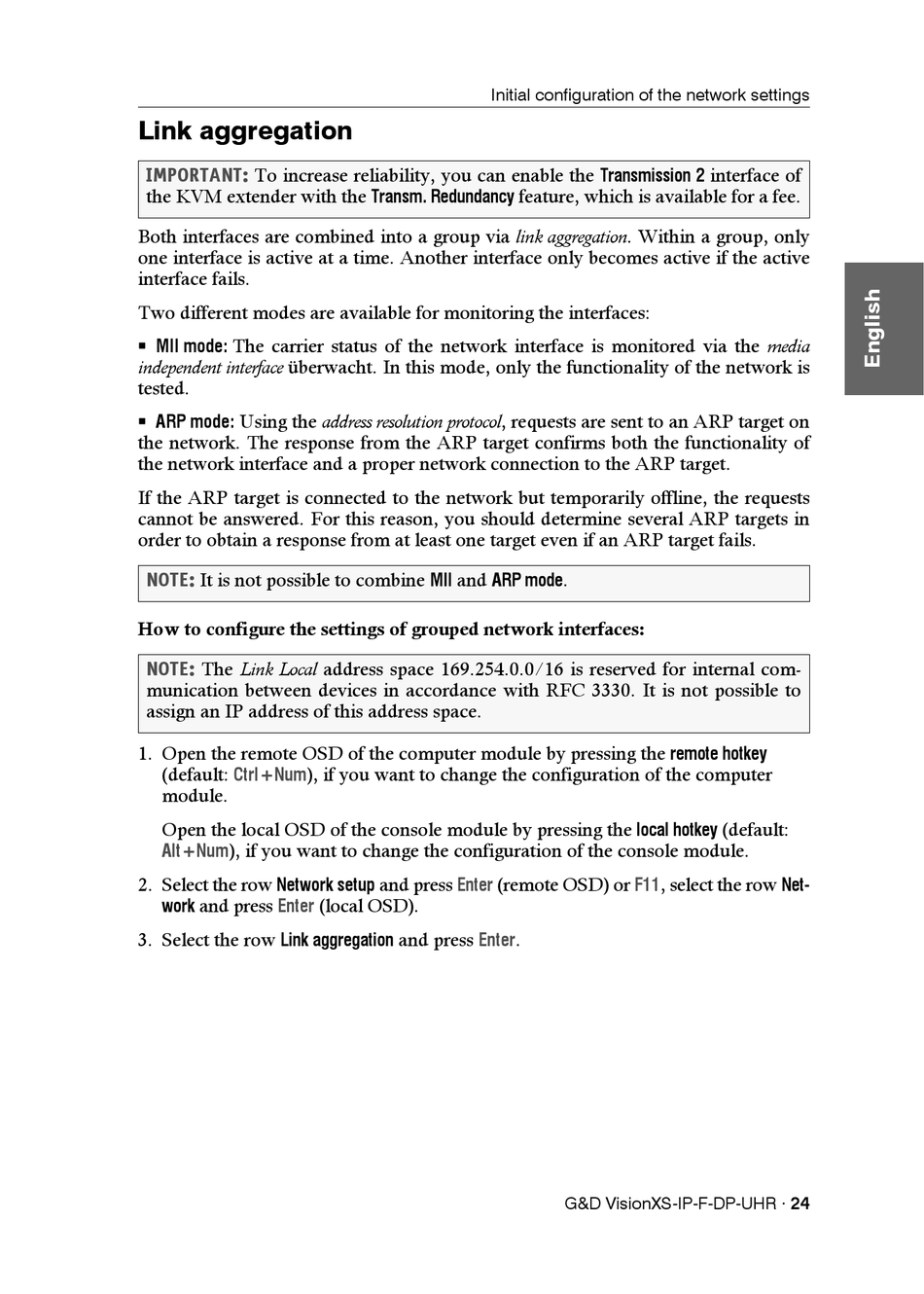

Link aggregation

IMPORTANT: To increase reliability, you can enable the
the KVM extender with the
Both interfaces are combined into a group via link aggregation. Within a group, only
one interface is active at a time. Another interface only becomes active if the active
interface fails.
Two different modes are available for monitoring the interfaces:
 MII mode: The carrier status of the network interface is monitored via the media
independent interface überwacht. In this mode, only the functionality of the network is
tested.
Using the address resolution protocol, requests are sent to an ARP target on
 ARP mode:
the network. The response from the ARP target confirms both the functionality of
the network interface and a proper network connection to the ARP target.
If the ARP target is connected to the network but temporarily offline, the requests
cannot be answered. For this reason, you should determine several ARP targets in
order to obtain a response from at least one target even if an ARP target fails.
NOTE: It is not possible to combine
How to configure the settings of grouped network interfaces:
NOTE:
The Link Local address space 169.254.0.0/16 is reserved for internal com-
munication between devices in accordance with RFC 3330. It is not possible to
assign an IP address of this address space.
1. Open the remote OSD of the computer module by pressing the
(default: ), if you want to change the configuration of the computer
Ctrl+Num
module.
Open the local OSD of the console module by pressing the
), if you want to change the configuration of the console module.
Alt+Num
2. Select the row
Network setup
work and press Enter
3. Select the row Link aggregation
Initial configuration of the network settings
Transm. Redundancy
and
MII ARP mode
and press
Enter
(local OSD).
and press Enter
Transmission 2
feature, which is available for a fee.
.
remote hotkey
local hotkey
(remote OSD) or , select the row
F11
.
