Appendix | Dimensional Drawings and Notes on the Accessories
A 2

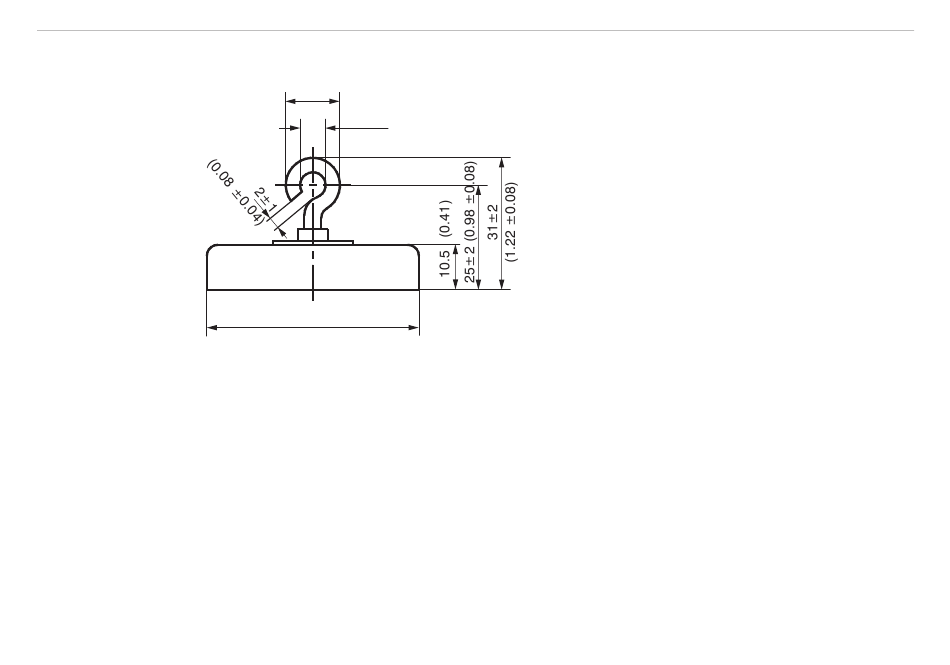

Fig. 12 Magnetic holder MH1 - WDS, dimensions in mm
(inches)
wireSENSOR, Z60-M / P96-M / P115-M / P200-M
Dimensional Drawings and Notes on the Accessories
13 ±1 (0.51 ±0.04)
6±0.5 (0.24 ±0.02)
ø50 (1.97 dia.)
Installation instructions for magnetic holder
MH1 - WDS
- Vertical pull-off force on plane St 37 plate of ap-
prox. 18 kg at 20 °C.
- The displacement force is about 20 ... 35 % of
the holding force, depending on the nature of
the surface.
- Temperature range operation: -40 ... +120 °C
(-40 °F ... +248 °F)
Temperature coefficient of holding force (revers-
ible): -4 % per 10 °C at 20 °C
- Strong vibrations can cause "wandering" if the
lateral pull is too great.
- Weight approx. 100 g
Page 51
