Installation and Assembly
If a measuring wire
is stretched in the
area where operating
personnel is located,
injuries may occur.
Do not twist the mea-
suring wire!

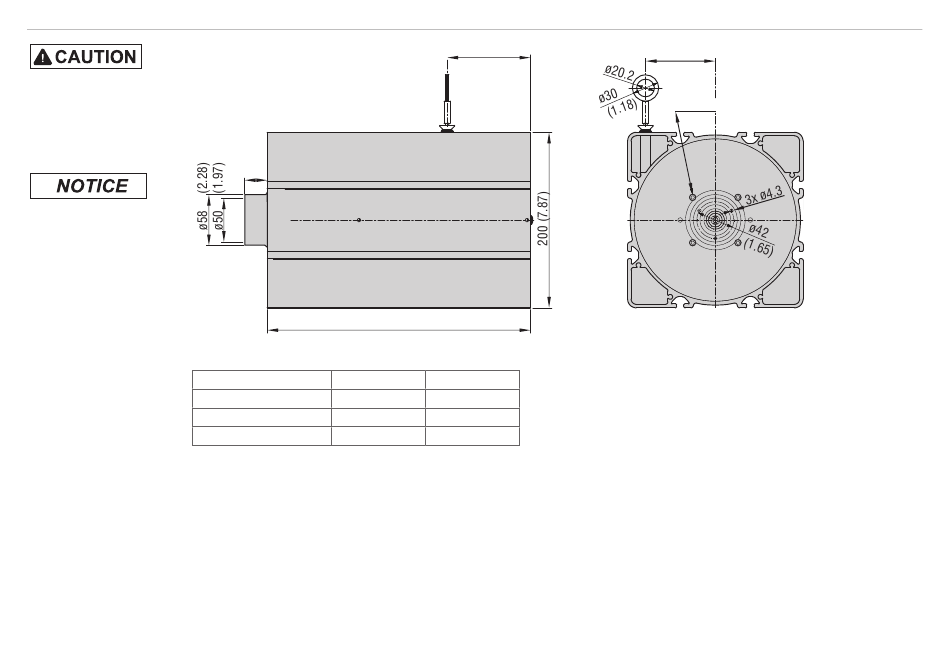

Fig. 7 WDS-P200-M series, dimensions in mm (inches)
Measuring range
wireSENSOR, Z60-M / P96-M / P115-M / P200-M
25.7 (1.01)
A
A
30000 268 (10.6)
40000 300 (11.8)
50000 333.5 (13.1)
B
B
75 (2.95)
95 (3.74)
95 (3.74)
79.5 (3.13)
4 x M4
