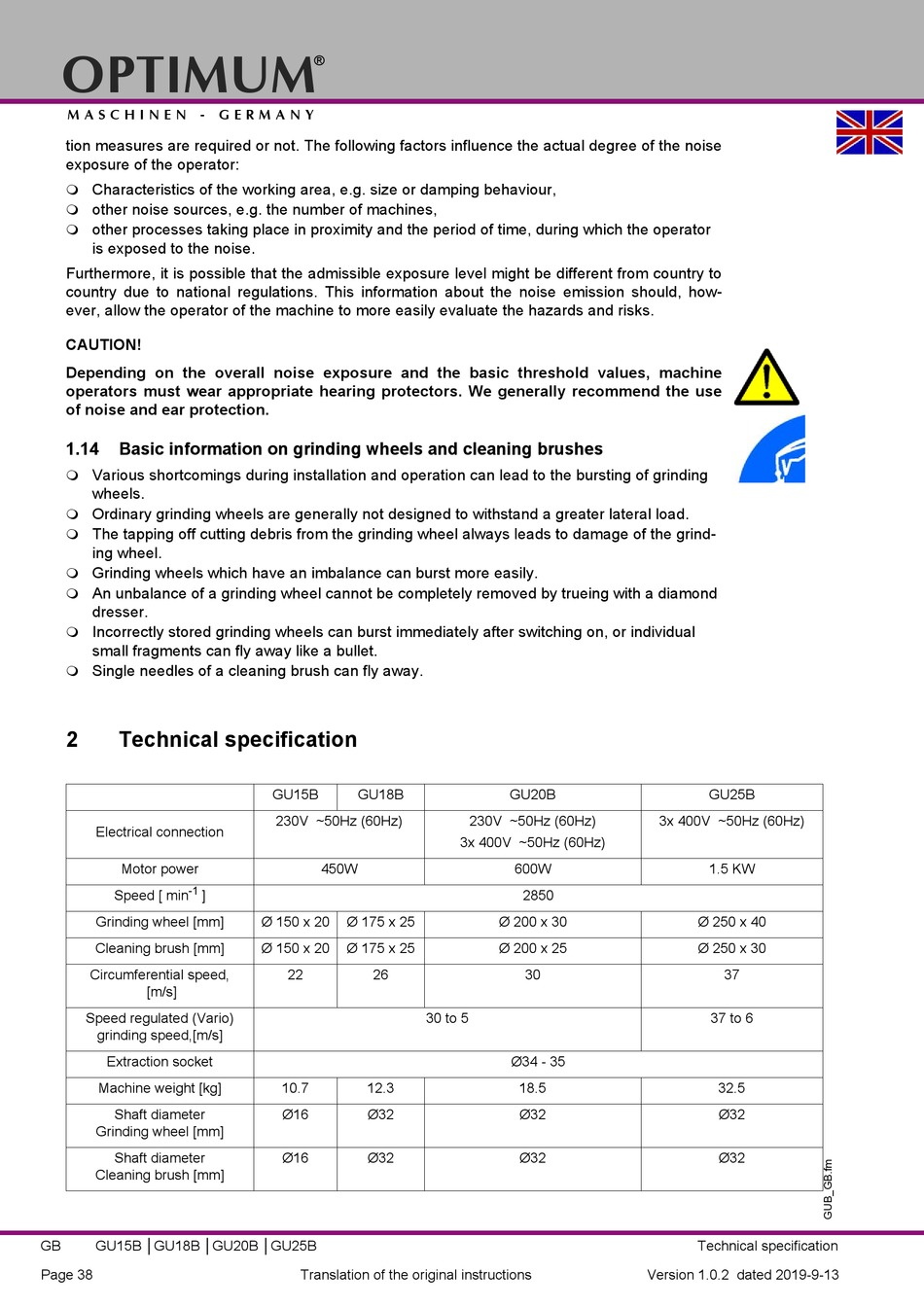

tion measures are required or not. The following factors influence the actual degree of the noise
exposure of the operator:
Characteristics of the working area, e.g. size or damping behaviour,
other noise sources, e.g. the number of machines,
other processes taking place in proximity and the period of time, during which the operator
is exposed to the noise.
Furthermore, it is possible that the admissible exposure level might be different from country to
country due to national regulations. This information about the noise emission should, how-
ever, allow the operator of the machine to more easily evaluate the hazards and risks.
CAUTION!
Depending on the overall noise exposure and the basic threshold values, machine
operators must wear appropriate hearing protectors. We generally recommend the use
of noise and ear protection.
1.14
Basic information on grinding wheels and cleaning brushes
Various shortcomings during installation and operation can lead to the bursting of grinding
wheels.
Ordinary grinding wheels are generally not designed to withstand a greater lateral load.
The tapping off cutting debris from the grinding wheel always leads to damage of the grind-
ing wheel.
Grinding wheels which have an imbalance can burst more easily.
An unbalance of a grinding wheel cannot be completely removed by trueing with a diamond
dresser.
Incorrectly stored grinding wheels can burst immediately after switching on, or individual
small fragments can fly away like a bullet.
Single needles of a cleaning brush can fly away.
2
Technical specification
Electrical connection
Motor power
-1
Speed [ min
]
Grinding wheel [mm]
Cleaning brush [mm]
Circumferential speed,
[m/s]
Speed regulated (Vario)
grinding speed,[m/s]
Extraction socket
Machine weight [kg]
Shaft diameter
Grinding wheel [mm]
Shaft diameter
Cleaning brush [mm]
GB
GU15B │GU18B │GU20B │GU25B
Page 38
®
GU15B
GU18B
230V ~50Hz (60Hz)
450W
Ø 150 x 20
Ø 175 x 25
Ø 150 x 20
Ø 175 x 25
22
26
30 to 5
10.7
12.3
Ø16
Ø32
Ø16
Ø32
Translation of the original instructions
GU20B
230V ~50Hz (60Hz)
3x 400V ~50Hz (60Hz)
600W
2850
Ø 200 x 30
Ø 200 x 25
30
Ø34 - 35
18.5
Ø32
Ø32
GU25B
3x 400V ~50Hz (60Hz)
1.5 KW
Ø 250 x 40
Ø 250 x 30
37
37 to 6
32.5
Ø32
Ø32
Technical specification
Version 1.0.2 dated 2019-9-13
