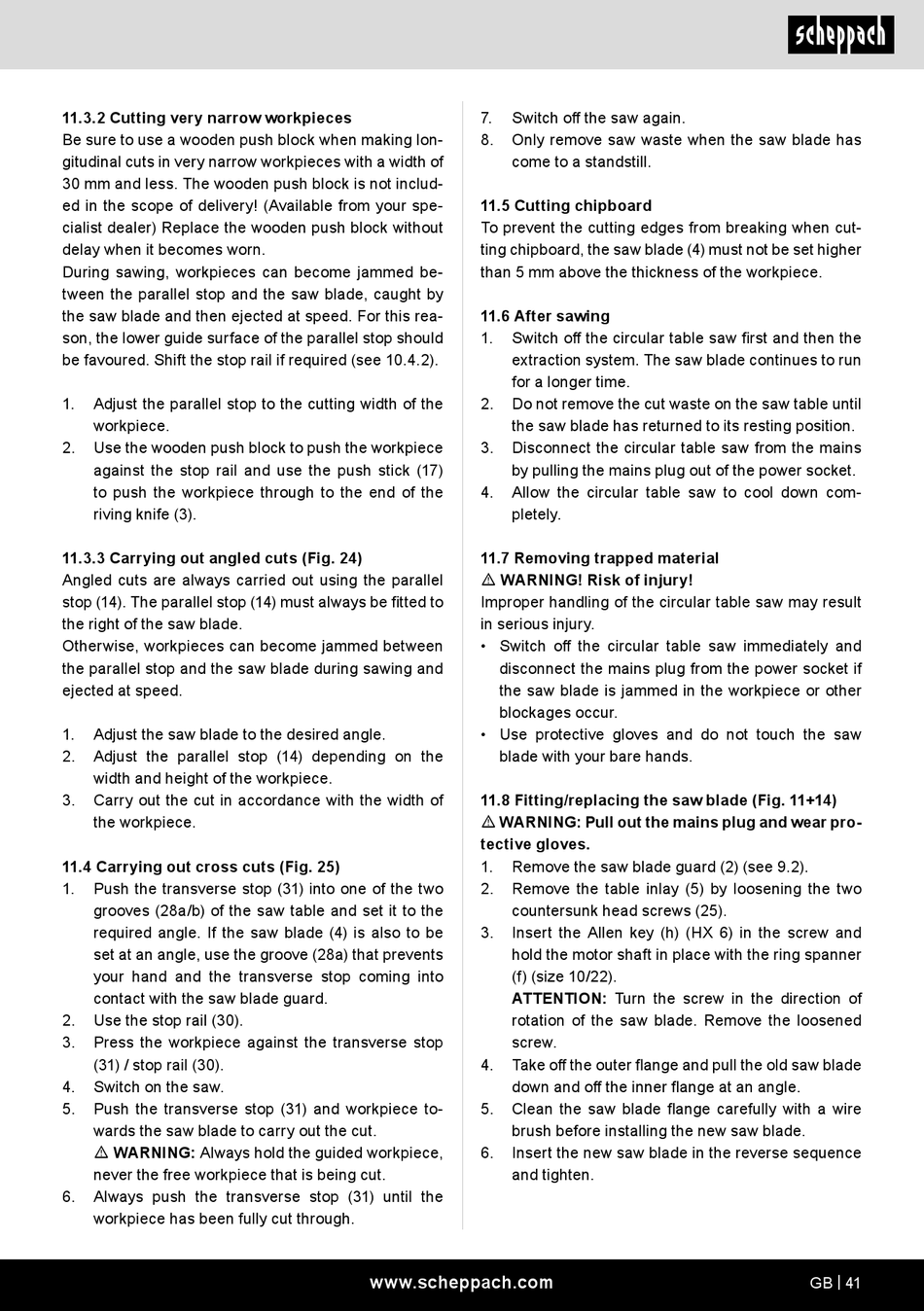

11.3.2 Cutting very narrow workpieces
Be sure to use a wooden push block when making lon-
gitudinal cuts in very narrow workpieces with a width of
30 mm and less. The wooden push block is not includ-
ed in the scope of delivery! (Available from your spe-
cialist dealer) Replace the wooden push block without
delay when it becomes worn.
During sawing, workpieces can become jammed be-
tween the parallel stop and the saw blade, caught by
the saw blade and then ejected at speed. For this rea-
son, the lower guide surface of the parallel stop should
be favoured. Shift the stop rail if required (see 10.4.2).
1. Adjust the parallel stop to the cutting width of the
workpiece.
2. Use the wooden push block to push the workpiece
against the stop rail and use the push stick (17)
to push the workpiece through to the end of the
riving knife (3).
11.3.3 Carrying out angled cuts (Fig. 24)
Angled cuts are always carried out using the parallel
stop (14). The parallel stop (14) must always be fitted to
the right of the saw blade.
Otherwise, workpieces can become jammed between
the parallel stop and the saw blade during sawing and
ejected at speed.
1. Adjust the saw blade to the desired angle.
2. Adjust the parallel stop (14) depending on the
width and height of the workpiece.
3. Carry out the cut in accordance with the width of
the workpiece.
11.4 Carrying out cross cuts (Fig. 25)
1. Push the transverse stop (31) into one of the two
grooves (28a/b) of the saw table and set it to the
required angle. If the saw blade (4) is also to be
set at an angle, use the groove (28a) that prevents
your hand and the transverse stop coming into
contact with the saw blade guard.
2. Use the stop rail (30).
3. Press the workpiece against the transverse stop
(31) / stop rail (30).
4. Switch on the saw.
5. Push the transverse stop (31) and workpiece to-
wards the saw blade to carry out the cut.
m WARNING: Always hold the guided workpiece,
never the free workpiece that is being cut.
6. Always push the transverse stop (31) until the
workpiece has been fully cut through.
7. Switch off the saw again.
8. Only remove saw waste when the saw blade has
come to a standstill.
11.5 Cutting chipboard
To prevent the cutting edges from breaking when cut-
ting chipboard, the saw blade (4) must not be set higher
than 5 mm above the thickness of the workpiece.
11.6 After sawing
1. Switch off the circular table saw first and then the
extraction system. The saw blade continues to run
for a longer time.
2. Do not remove the cut waste on the saw table until
the saw blade has returned to its resting position.
3. Disconnect the circular table saw from the mains
by pulling the mains plug out of the power socket.
4. Allow the circular table saw to cool down com-
pletely.
11.7 Removing trapped material
m WARNING! Risk of injury!
Improper handling of the circular table saw may result
in serious injury.
• Switch off the circular table saw immediately and
disconnect the mains plug from the power socket if
the saw blade is jammed in the workpiece or other
blockages occur.
• Use protective gloves and do not touch the saw
blade with your bare hands.
11.8 Fitting/replacing the saw blade (Fig. 11+14)
m WARNING: Pull out the mains plug and wear pro-
tective gloves.
1. Remove the saw blade guard (2) (see 9.2).
2. Remove the table inlay (5) by loosening the two
countersunk head screws (25).
3. Insert the Allen key (h) (HX 6) in the screw and
hold the motor shaft in place with the ring spanner
(f) (size 10/22).
ATTENTION: Turn the screw in the direction of
rotation of the saw blade. Remove the loosened
screw.
4. Take off the outer flange and pull the old saw blade
down and off the inner flange at an angle.
5. Clean the saw blade flange carefully with a wire
brush before installing the new saw blade.
6. Insert the new saw blade in the reverse sequence
and tighten.
