10.1 Connectivity module (item 70620)

The SmartCoop connectivity module connects the control unit to the local WLAN, and
allows all functions to be programmed and monitored via the "Kerbl App".
The WLAN provides the SmartCoop with Internet access. This allows unrestricted
access to the system, in real time and from anywhere.
Important: The connectivity module's connection cable must not be extended.

10.1.1 Installation

For the individual steps, please refer to the module's
installation instructions.
Suitable for
LED coop lighting (item 70621),
Signal lamp (item 70623),
Coop ventilation (item 70625, 70626),
intermediate socket (item 70628)
LED coop lighting (item 70621),
Signal lamp (item 70623),
Coop ventilation (item 70625, 70626),
intermediate socket (item 70628)
Feed dispenser with level sensor
(item 70662)
Feed dispenser with level sensor
(item 70662)
Cable pull for chicken door (item
70640), drinker heating with level
sensor (item 70652), chicken door
(item 70645)
Cable pull for chicken door (item
70640), drinker heating with level
sensor (item 70652), chicken door
(item 70645)

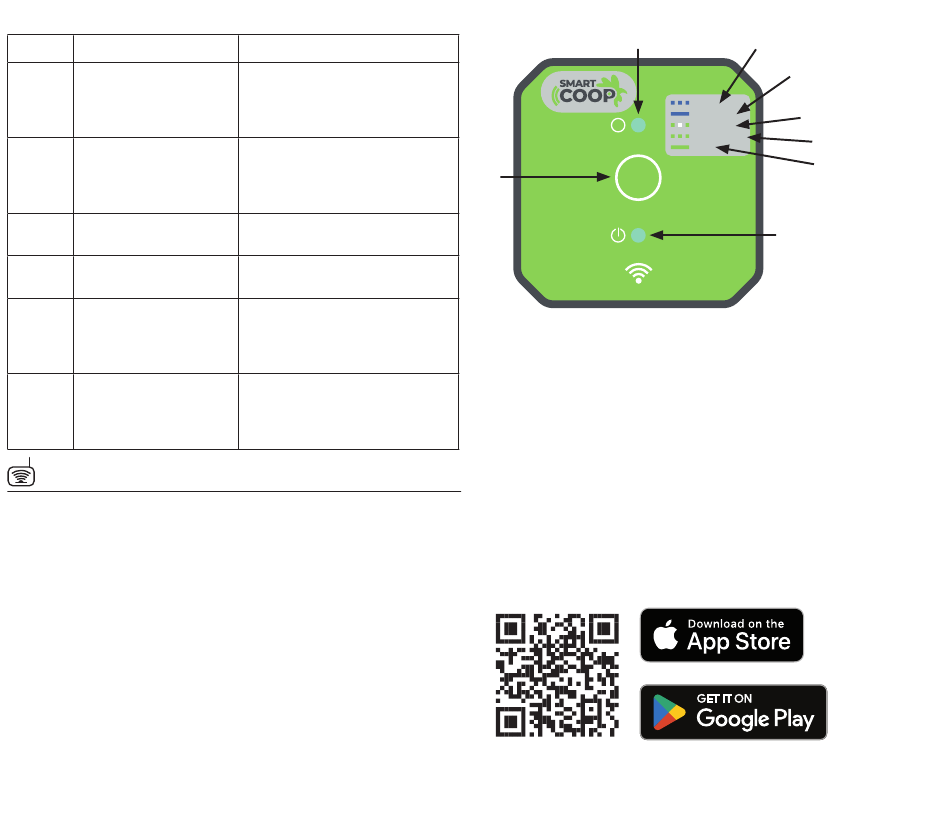

10.1.2 Control elements

7
i
1
Press
WLAN
1. PRESS button
2. BT scan The device is ready to connect itself to the App on
the Smartphone
3. BT connected The device is connected to the App on the Smartphone
4. WLAN search The device is searching for a WLAN network
5. WLAN connected The device is connected to a WLAN network,
but offline at present
6. Online The device is connected to a WLAN network, and is online
7. Status LED
8. Power LED

10.1.3 Configuration

10.1.3.1 Installation of the Kerbl App

Install the "Kerbl App" app from the Google Playstore or the Apple Appstore. Create
your user account and log in.
42
2
3
BT scan
4
BT connected
WLAN search
WLAN connected
5
Online
6
Connect (1 s)
Reset (5 s)
